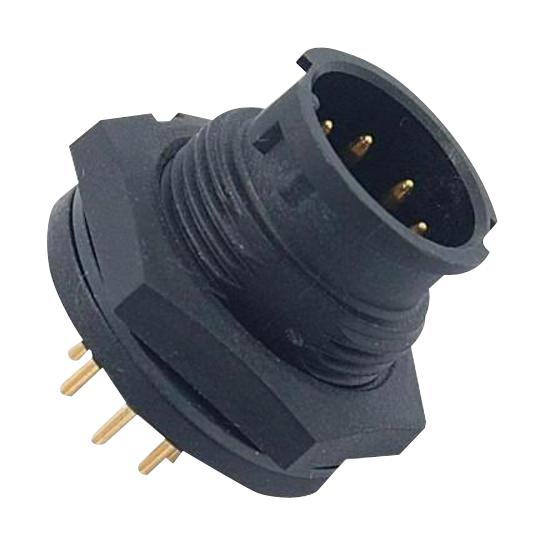

MULTICOMP-PRO 2CT3002W05300 Waterproof Circular Connector
The 2CT3002-W05300 is a 5-way waterproof circular connector rated IP67, ideal for industrial applications requiring reliable water and dust protection. It features a durable black nylon body with a high-quality brass male pin plated in nickel, ensuring excellent corrosion resistance. This connector supports solder termination and is designed to be mounted on panels with a maximum thickness of 4mm, providing secure connectivity in harsh environments. It withstands immersion in water up to 1 meter for 30 minutes, operates in temperatures from -40°C to +100°C, and has a dielectric withstand voltage of 500VAC for one minute. Built for durability, it is suitable for demanding industrial, automation, and equipment connections, offering reliable performance and long-term stability.
MULTICOMP-PRO 2CT3002W05300 Waterproof Circular Connector Specifications:
- Waterproof Rate: IP67, Immersed in 1M water for 30 minutes
- Electrical Characteristics: Temperature Range from -40°C to +100°C, Current Rating 156A, Dielectric Withstanding Voltage 500VAC for One Minute
- Material: Nylon + 33% GF body, Brass male pins with nickel plating, EPDM gasket, Nylon + 33% GF nut, Liquid glue for sealing
- Dimensions: Body length 14.8mm, recommended panel cut-out for mounting, Pin length approximately 6 inches
- Physical: No specified overall dimensions but suitable for panel thickness Max of 4mm, operating in harsh environments with corrosion resistance
- Additional Info: Supports solder termination, suitable for industrial applications, testing includes salt spray durability
Buy the Buy Multicomp Waterproof Circular Connector Part Number 2CT3002W05300 Online
Secure your industrial wiring with the waterproof circular connector designed for tough environments. Featuring IP67 water and dust protection, a robust nylon body, and brass pins, this 5-way connector ensures excellent durability and reliable performance. Suitable for panel mounting with a maximum 4mm thickness, it withstands immersion in water up to 1 meter for 30 minutes. Operating from -40°C to +100°C, it supports solder termination and is ideal for automation, industrial machinery, and outdoor equipment. Order online today for fast delivery and dependable connectivity.
Order your Multicomp waterproof circular connector Part Number 2CT3002W05300 today and ensure your industrial projects have reliable, water-resistant connectivity solutions.
