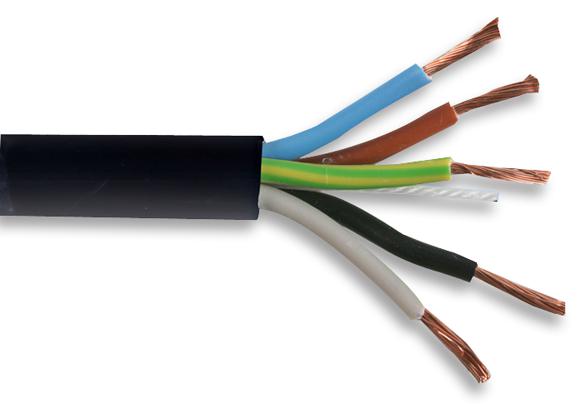

MULTICOMP PRO PP3185Y250MMBLK Flexible Power Cable
This is a multicore flexible power cable suitable for domestic, office, and light portable appliances. Compliant with BS EN 50525-2-11 standards and RoHS, it features PVC insulation and sheath, multiple core configurations, and is rated for 300/500V with temperature operation between +60°C to +70°C. The cable supports various conductor sizes, has specific bending radius, and comes in black or white colors. Ideal for use in light appliances, with detailed physical and electrical specifications ensuring safety, flexibility, and durability in indoor applications.
MULTICOMP PRO PP3185Y250MMBLK Flexible Power Cable Specifications:
- Voltage Rating: 300/500V
- Temperature Rating: Flexed: +60°C to +70°C
- Min. Bending Radius: 8 x overall diameter
- Conductor: Class 5 flexible stranded copper
- Insulation: PVC Type TI2 according to BS EN 50363
- Sheath: PVC Type TM2 according to BS EN 50363
- Number of cores: 2, 3, 4, 5 configurations
- Core identification: Blue & Brown (2 core), Blue, Brown & Green/Yellow (3 core), etc.
- Sheath Colour: White & Black
- Nominal Cross Sectional Area: 0.75mm² to 25mm²
- Max. Current: 6A to 25A depending on size
- Max. Mass Supportable: 3kg to 5kg
- Dimensions: Diameter ranges from 0.6mm to 0.8mm per conductor, overall diameter varies
- Resistance at 20°C: 7.98Ω to 26Ω
- De-Rating Factors for temperatures up to 60°C
- Conductor resistance: 26Ω to 7.98Ω at 20°C
Buy the Multicomp Series Flexible Cable: PP3185Y250MMBLK
Purchase the multicore flexible power cable designed for household, office, and light appliances online today. Featuring PVC insulation and sheath for safety and flexibility, this cable supports multiple core configurations, with core identification, high current capacity, and temperature resistance of up to +70°C. Suitable for indoor use, it is RoHS compliant and suited for applications requiring reliable electrical performance. Order now for fast delivery and ensure your indoor power needs are met with high-quality, durable cables.
Get Multicomp Series Flexible Cable PP3185Y250MMBLK today—designed for reliable indoor power connections in domestic and office environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP3185Y250MMBLK?
You can click on the BUY or RFQ button to purchase PP3185Y250MMBLK from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP3185Y250MMBLK?
You can download the PP3185Y250MMBLK datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP3185Y250MMBLK?
MULTICOMP PRO
