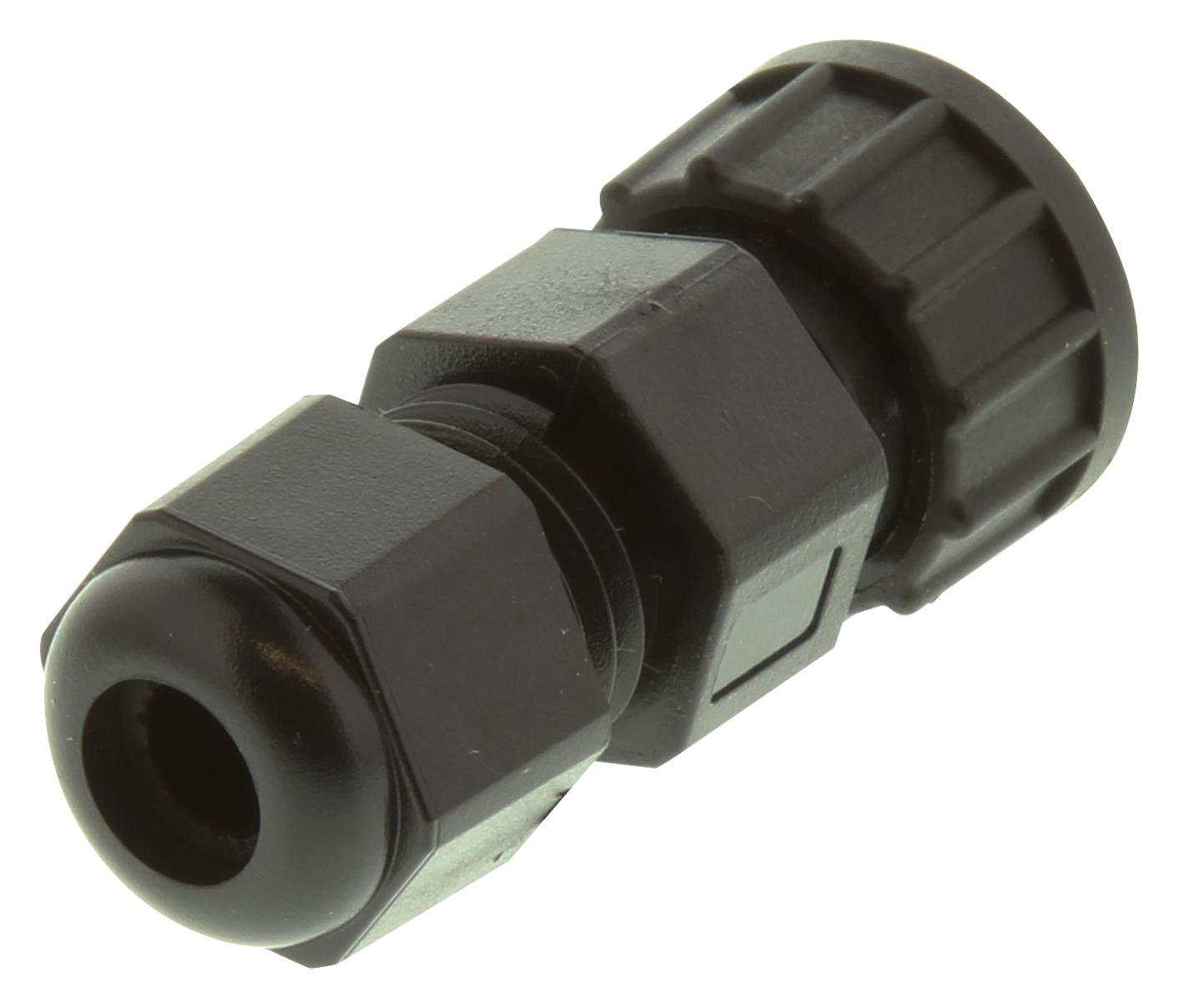

MULTICOMP-PRO 2CT3032W04300 female connector
The 2CT3032-W04300 from Multicomp is a 4-way, 5A female connector designed for field wiring applications. It features solder pin termination and an IP67-rated circular in-line design with a locking mechanism for secure mating. The connector body is made of nylon with glass fiber reinforcement and polybutylene terephthalate. Its copper alloy pin contacts are gold-plated, ensuring reliable electrical connection with low contact resistance (≤30mΩ). The insulation resistance exceeds 100 MΩ at 500V DC, and the connector is rated for 500 mating cycles. Operating temperature ranges from -40°C to +100°C. Suitable for wire gauges from 22AWG to 24AWG with a cable outer diameter of 4mm to 6.5mm. It offers durability, corrosion resistance, and is ideal for industrial applications.
MULTICOMP-PRO 2CT3032W04300 female connector Specifications:
- Mating Style: Lock Type
- Contact Gender: Female pin
- Material Contact: Copper Alloy, Gold Plated
- Material Connector Body: Nylon+GF, PBT
- Cable OD: 4mm to 6.5mm
- Contact Resistance: ≤30mΩ (without cable)
- Insulation Resistance: >100 MΩ at DC 500V
- Durability: 500 cycles Min.
- Breakdown Voltage: BAC 500V/1 minute
- Corrosion: 48 hours salt spray contact
- Temperature Range: -40°C to +100°C
- Waterproof Rate: IP67 (immersed in 1m water for 30 minutes)
Buy the Multicomp 2CT3032-W04300 – Reliable Industrial Female Connectors for Field Wiring
Purchase the Multicomp 2CT3032-W04300 online today and enjoy a high-quality, IP67-rated female connector that ensures reliable, corrosion-resistant performance. With a robust nylon and glass fiber construction, gold-plated copper contacts, and compatibility with 22-24AWG wires, this connector is ideal for your industrial and field wiring needs. Its lock mechanism guarantees secure mating, while its operating temperature range of -40°C to +100°C makes it versatile for various environments. Buy online now for quick delivery and peace of mind.
Get Multicomp 2CT3032-W04300 today—built for precision, durability, and secure electrical connections in industrial environments.
