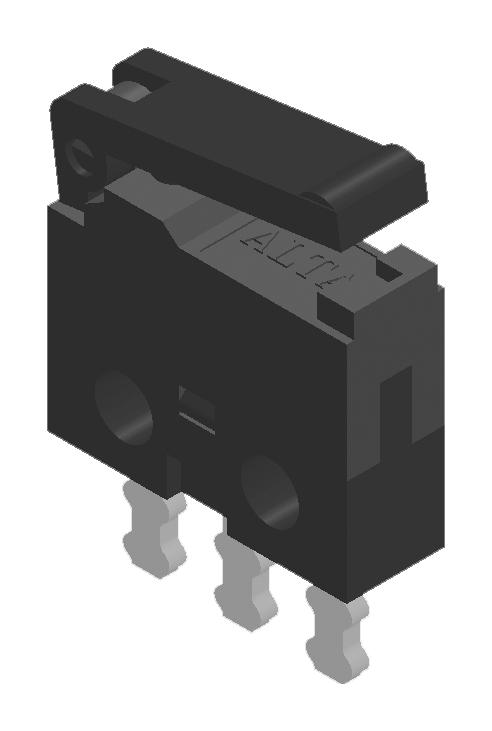

MULTICOMP PRO MP000802 Micro Switch
This through-hole snap action microswitch features a hinge lever, 0.5A, 30V DC ratings, and multiple circuit options including SPDT, SPST-NC, and SPST-NO. Designed for reliable switching in small electronic and industrial applications, it offers high durability with 100,000 mechanical cycles and 50,000 electrical cycles. Suitable for mapping devices, portable electronics, and audio equipment, it operates effectively within -40°C to +85°C temperatures. Its compact design features various terminal configurations with precise operating characteristics like 0.5N operating force and 0.03N release force.
MULTICOMP PRO MP000802 Micro Switch Specifications:
- Contact Rating: 0.5A, 30V DC
- Mechanical Durability: 100,000 cycles
- Electrical Durability: 50,000 cycles
- Contact Resistance: > 100mΩ max
- Insulation Resistance: 100MO min (at 500V DC)
- Dielectric Strength: 250V AC across terminals for 1 min
- Operating Temperature: -40°C to +85°C
- Operating Force: 0.5N max
- Release Force: 0.03N min
- Over Travel: 0.3mm min
- Movement Differential: 0.7mm max
- Operating Position: 6.7mm +0.5mm
- Free Position: 8mm max
- Pretravel: 1.8mm max
- Terminal Type: Uneven Pitch
- Dimensions: Millimetres as per datasheet diagrams
Buy the Farnell MP000802 – Reliable Microswitch for Industrial Applications
Enhance your electronic or industrial designs with this high-quality hinge lever microswitch, rated at 0.5A, 30V DC. Its robust construction ensures durability for up to 100,000 mechanical cycles. Featuring various circuit configurations including SPDT, SPST-NC, and SPST-NO, it is suitable for mapping devices, portable electronics, and audio equipment. Operating effectively between -40°C and +85°C, this switch offers precise operating force, pretravel, and over-travel distances, ensuring consistent and reliable operation in demanding environments.
Buy Farnell MP000802 now and experience unmatched reliability and performance for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000802?
You can click on the BUY or RFQ button to purchase MP000802 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000802?
You can download the MP000802 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000802?
MULTICOMP PRO
