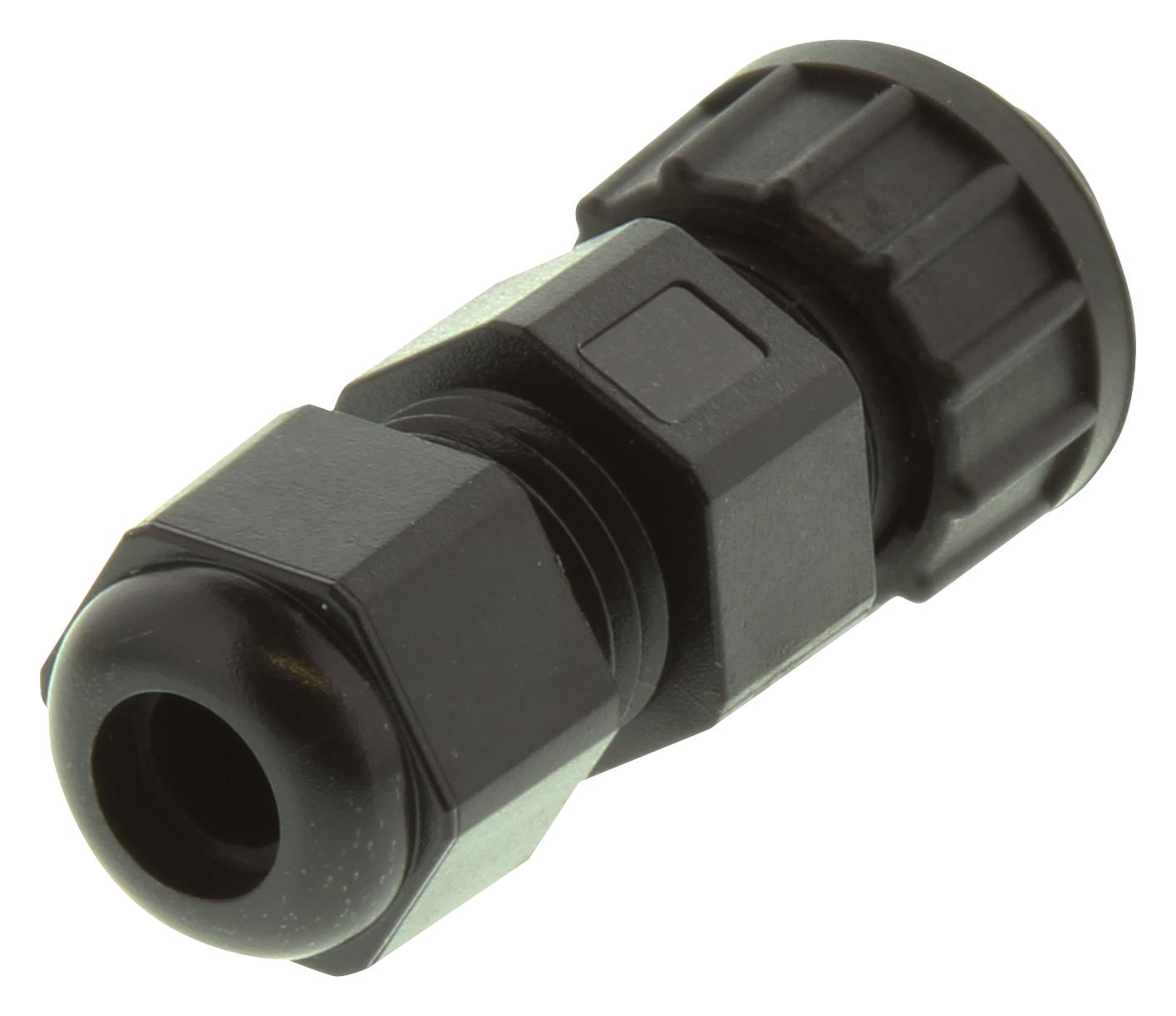

MULTICOMP-PRO 2CT3032W04400 female connector
The 2CT3032-W04400 from Multicomp is a 4-way female connector designed for field wiring applications. It features solder pin contacts that are gold-plated copper alloy, housed in a durable nylon + GF and PBT connector body. The lock-type mating style ensures secure connections, compatible with cable diameters ranging from 4mm to 6.5mm, and supports at least 500 mating cycles. Its electrical specifications include a contact resistance of less than or equal to 30 milliohms (without cable), an insulation resistance of at least 100 megaohms at DC 500V, and a breakdown voltage of over 500V AC maintained for 1 minute. The connector withstands salt spray corrosion testing for 48 hours, operates effectively from -40°C to +100°C, and is rated for a 10A current with recommended cable sizes of 20AWG to 18AWG. It also offers an IP67 waterproof rating, making it suitable for industrial environments.
MULTICOMP-PRO 2CT3032W04400 female connector Specifications:
- Mating Style: Lock Type
- Contact Gender: Female pin
- Material Contact: Copper Alloy, Gold Plated
- Material Connector Body: Nylon+GF, PBT
- Cable OD: 4mm to 6.5mm
- Contact Resistance: ≤30mΩ (without cable)
- Insulation Resistance: ≥100MΩ at DC 500V
- Durability: 500 cycles min.
- Breakdown Voltage: BAC 500V/1 minute
- Corrosion: 48 hours salt spray contact
- Temperature Range: -40°C to +100°C
- Waterproof Rate: IP67
- Rated Current: 10A
- Cable Size: 20AWG to 18AWG
Buy the Buy multicomp Field Wiring Female Connector Part Number 2CT3032W04400 Online
Secure your electrical connections with the multicomp 2CT3032-W04400 female connector, featuring gold-plated contacts, IP67 waterproof rating, and compatibility with 20-18AWG cables. Ideal for industrial wiring, it ensures durability with at least 500 mating cycles and withstands harsh conditions from -40°C to +100°C. Its lock-type mating style guarantees a reliable, stable connection, making it perfect for demanding applications requiring sealed and corrosion-resistant components. Purchase online now for superior performance and peace of mind in your electrical projects.
Buy multicomp 2CT3032-W04400 female connector now and experience reliable industrial wiring with waterproof and dustproof design, supporting up to 10A load and durable for demanding environments.
