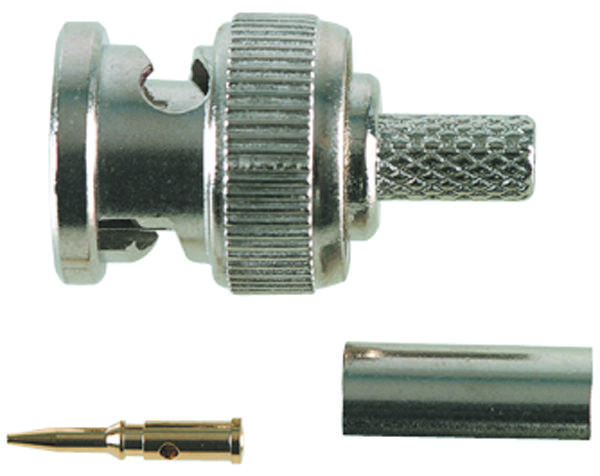

MULTICOMP PRO MC23597 RF Coaxial BNC Connector
The BNC straight plug is a reliable RF coaxial connector designed for cable applications, offering low VSWR and durable construction. Suitable for RF communication systems, this connector features a brass body with nickel plating, a gold-plated brass center contact, and PTFE insulation for high performance. It supports frequencies up to 4 GHz, with a maximum VSWR of 1.3, and is compatible with RG179U or similar cables. Operating between -20°C and 80°C, it ensures stable connections in industrial and communication settings, providing efficient signal transmission and robust environmental resistance.
MULTICOMP PRO MC23597 RF Coaxial BNC Connector Specifications:
- Frequency Range: DC-4 GHz
- Nominal Impedance: 50 Ohms
- Maximum VSWR: 1.3
- Body Material: Brass Nickel Plated
- Centre Contact Material: Brass Gold Plated
- Insulation: PTFE
- Crimp Ferrule Material: Brass Nickel Plated
- Crimp Size Required: 0.95 sq. (Solder/Crimp)
- Cable Compatibility: RG179U or Similar Style Cable
- Operating Temperature Range: -20°C to +80°C
- Crimp Tool: 0.95 (0.037) SQ. Crimp Tool
- Environmental Resistance: Designed for industrial and RF applications
Buy the Multicomp Reliable BNC Plug for RF Communication and Industrial Applications
Enhance your RF systems with the reliable Multicomp BNC straight plug, engineered for excellent impedance matching, durable brass construction, and high-quality PTFE insulation. Designed for use with RG179U or similar coaxial cables, it supports frequency operation up to 4 GHz with a maximum VSWR of 1.3, ensuring minimal signal loss. Its nickel-plated body and gold-plated contact provide corrosion resistance and longevity. Suitable for industrial, communications, and testing applications, this connector guarantees stable, high-performance signal transmission in demanding environments. Buy online now for quick delivery and trusted quality.
Order your Multicomp Series MC23597 BNC straight plug today and ensure reliable RF connections for your communication projects.
