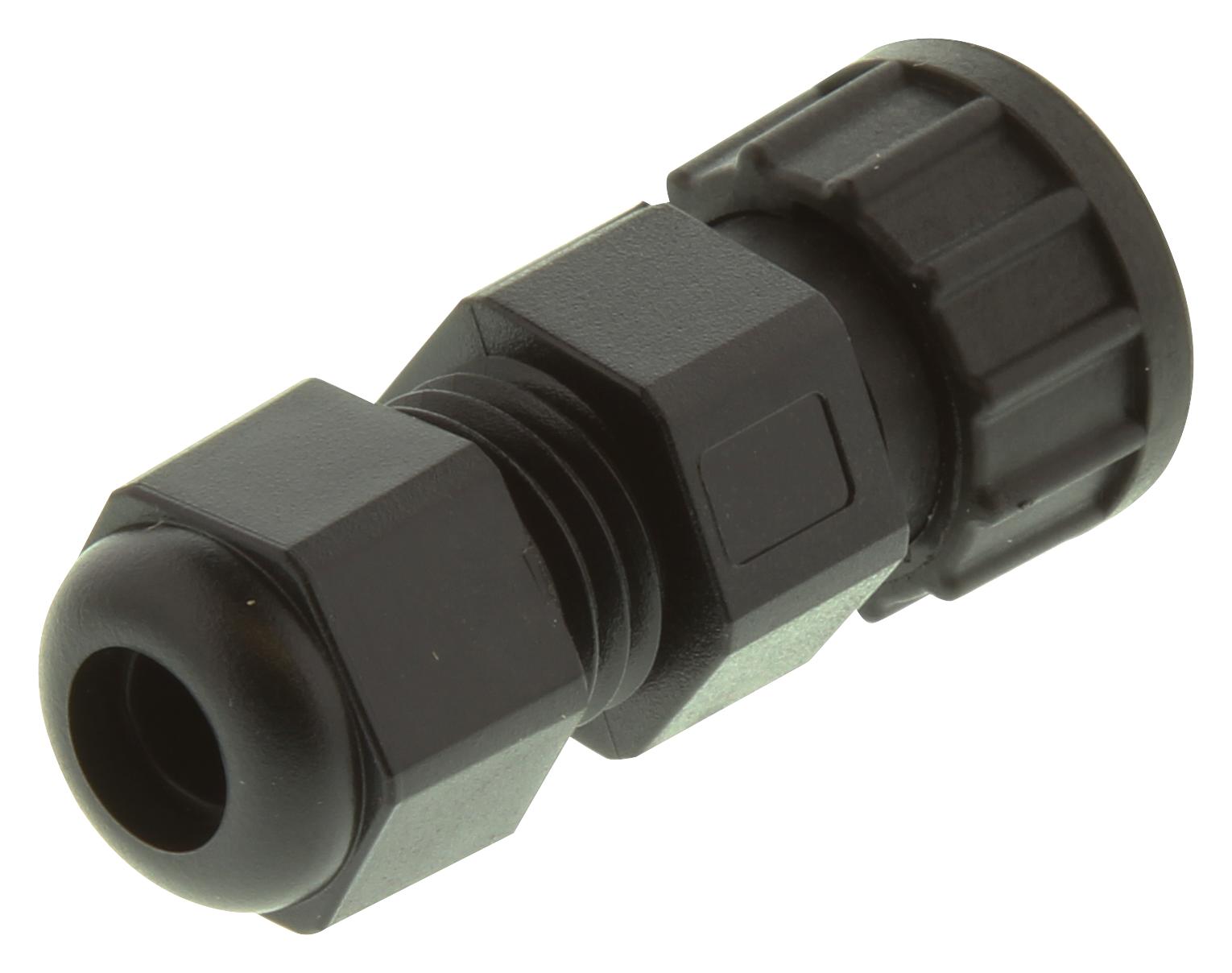

MULTICOMP PRO 2CT3032W07300 Industrial Female Connector
The 2CT3032-W07300 from Multicomp is a 7-way, 5A circular inline female connector with solder pin termination, designed for field wiring applications. It features an IP67 rated sealing for durability against dust and water ingress. The connector body is made from nylon with glass fiber reinforcement and polybutylene terephthalate, providing robust mechanical strength. It has a contact resistance of 30 milliohms or less, and an insulation resistance exceeding 100 megaohms at 500V DC. The connector is rated for up to 500 mating cycles and operates within a temperature range of -40°C to +100°C. Copper alloy pin contacts are gold plated for reliable conductivity and corrosion resistance, including testing in a 48-hour salt spray. It accommodates wire gauges from 22AWG to 24AWG with cable outer dimensions between 4mm and 6.5mm. Suitable for industrial applications, this connector is rated 4.6 out of 5 stars by users. A 12-month limited warranty applies. Please note that due to high market demand, delivery times may vary, and the product is exempt from discounts.
MULTICOMP PRO 2CT3032W07300 Industrial Female Connector Specifications:
- Mating Style: Lock Type
- Contact Gender: Female pin
- Material Contact: Copper Alloy, Gold Plated
- Material Connector Body: Nylon+GF, PBT
- Cable OD: 4mm to 6.5mm
- Contact Resistance: 30mΩ or less (without cable)
- Insulation Resistance: 100MΩ at DC 500V or higher
- Durability: 500 cycles minimum
- Breakdown Voltage: BAC 500V/1 minute
- Corrosion Resistance: 48 hours salt spray contact
- Temperature Range: -40°C to +100°C
- Waterproof Rate: IP67
Buy the multicomp U2073 – Reliable Industrial Female Connectors for Field Wiring
Order the multicomp U2073 7-way industrial female connector online today and enhance your electrical assembly with a reliable, sealed, and corrosion-resistant solution. Designed for field wiring, it supports wire gauges from 22 to 24 AWG and ensures durability in harsh environments. Made from high-quality nylon+GF and PBT, it provides excellent mechanical strength and IP67 water resistance. The gold-plated copper contacts ensure reliable conductivity even after hundreds of mating cycles. Secure your installations with this highly rated connector, backed by a 12-month warranty and prompt delivery options.
Buy multicomp U2073 7-way female connector with solder pin now and experience unmatched durability, corrosion resistance, and water proof performance.
