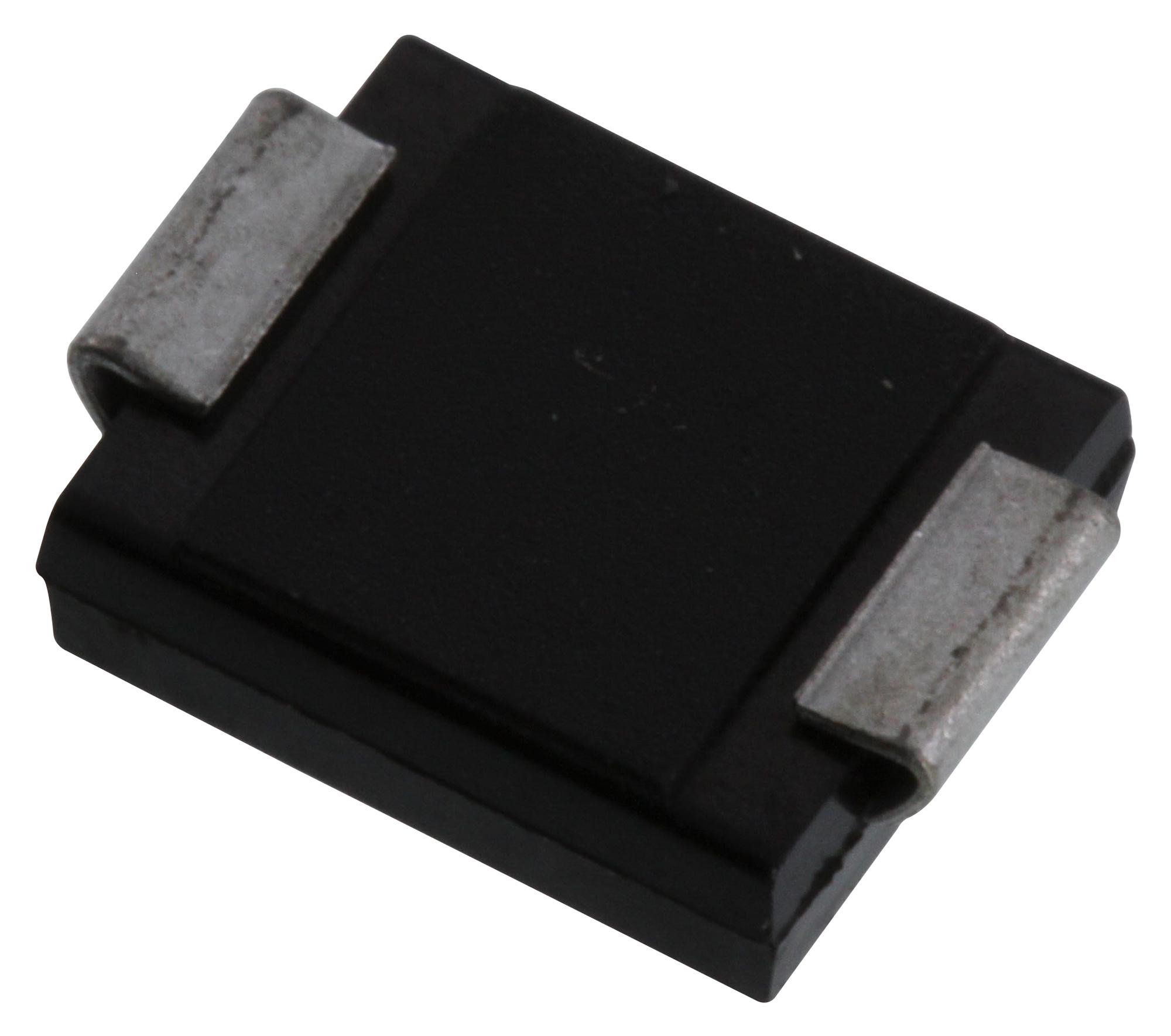

MULTICOMP PRO S3K Surface Mount Rectifier
This surface mount glass passivated rectifier features low reverse leakage current and low forward voltage drop, ideal for high-current applications up to 3.0A. It is RoHS compliant with a molded plastic case rated UL 94V-0, suitable for surface-mounted applications requiring high efficiency and reliability. Designed with a polarity indicator, it handles reverse voltages from 50V to 1000V, making it suitable for single-phase half-wave 60Hz resistive or inductive loads. Its compact design ensures easy mounting, robust performance, and high current capacity in various electronic circuits.
MULTICOMP PRO S3K Surface Mount Rectifier Specifications:
- Case: Molded Plastic with UL 94V-0 flammability rating
- Polarity: Color band denotes cathode
- Weight: 0.007 ounces, 0.21 grams
- Mounting position: Any
- Reverse Voltage: 50 to 1000 Volts
- Forward Current: 3.0 Amperes
- Max. Recurrent Peak Reverse Voltage: 50V to 1000V depending on model
- Max. RMS Voltage: 35V to 700V depending on model
- Max. DC Blocking Voltage: 50V to 1000V
- Peak Forward Surge Current: 100A at 8.3ms
- Forward Voltage at 3A DC: 1.1V
- Max. DC Reverse Current at 25°C: 5A
- Operating Temperature Range: -55°C to +150°C
- Junction Capacitance: 40 pF
- Thermal Resistance (junction to lead): 10°C/W
- Thermal Resistance (junction to ambient): 50°C/W
- Dimensions: 0.128 inches (3.25 mm) height, 0.245 inches (6.22 mm) width, with mounting and contact pads suitable for surface mounting
Buy the Buy Multicomp Passivated Rectifier Part Number S3K Online
Get your Multicomp Series S3K surface mount glass passivated rectifier today through our online store. Designed for reliable high-current applications, it features low forward voltage drop and high reverse voltage capacity. Its RoHS compliant plastic case ensures safety and durability, making it suitable for a variety of electronic circuit designs. Efficient, compact, and easy to install, this rectifier is essential for power regulation, rectification, and electronic conversion systems. Purchase now for quick delivery and superior quality.
Order your Multicomp Series S3K high-current surface mount rectifier today and ensure dependable performance for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO S3K?
You can click on the BUY or RFQ button to purchase S3K from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part S3K?
You can download the S3K datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of S3K?
MULTICOMP PRO
