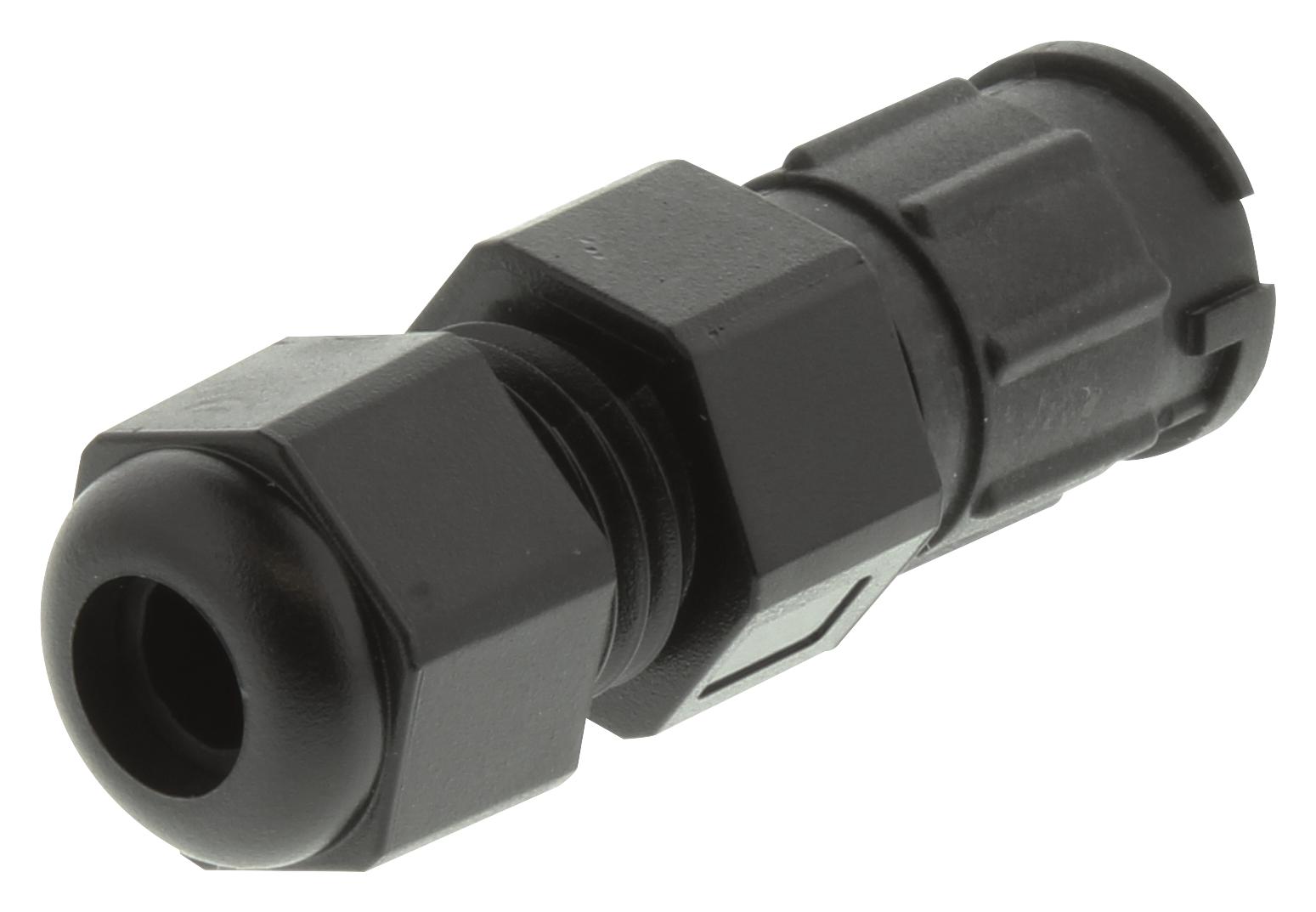

MULTICOMP-PRO 2CT3033W03400 Industrial Circular Connector
The 2CT3033-W03400 from Multicomp is a 3-way, 10A male circular inline connector with solder pin termination designed for industrial use. It features an IP67 rated sealed design suitable for harsh environments, with a durable nylon body reinforced with glass and polybutylene terephthalate. It offers low contact resistance of 30 milliohms or less, high insulation resistance of over 100 Megaohms at 500V DC, and supports up to 500 mating cycles. Operates from -40°C to +100°C, with gold-plated copper alloy pins for corrosion resistance. Compatible with 18AWG to 20AWG wire gauges, cable outer diameter from 4mm to 6.5mm, ideal for heavy-duty industrial applications.
MULTICOMP-PRO 2CT3033W03400 Industrial Circular Connector Specifications:
- Mating Style: Lock Type
- Contact Gender: Male pin
- Material Contact: Copper Alloy, Gold Plated
- Material Connector Body: Nylon+GF, PBT
- Cable OD: 4mm to 6.5mm
- Contact Resistance: 30mΩ (without cable)
- Insulation Resistance: 100MΩ at DC 500V
- Durability: 500 cycles minimum
- Breakdown Voltage: BAC 500V/1 minute
- Corrosion: Salt spray test 48 hours
- Temperature Range: -40°C to +100°C
- Waterproof Rate: IP67
- Rated Current: 10A
- Recommended Cable: 18AWG to 20AWG
Buy the Multicomp 2CT3033-W03400 – Reliable Industrial Male Circular Connector for Industrial Applications
Purchase the Multicomp 2CT3033-W03400 inline connector online today. Designed for industrial applications, it offers IP67 rated sealing, rugged nylon body, and gold-plated copper contacts. With support for 18-20 AWG wires and a cable diameter of 4mm to 6.5mm, it's ideal for demanding environments. Its corrosion-resistant construction withstands salt spray, and with up to 500 mating cycles, it ensures long-lasting performance. Perfect for automation, machinery, and industrial wiring projects requiring reliable connections under harsh conditions.
Get Multicomp 2CT3033-W03400 today—built for precision, durability, and reliable connectivity in demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 2CT3033W03400?
You can click on the BUY or RFQ button to purchase 2CT3033W03400 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 2CT3033W03400?
You can download the 2CT3033W03400 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 2CT3033W03400?
MULTICOMP-PRO
