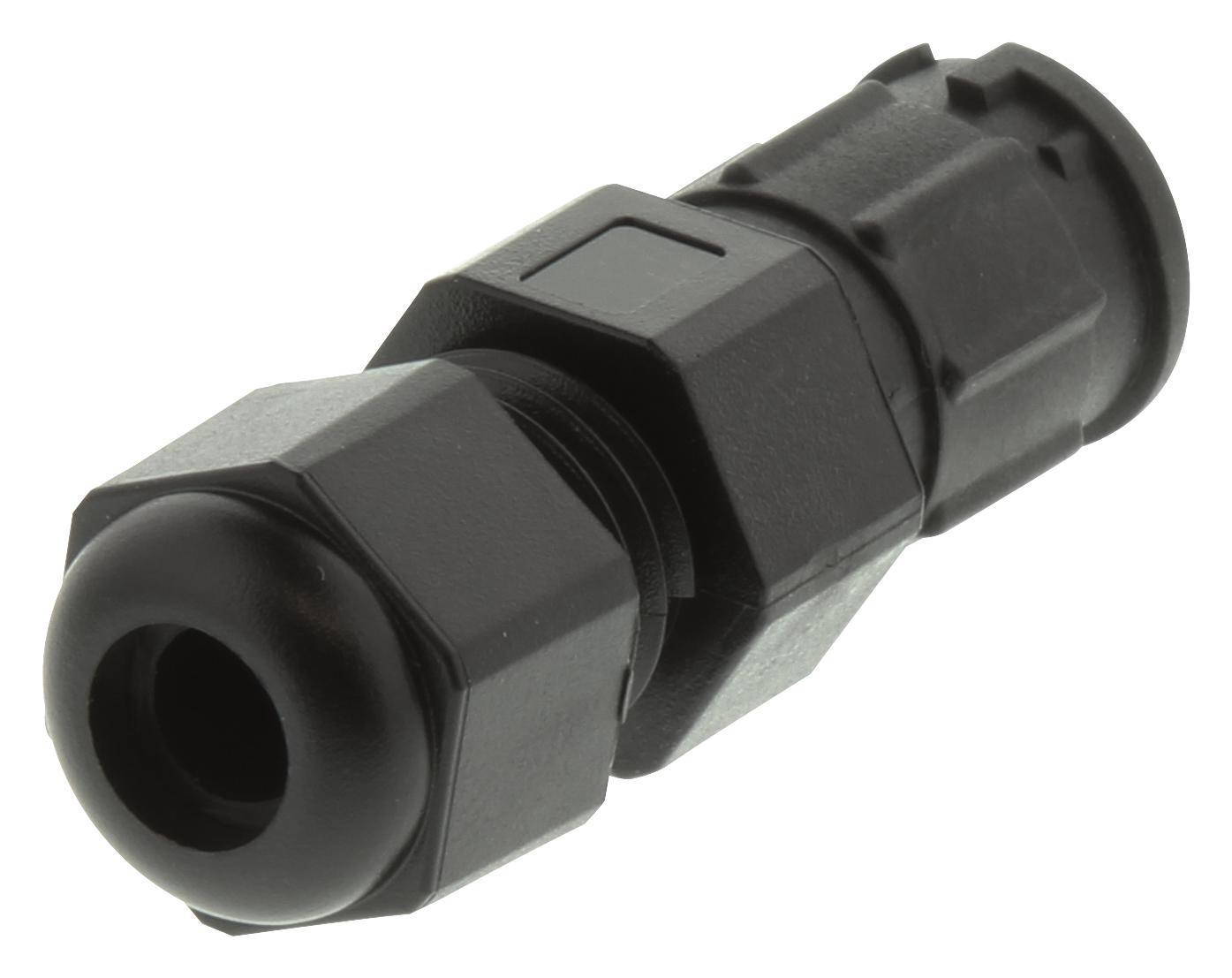

MULTICOMP PRO 2CT3033W04300 Field Wiring Connector
The 2CT3033-W04300 from Multicomp is a 4-way, 5A male circular connector designed for field wiring with solder pin terminals. It features an IP67-rated in-line design with locking mating mechanism, suitable for industrial applications. The connector body is made of nylon with glass fiber reinforcement and polybutylene terephthalate. It offers a contact resistance of less than or equal to 30 milliohms, insulation resistance of at least 100 megaohms at 500V DC, and withstands up to 500 mating cycles. Operating within a -40°C to +100°C temperature range, it has gold-plated copper alloy pins. Tolerant to 48 hours of salt spray, supports 22-24 AWG wire gauges, and accommodates cable diameters from 4mm to 6.5mm.
MULTICOMP PRO 2CT3033W04300 Field Wiring Connector Specifications:
- Contact Material: Copper Alloy, Gold Plated
- Body Material: Nylon+GF, PBT
- Cable Outer Diameter: 4mm to 6.5mm
- Contact Resistance: ≤30mΩ (without cable)
- Insulation Resistance: ≥100MΩ at DC 500V
- Durability: 500 mating cycles minimum
- Breakdown Voltage: BAC 500V/1 minute
- Corrosion Resistance: 48 hours salt spray contact
- Temperature Range: -40°C to +100°C
- Waterproof Rate: IP67
- Lock Type: Locking mechanism
- Pin Rating: 10A at 18-20 AWG, 5A at 22-24 AWG
Buy the multicomp Series Field Wiring Male Connector: 2CT3033-W04300
Discover the robust multicomp field wiring male connector model 2CT3033-W04300, ideal for industrial wiring with solder pins. This 4-way, 5A connector boasts an IP67 rating for water and dust resistance, making it perfect for demanding environments. Its nylon and glass fiber reinforced body ensures durability, while the gold-plated copper alloy contacts guarantee excellent conductivity and corrosion resistance. Designed for 22-24 AWG cables with diameters from 4mm to 6.5mm, it withstands salt spray and high temperatures, delivering reliable performance over many mating cycles. Perfect for automation, control systems, and industrial wiring projects.
Buy multicomp Series 2CT3033-W04300 now and experience unmatched reliability and industrial-grade performance in harsh environments.
