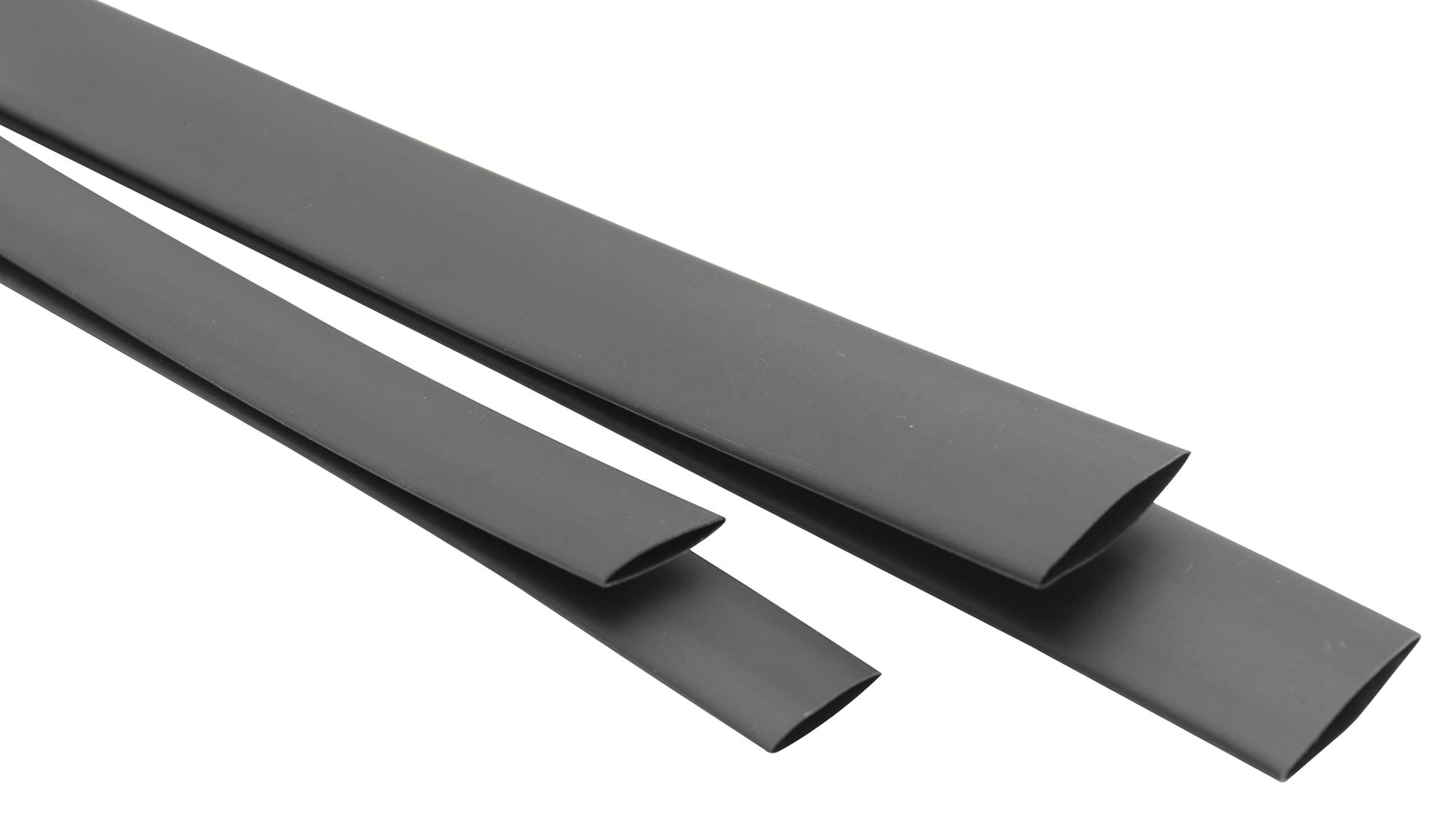

MULTICOMP PRO 13704 Heat Shrink Tubing
This flexible, halogen-free heat shrink tubing made from modified radiation cross-linked polyolefin offers excellent electrical insulation and mechanical protection. Designed for applications requiring quick shrinkage and low-temperature operation, it withstands temperatures from -55°C to +125°C withstanding heat aging, heat shock, and electrical stress efficiently. Suitable for wire and cable insulation, it features a 2:1 shrink ratio, various sizes, and vibrant color options like clear, red, yellow, white, blue, brown, grey, and green. Meets RoHS and Sony-SS-00259 standards, providing reliable performance for electronic and industrial applications.
MULTICOMP PRO 13704 Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 125°C
- Shrink Ratio: 2:1
- Colors: Clear, Red, Yellow, White, Blue, Brown, Grey, Green
- Tensile Strength: 210.4 MPa
- Ultimate Elongation: 2200%
- Heat Aging Tensile Strength: 27.3 MPa
- Dielectric Strength: 215 kV/mm
- Volume Resistivity: 21 x 10^12 Ω-cm
- Shrinkage: 15% longitudinal after recovery
- Dimensions & Wall Thickness: Internal diameter varies from 1.6mm to 50.8mm, wall thickness from 0.2mm to 0.56mm
- Compliance: RoHS, Sony-SS-00259
Buy the Polyolefin 13704 – Reliable Heat Shrink for Industrial Applications
Discover the durability and reliability of our premium heat shrink tubing, ideal for wire insulation, cable management, and electrical protection in harsh environments. Manufactured with modified radiation cross-linked polyolefin, it offers excellent electrical performance, mechanical strength, and flexibility. Suitable for quick shrinking at low temperatures and operational from -55°C to +125°C, it is compliant with RoHS and industry standards. Choose from various sizes and vibrant colors to meet your specific application requirements. Shop online to ensure fast delivery and competitive prices.
Buy trusted Polyolefin heat shrink tubing now and experience unmatched flexibility, electrical insulation, and mechanical protection for your industrial needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 13704?
You can click on the BUY or RFQ button to purchase 13704 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 13704?
You can download the 13704 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 13704?
MULTICOMP PRO
