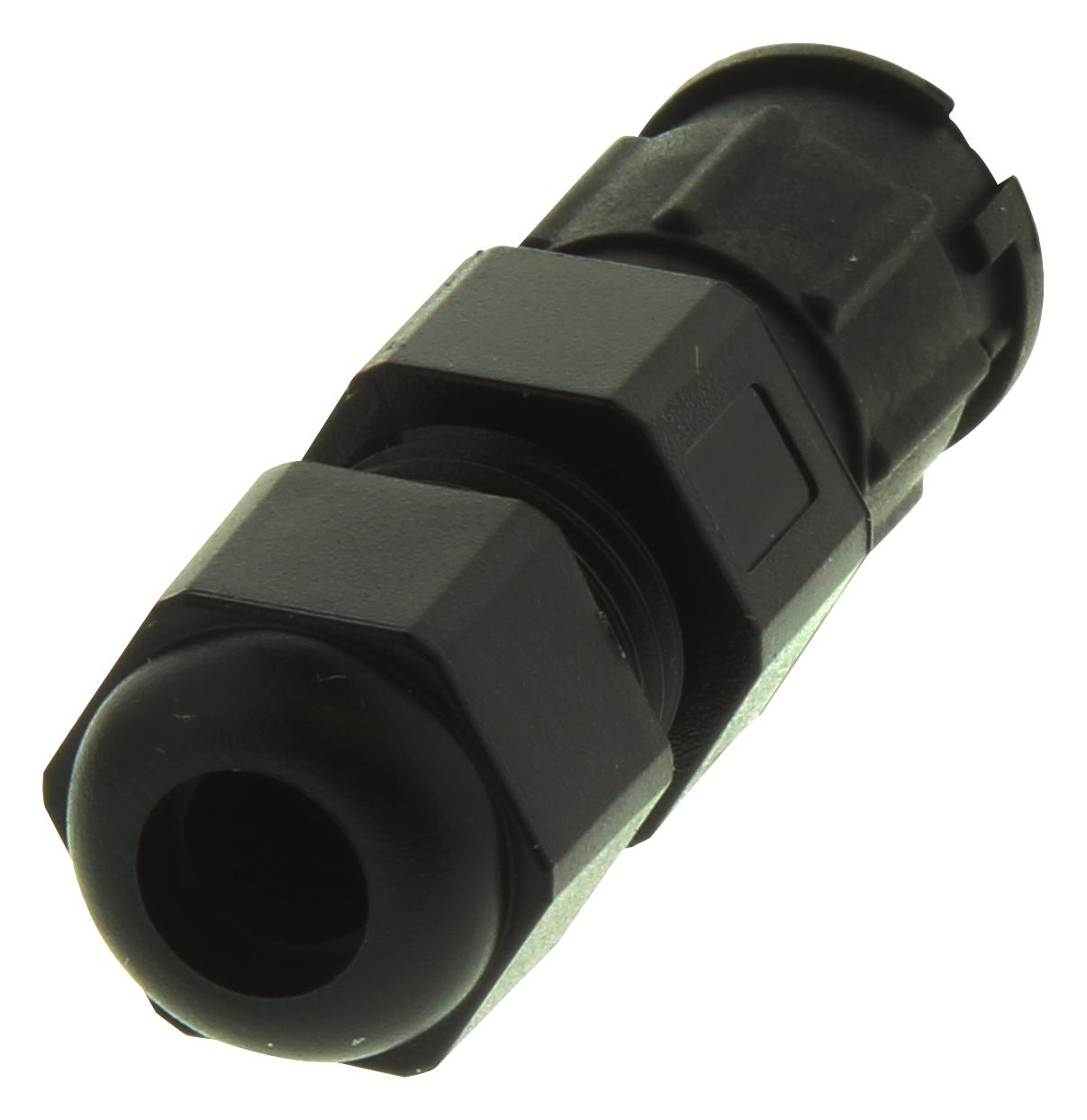

MULTICOMP PRO 2CT3033W05300 Industrial Circular Connector
The 2CT3033-W05300 from Multicomp is a 5-way, 5A industrial circular in-line connector designed for field wiring applications. It features solder pin termination and an IP67-rated, durable nylon and glass-filled polybutylene terephthalate body, making it suitable for harsh environments. The connector includes copper alloy pin contacts with gold plating to ensure reliable electrical performance. It offers low contact resistance (≤30 milliohms), high insulation resistance (≥100 megaohms at 500VDC), and is rated for 500 mating cycles. The operating temperature ranges from -40°C to +100°C. Compatible with wire gauges from 22 AWG to 24 AWG and suitable for cable diameters between 4mm to 6.5mm. This product is ideal for industrial applications and is rated 4.6 out of 5 stars by customers, with a 12-month limited warranty. Note: Due to high demand, delivery times may vary and discounts are not applicable.
MULTICOMP PRO 2CT3033W05300 Industrial Circular Connector Specifications:
- Mating Style: Lock Type
- Contact Gender: Male pin
- Material Contact: Copper Alloy, Gold Plated
- Material Connector Body: Nylon+GF, PBT
- Cable OD: 4mm to 6.5mm
- Contact Resistance: ≤30mΩ (without cable)
- Insulation Resistance: ≥100 MΩ at DC 500V
- Durability: 500 cycles minimum
- Breakdown Voltage: BAC 500V/1 minute
- Corrosion: Salt spray contact 48 hours
- Temperature Range: -40°C to +100°C
- Waterproof Rate: IP67 (immersed in 1m water for 30 minutes)
Buy the Multicomp Series Industrial Connector: 5-Way IP67 Rated Solder Pin 2CT3033-W05300
Purchase the Multicomp industrial circular connector 2CT3033-W05300 online today to ensure secure, reliable connections for your industrial wiring projects. Designed for challenging environments, this 5-way connector features a rugged IP67-rated body made of durable nylon and glass-filled PBT, ideal for outdoor or submerged applications. It offers solder pin termination, compatibility with 22-24 AWG cables, and a temperature range from -40°C to +100°C. Proper for various industrial settings, it provides low contact resistance, high insulation resistance, and withstands numerous mating cycles. Secure yours now for dependable, waterproof connections.
Get Multicomp industrial connector 2CT3033-W05300 today—built for harsh environments, reliable electrical performance, and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2CT3033W05300?
You can click on the BUY or RFQ button to purchase 2CT3033W05300 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2CT3033W05300?
You can download the 2CT3033W05300 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2CT3033W05300?
MULTICOMP PRO
