MULTICOMP PRO MP002549 IP68 industrial connectors
The MP-T21 IP68 series offers reliable, weatherproof connectors with threaded couplings, suitable for indoor and outdoor use. Featuring cable, panel, and in-line mount options, these connectors provide robust connections with solder or screw terminations. Rated at IP68, they are ideal for harsh environments in automation, security, medical, and industrial applications. Variants include 2, 3, 4, 5, 7, 9, and 12 poles, with a 21mm cut-out size. An IP68-rated protective cap enhances durability. Constructed from nylon66, PPS, and brass with gold plating, these connectors meet fire resistance standards and handle temperatures from -40°C to +85°C, capable of supporting up to 500 mating cycles.
MULTICOMP PRO MP002549 IP68 industrial connectors Specifications:
- Material: Nylon66 shell, PPS insert with max temperature 260°C, Brass contacts with gold plating
- Protection Level: IP68 sealed, dust and water resistant
- Temperature Range: -40°C to +85°C
- Mating Cycle: 500 cycles
- Contact Size: 1mm to 3mm diameter depending on model
- Rated Current: 5A to 30A depending on configuration
- Rated Voltage: up to 500V AC
- Termination: Solder or screw
- Mounting Options: Panel mount, cable mount, inline
- Maximum Cable Diameter: 12mm
- Shell Material: Nylon66, Locking Nut and Back Shell: Nylon66
- Insert Material: PPS, Max. Temperature 260°C
- Coupling Threaded for secure connection
- Contact Gender: Male and female variants available

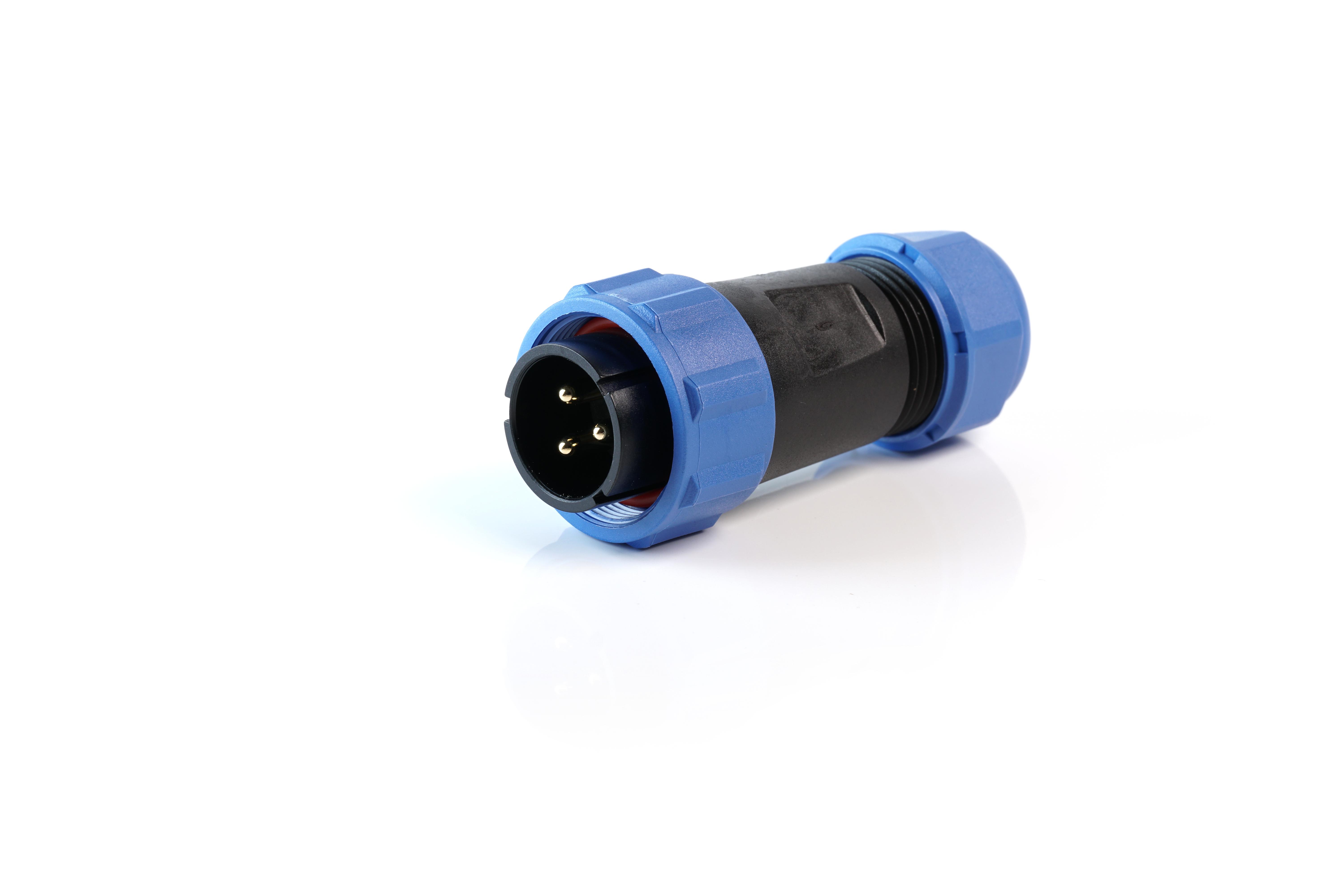

Buy the Multicomp Series MP-T21 IP68 Connectors: MP002549
Secure your projects with the robust MP-T21 IP68 connectors, offering weatherproof sealing and reliable connectivity for harsh environments. With options for cable, panel, and inline mounting, these connectors support solder or screw terminations and are available in multiple pole counts from 2 to 12, making them ideal for automation, security, medical, and industrial applications. Constructed from nylon66, PPS, and brass with gold plating, they withstand a wide temperature range and feature IP68 protection. Enhance your system’s durability by purchasing online today for fast, dependable delivery.
Order your Multicomp Series MP-T21 IP68 connector today and ensure durable, weatherproof connections for your industrial or outdoor projects.
