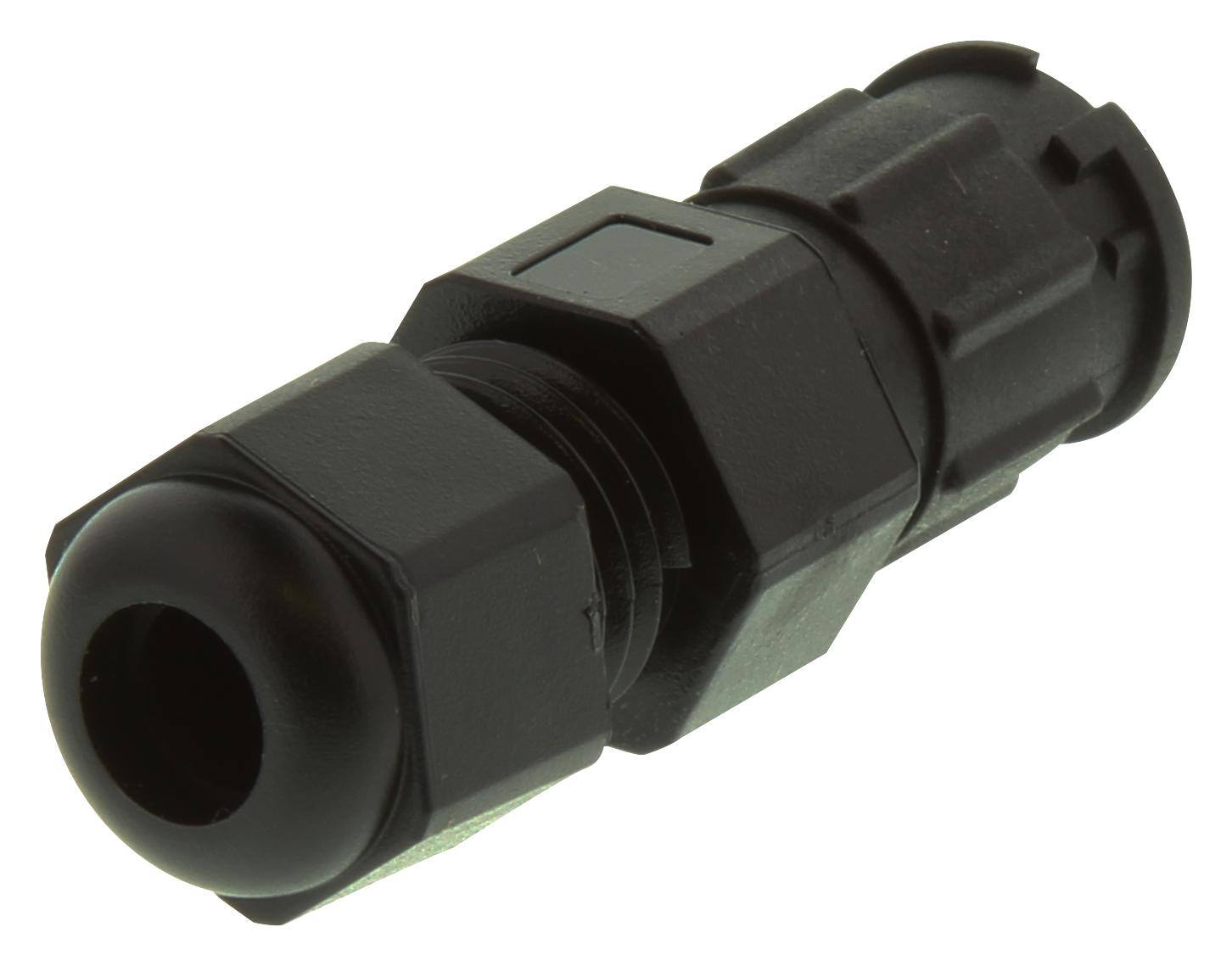

MULTICOMP PRO 2CT3033W06300 Field Wiring Connector
The 2CT3033-W06300 from Multicomp is a 6-position, 5A, field-wiring male connector with solder pin termination. It features an IP67-rated circular inline design with a lock-type mating system, making it suitable for harsh environments. The connector body is made from durable nylon reinforced with 33% fiberglass and PBT, ensuring high environmental resistance. It has a contact resistance of 30 milliohms or less, insulation resistance of at least 100 megaohms at 500V DC, and withstands over 500 mating cycles. Operating from -40°C to +100°C, with copper alloy pin contacts plated in gold for reliable connections. It supports wire gauges from 22 to 24 AWG with an outer cable diameter of 4mm to 6.5mm, making it ideal for industrial and outdoor applications. This connector offers superior durability, corrosion resistance, and electrical performance for demanding projects.
MULTICOMP PRO 2CT3033W06300 Field Wiring Connector Specifications:
- Mating Style: Lock Type
- Contact Gender: Male pin
- Material Contact: Copper Alloy, Gold Plated
- Material Connector Body: Nylon+GF, PBT
- Cable OD: 4mm to 6.5mm
- Contact Resistance: 30mΩ (without cable)
- Insulation Resistance: 100MΩ at DC 500V
- Durability: 500 cycles Min.
- Breakdown Voltage: BAC 500V/1 minute
- Corrosion Resistance: 48 hours salt spray contact
- Temperature Range: -40°C to +100°C
- Waterproof Rate: IP67 (immersed in 1m water for 30 mins)
Buy the Buy Multicomp Field Wiring Male Connector Part Number 2CT3033W06300 Online
Purchase the Multicomp Field Wiring Male Connector 2CT3033W06300 online now to experience reliable circuit connections for industrial, outdoor, and harsh environments. This IP67-rated connector with a lock-type mating system ensures secure and waterproof connections in demanding conditions. Made from high-quality nylon reinforced with fiberglass and PBT, it supports wire gauges from 22 to 24 AWG with a cable diameter range of 4mm to 6.5mm. With gold-plated copper contacts, it offers low contact resistance, high insulation resistance, corrosion resistance, and durability over 500 mating cycles, making it ideal for professional applications that require dependable, long-lasting connectivity.
Order your Multicomp Series2CT3033W06300 durable male connector today and enhance your project's reliability with high-quality industrial wiring solutions.
