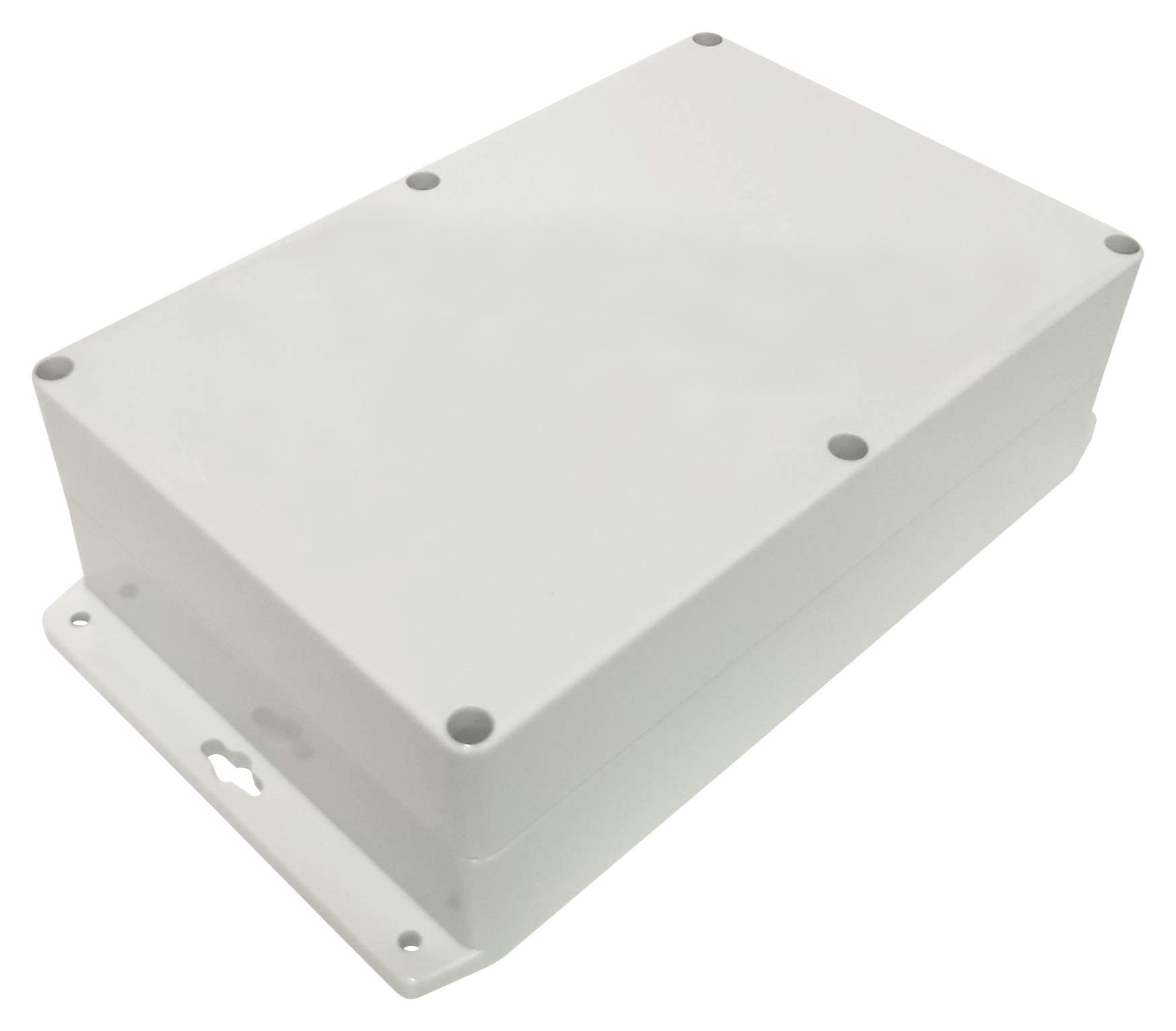

MULTICOMP PRO MC001101 Sealed Enclosure
Sealed polycarbonate and ABS enclosures with mounting flange designed for industrial control and electronic projects. Featuring IP65 dust and hoseproof rating, these enclosures incorporate a tongue and groove sealing system with EPDM gasket. Wall mounting holes and lid fixing screws are outside the sealing area to prevent moisture ingress. Polycarbonate variants withstand -40°C to 120°C, while ABS versions operate between -20°C and 80°C. Internal bosses and guide slots facilitate secure mounting of PCBs and terminals. Available with clear or grey lids, ideal for industrial, automation, and instrumentation applications.
MULTICOMP PRO MC001101 Sealed Enclosure Specifications:
- Material: Polycarbonate (UL94-HB) or ABS (UL94-HB)
- Operating Temperature: -40°C to 120°C for polycarbonate, -20°C to 80°C for ABS
- Sealing System: Tongue and groove with EPDM gasket
- Ingress Protection: IP65 (Dust and Hoseproof)
- Wall Mounting Holes: Outside sealing area for moisture prevention
- Mounting Bosses: For PCB fixing horizontally or terminal connection with M3X4mm self-tapping screws
- Internal Guide Slots: For vertical PCB mounting
- Available Colors: Clear, Light Grey, Dark Grey
- Lid and Base Options: Moulded in Polycarbonate or ABS
- Mounting Flange: Bottom of base for easy wall mounting
- Part Numbers: MC001102, MC001112, MC001122 (Polycarbonate), MC001093, MC001103, MC001113 (Polycarbonate with clear lid), MC001094, MC001104, MC001114 (Polycarbonate with Mounting Flange), MC001095, MC001105, MC001115 (Polycarbonate), MC001096, MC001106, MC001116 (Polycarbonate), MC001098, MC001108, MC001118 (Polycarbonate), MC001100, MC001110, MC001120 (Polycarbonate), MC001097, MC001109, MC001119 (Polycarbonate), MC001101, MC001111, MC001121 (Polycarbonate), MC001060, MC001066, MC001072 (Polycarbonate), MC001061, MC001067, MC001073 (Polycarbonate), MC001062, MC001068, MC001074 (Polycarbonate), MC001063, MC001069, MC001075 (Polycarbonate), MC001064, MC001070, MC001076 (Polycarbonate), MC001065, MC001071, MC001077 (Polycarbonate)
Buy the Multicomp Pro MC001101 – Reliable Enclosure for Industrial Applications
Discover the rugged durability of this sealed enclosure, ideal for protecting electronic and industrial components. Crafted from high-quality polycarbonate or ABS, it offers IP65 dust and water resistance. Easy to install with wall mounting holes located outside the sealing area to prevent moisture ingress. Internal bosses and guide slots ensure versatile PCB and terminal mounting. Available in clear or grey, this enclosure is perfect for control panels, automation systems, and instrumentation, providing reliable protection in demanding environments. Order online today to enhance your project’s durability and efficiency.
Buy Multicomp Pro MC001101 now and experience unmatched reliability and performance for industrial control and electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC001101?
You can click on the BUY or RFQ button to purchase MC001101 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001101?
You can download the MC001101 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC001101?
MULTICOMP PRO
