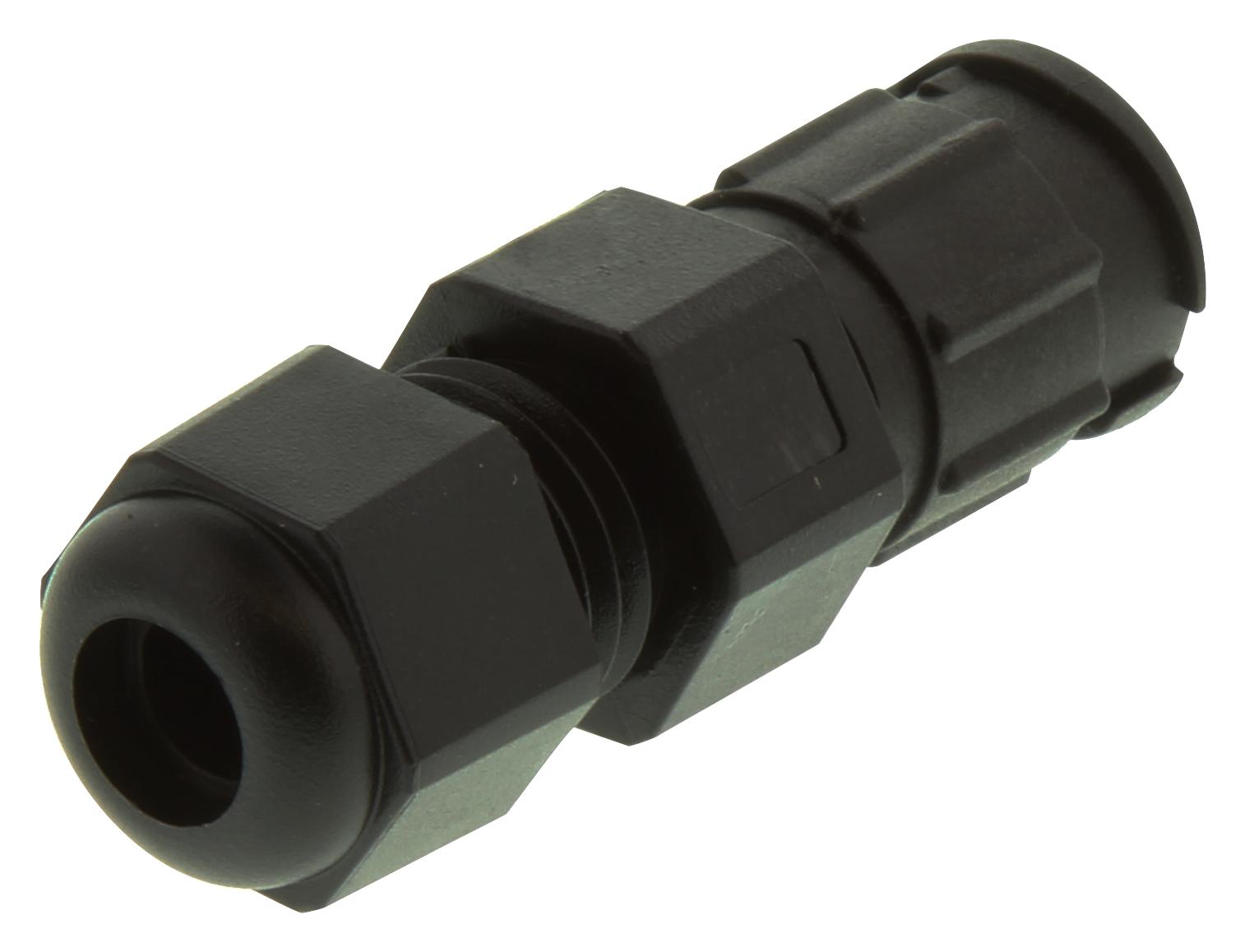

MULTICOMP-PRO 2CT3033W08300 industrial wiring connector
The 2CT3033-W08300 from Multicomp is an 8-way, 5A field wiring male connector featuring solder pin termination. It is an IP67-rated circular in-line connector with a lock-type mating style, designed for reliable outdoor and industrial applications. The connector body is made from nylon with glass fiber reinforcement and polybutylene terephthalate. It has a contact resistance of less than or equal to 30 milliohms, and an insulation resistance exceeding 100 megaohms at 500VDC. The connector is durable for at least 500 mating cycles and operates within a temperature range of -40°C to +100°C. It uses copper alloy pin contacts with gold plating for corrosion resistance, withstanding a 48-hour salt spray test. Suitable for wire gauges 22AWG to 24AWG and cable outer diameters from 4mm to 6.5mm. Multicomp’s products are highly rated, with a 4.6 out of 5-star rating, and come with a 12-month limited warranty. Designed primarily for industrial applications.
MULTICOMP-PRO 2CT3033W08300 industrial wiring connector Specifications:
- Mating Style: Lock Type
- Contact Gender: Male pin
- Material Contact: Copper Alloy, Gold Plated
- Material Connector Body: Nylon+GF, PBT
- Cable OD: 4mm to 6.5mm
- Contact Resistance: ≤30mΩ (without cable)
- Insulation Resistance: >100MΩ at DC 500V
- Durability: 500 cycles Min.
- Breakdown Voltage: BAC 500V/1 minute
- Corrosion: 48 hours salt spray contact
- Temperature Range: -40°C to +100°C
- Waterproof Rate: IP67
Buy the Multicomp 2CT3033-W08300 – Reliable Industrial Wiring Connector for Industrial Applications
Purchase the Multicomp field wiring male connector online today to ensure reliable outdoor and industrial electrical connections. Designed for durability, it features gold-plated copper contacts, a rugged nylon body, and IP67 waterproof rating. Suitable for wire gauges 22AWG to 24AWG with cable diameters from 4mm to 6.5mm, it provides excellent insulation resistance and withstands 500 mating cycles. Easy to install with solder pin termination, this connector guarantees long-lasting performance in demanding applications. Order now for dependable industrial electrical solutions supported by a full warranty.
Get Multicomp 2CT3033-W08300 today—built for rugged outdoor use and high durability in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 2CT3033W08300?
You can click on the BUY or RFQ button to purchase 2CT3033W08300 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 2CT3033W08300?
You can download the 2CT3033W08300 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 2CT3033W08300?
MULTICOMP-PRO
