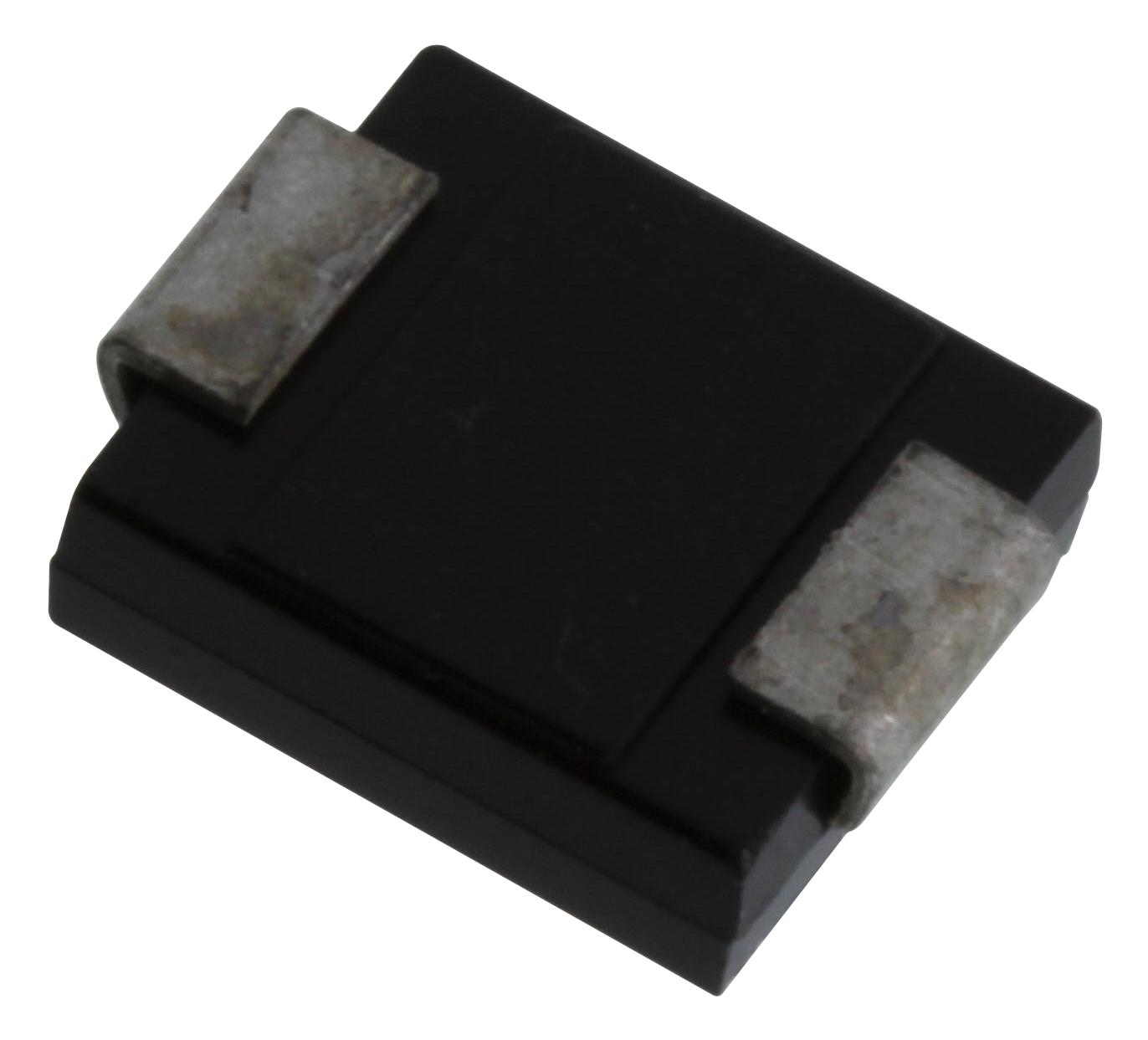

MULTICOMP PRO SMCJ60CA Transient Voltage Suppressor
The SMCJ60CA is a unidirectional transient voltage suppressor designed for electrical protection in sensitive electronic circuits. Featuring a glass passivated junction in a DO-214AB (SMC) package, it offers low incremental surge resistance, excellent clamping capability, and a peak pulse power of 1500W with a 10/1000us waveform. It withstands high temperature soldering at 250°C for 10 seconds. Suitable for high-speed transient suppression, it ensures rapid response time and high reliability in circuit protection applications, with a maximum working temperature of up to +150°C.
MULTICOMP PRO SMCJ60CA Transient Voltage Suppressor Specifications:
Case: JEDEC DO-214AB moulded plastic over glass passivated junction
Polarity: Unidirectional, the colour band denotes the cathode, positive with respect to anode
Peak Power Dissipation: 1500W with a 10/1000us waveform
Peak Pulse Current: 200.0A (8.3ms single half sine wave)
Maximum Surge Current: 200A (8.3ms)
Operating Temperature Range: -55°C to +150°C
Storage Temperature Range: -55°C to +150°C
Thermal Resistance Junction to Ambient: 100.0°C/W
Thermal Resistance Junction to Lead: 20°C/W
Dimensions: Package size suitable for high-speed transient suppression applications
Flammability: Epoxy rated UL 94V-0
Mounting: For high-density PCB installation, securing under high-temperature soldering conditions
Buy the Electro Components 60CA – Reliable TVS Diode for Industrial Applications
Secure your electronic projects today with the Electro Components 60CA transient voltage suppressor. This high-quality TVS diode offers 1500W peak pulse power, rapid response time, and high-temperature soldering capability, making it ideal for surge protection in industrial and sensitive electronic applications. Its robust glass passivated junction ensures long-lasting performance, while its easy mounting and compact design facilitate seamless integration into your circuit boards. Protect your devices effectively and ensure operational safety by ordering the Electro Components 60CA online now–a dependable choice for professional electronic protection.
Buy Electro Components 60CA now and experience unmatched reliability and performance in transient voltage suppression for your electronic circuits.
