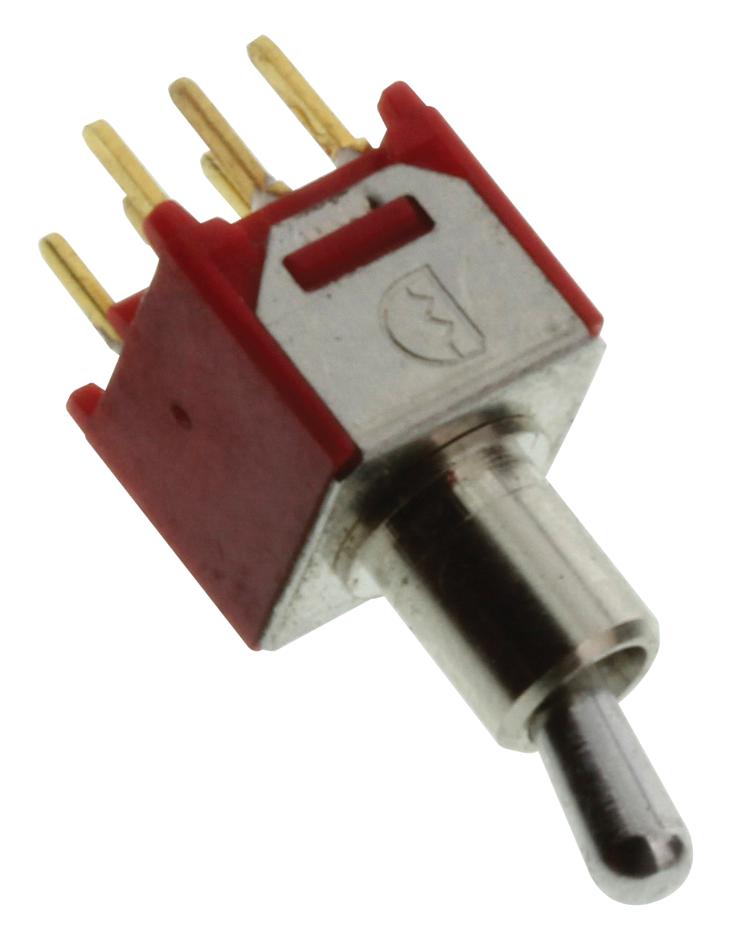

MULTICOMP-PRO 2MD1T2B2M2RE DPDT toggle switch
The 2MD1T2B2M2RE is a durable double-pole double-throw (DPDT) subminiature toggle switch with PC through-hole termination, epoxy sealed, and rated for industrial use. Featuring a 5.33-inch high chrome-plated brass actuator and a 5.59-inch high flat nickel-plated brass bushing, it offers reliable switching with a maximum initial contact resistance of 20 milliohms at 2-4V DC and 100mA. The stainless steel housing provides protection, while operating temps range from -30°C to +85°C. Suitable for automation and control systems, it ensures long-lasting performance in demanding environments.
MULTICOMP-PRO 2MD1T2B2M2RE DPDT toggle switch Specifications:
- Contact Resistance: 20mΩ max at 2-4V DC 100mA
- Mechanical Life: 30,000 make and break cycles
- Insulation Resistance: 1,000MΩ min
- Dielectric Strength: 1,000V rms at sea level
- Operating Temperature: -30°C to +85°C
- Actuator Material: Chrome-plated brass, height 5.33 inches
- Bushing Material: Nickel-plated brass, height 5.59 inches
- Housing Material: Stainless steel
- Support Material: Brass, tin plated
- Contact Material: Silver or gold plated
- Bushing Type: Flat, non-threaded
- Seal: Epoxy
- Mounting: PC through-hole
- Switch Function: ON-NONE-ON
- Poles: Double-pole
- Rating: Suitable for industrial control systems
Buy the Buy Multicomp DPDT Toggle Switch Part Number 2MD1T2B2M2RE Online
Get the reliable and durable DPDT toggle switch designed for industrial applications. Featuring PC through-hole mounting, epoxy sealing, chrome and nickel plating, and a high operating temperature range, this switch ensures long-lasting performance in demanding environments. Perfect for automation, control panels, and machinery, it offers excellent contact resistance and insulation resistance, along with a high dielectric strength. Purchase online today to integrate this high-quality switch into your projects and enjoy fast delivery and industry-leading support.
Order your Multicomp Series2MD1T2B2M2RE toggle switch today and enhance the reliability of your industrial control systems with this durable DPDT switch.
