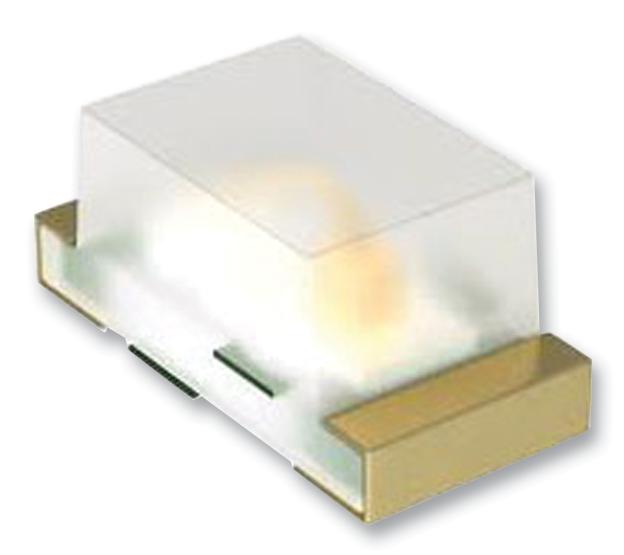

MULTICOMP PRO 7030104 SMD Chip LED
This high-quality SMD Chip LED provides bright hyper red illumination with a luminous intensity of up to 16.5 med. It operates at a forward voltage of 1.9-2.2V and a forward current of 20mA, making it ideal for compact electronic projects and indication purposes. Designed with epoxy resin and a white diffused lens, it ensures optimal optical performance and durability. Suitable for reflow soldering at 260°C, it features a viewing angle of 140° and minimal reverse current. This LED is RoHS compliant and comes in reel packaging for convenient surface-mount assembly.
MULTICOMP PRO 7030104 SMD Chip LED Specifications:
- Power Dissipation: 78 °C
- Reverse Voltage: 5 V
- Forward Current: 30 mA
- Pulsed Forward Current: 80 mA
- Operating Temperature Range: -40 to +80 °C
- Storage Temperature Range: -40 to +85 °C
- Soldering Temperature: 260°C for 10 sec
- Luminous Intensity: 11-16.5 med at 20mA
- Forward Voltage: 1.9-2.2 V
- Peak Wavelength: 567-577 nm
- Dominant Wavelength: 572-577 nm
- Viewing Angle: 140°
- Spectrum Line Halfwidth: 30 nm
- Reflow Soldering: max 260°C for 10 sec
- Material: White diffused epoxy resin
- Packaged on conductive black tape in reels, sealed in vapor barrier bags
- Operating humidity: up to 60% RH
- Recommended storage environment: 5°C to 30°C
- Packaging: 8mm tape with 4000 pcs per reel, EIA-481A standard
Buy the Multicomp Pro Series SMD Chip LED: 7030104
Purchase the Multicomp Pro SMD Chip LED 7030104 online today and enjoy fast delivery and reliable quality. This high-brightness hyper red LED is perfect for surface-mount designs, offering exceptional optical efficiency with a wide viewing angle of 140°. Its robust epoxy resin construction ensures durability, and the reel packaging facilitates easy assembly in production lines. Ideal for indication and illumination tasks, this LED operates efficiently at 20mA with a forward voltage of 1.9-2.2V. Order now for seamless integration into your electronic projects and ensure optimal visibility and performance.
Buy Multicomp Pro Series 7030104 now and experience unmatched reliability and performance in compact LED lighting solutions.
