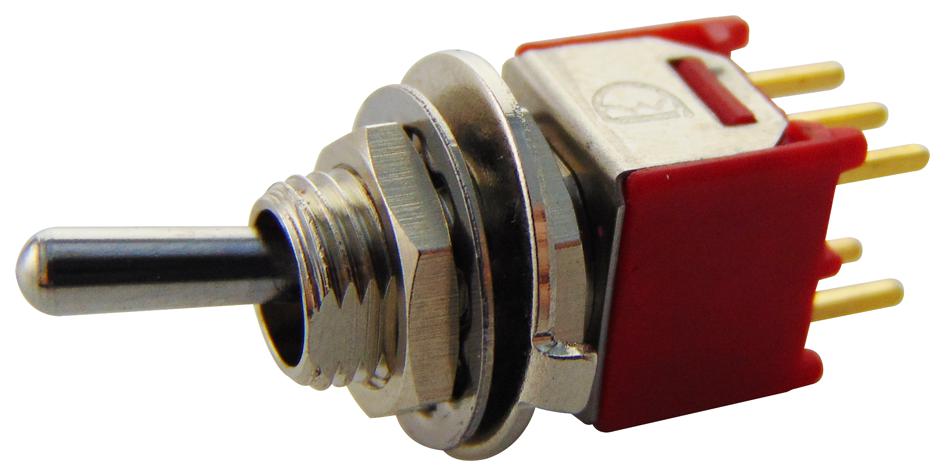

MULTICOMP PRO 2MD2T1B5M2RE Toggle Switch
This sub-miniature toggle switch offers reliable operation with a 30,000 make-and-break cycle lifespan and a contact resistance of 20mΩ. Suitable for industrial control and electronic applications, it features epoxy sealing and various mounting options, including PCB and panel mounting. Made from durable materials such as brass and stainless steel, it supports up to 1000V RMS dielectric strength and operates efficiently within -30°C to +85°C. Available in multiple poles and configurations, it ensures versatile switching performance in compact spaces.
MULTICOMP PRO 2MD2T1B5M2RE Toggle Switch Specifications:
- Contact Rating: 0.4 volt-amps at 20V max (AC/DC)
- Mechanical Life: 30,000 cycles
- Contact Resistance: 20mΩ max at 2 to 4V DC
- Dielectric Strength: 1,000V RMS at sea level
- Operating Temperature: -30°C to +85°C
- Materials: Case and Bushing - Brass, chrome/nickel plated; Housing - Stainless steel; Terminals - Brass, tin/gold plated
- Seal: Epoxy
- Pole Options: SPDT, DPDT, Vertical, Horizontal, R/A mounting
- Soldering Process: Manual and wave soldering at 250°C for 5 seconds
- Dimensions: Millimeters and Inches as specified
- Peak Soldering Temperature: 260°C
- Soldering Profile: Pre-heat 150°C, soak 180-200°C, peak 200-260°C, duration varies
- Actuator Heights: 5.33 mm or 9.40 mm depending on model
- Number of Poles: 1 or 2 poles
- Seals: Epoxy (STD)
- RoHS Compliant: Yes
Buy the Multicomp Pro 2MD2T1B5M2RE – Reliable Toggle Switch for Industrial Applications
Enhance your electronic setups with our durable and versatile toggle switch, offering high dielectric strength, epoxy sealing, and multiple mounting options. Its robust construction ensures reliable operation in industrial environments, with a long lifespan of 30,000 cycles. Suitable for PCB and panel mounting, this switch supports up to 1000V RMS and operates within -30°C to +85°C. Perfect for controlling machinery, automation, and electronic projects, order online today for fast delivery and excellent performance.
Buy Multicomp Pro 2MD2T1B5M2RE now and experience unmatched reliability and performance in your electronic control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2MD2T1B5M2RE?
You can click on the BUY or RFQ button to purchase 2MD2T1B5M2RE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2MD2T1B5M2RE?
You can download the 2MD2T1B5M2RE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2MD2T1B5M2RE?
MULTICOMP PRO
