MULTICOMP PRO 15092 Polyolefin Heat Shrink Tubing

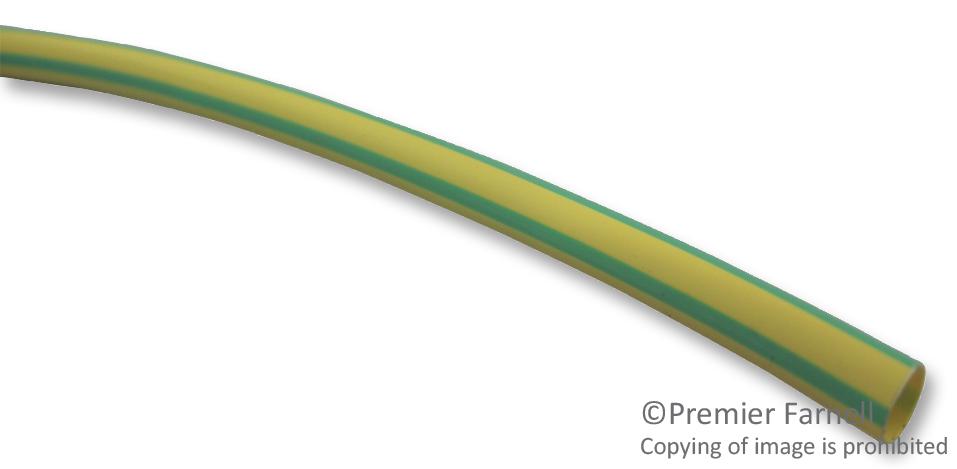

Green and yellow striped flame-retardant polyolefin heat shrink tubing is flexible, flame-retardant, and designed for wire identification, especially ground wires. It withstands temperatures from -55°C to +125°C, with a minimum shrink temperature of 70°C and full recovery at 120°C. The tubing features a 2:1 shrink ratio, UL224 VW-1, CSA22.2 No.198.1 approvals, tensile strength of at least 10.4 MPa, elongation of 200%, and excellent electrical insulation properties. Suitable for light-duty harnessing and wire marking applications, it offers ease of installation and permanent color retention.
MULTICOMP PRO 15092 Polyolefin Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 120°C
- Shrink Ratio: 2:1
- Tensile Strength: ≥10.4 MPa (min)
- Ultimate Elongation: ≥200%
- Longitudinal Shrinkage: ±5% UL 224
- Dielectric Strength: ≥15 kV/mm
- Volume Resistivity: ≥1x10^14 Ω·cm
- Flammability: UL224 VW-1 pass
- Approval Standards: UL224, CSA22.2 No.198.1
- Dimensions (After Recovery): In 3/16-50.8mm size, wall thickness 0.6mm
- Material: Flame-retardant polyolefin
- RoHS Compliant
Buy the Green/Yellow Series Flame-Retardant Polyolefin Heat Shrink Tubing: 15092
Purchase the Green/Yellow Flame-Retardant Polyolefin Heat Shrink Tubing online today to enjoy durable, flexible, and flame-retardant wire insulation solutions. Designed for easy installation, this tubing provides permanent color coding for ground wires and harnessing applications. Suitable for electrical insulation, wire identification, and light-duty harnessing, it withstands temperatures from -55°C to +125°C, with a shrink ratio of 2:1. Buy now to ensure your electrical projects are safe, compliant, and efficiently protected with high-quality heat shrink tubing.
Order your Green/Yellow Series flame-retardant polyolefin heat shrink tubing with part number 15092 today and ensure reliable wire insulation and identification in your projects.
