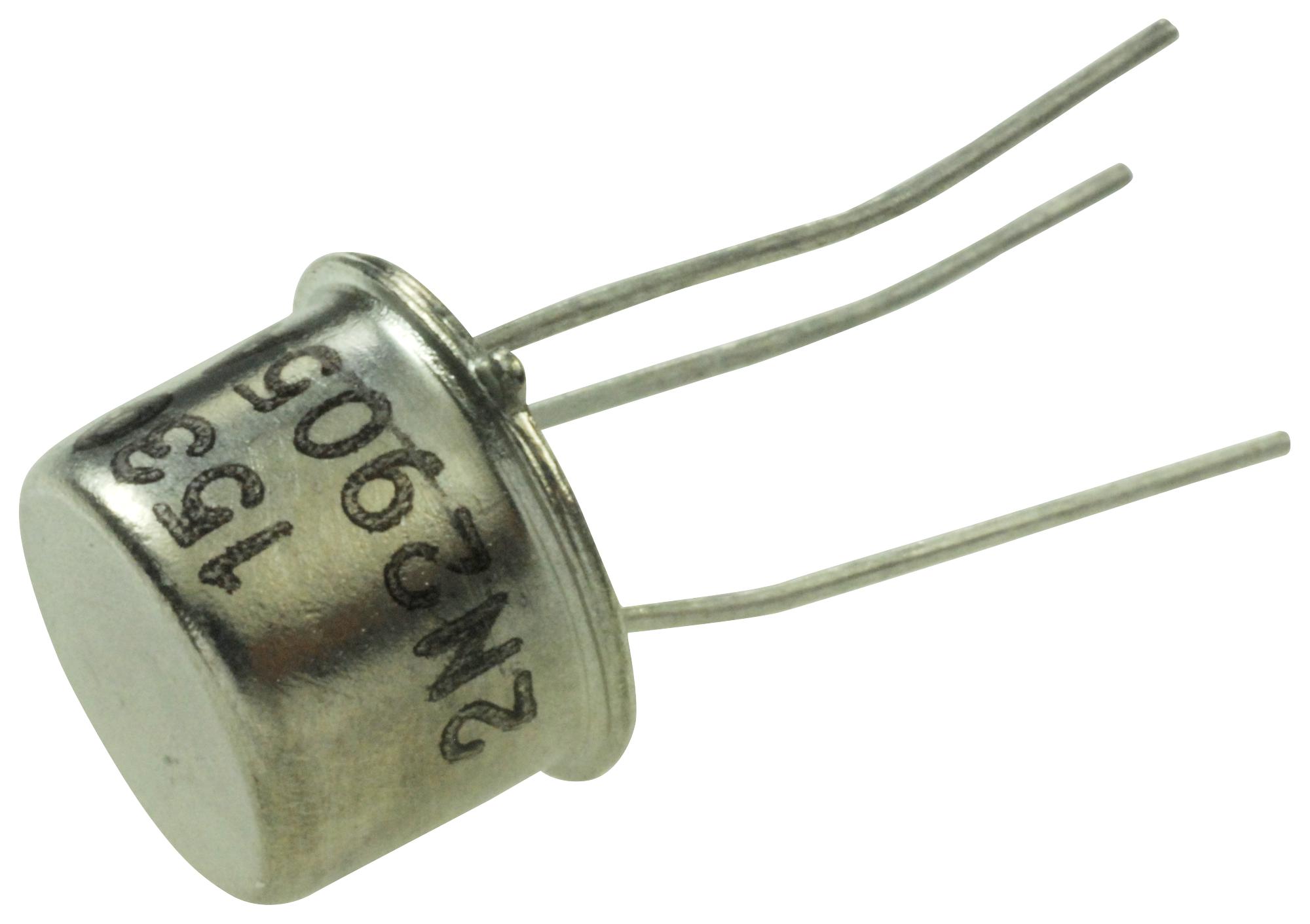

MULTICOMP PRO 2N2905A PNP Transistor
The 2N2905A from Multicomp Pro is a PNP silicon planar transistor housed in a TO-19 metal can package. It is ideal for switching and amplification applications, offering fast switching, short turn-off times, and low saturation voltage. Key features include a collector-emitter voltage of -60V, continuous collector current of -600mA, and a power dissipation of 600mW. Operating between -65°C and 200°C, it provides a collector-emitter saturation voltage of -400mV at 150mA and a DC current gain exceeding 50 at 500mA. Suitable for signal processing, power management, portable devices, consumer electronics, and industrial use, with high reliability and performance.
MULTICOMP PRO 2N2905A PNP Transistor Specifications:
- Case Type: TO-19 Metal Can
- Pin Configuration: Emitter, Base, Collector
- Collector-Emitter Voltage: -60V
- Collector-Base Voltage: -60V
- Emitter-Base Voltage: -5V
- Collector Current: -600mA
- Power Dissipation: 600mW
- Operating Junction Temperature Range: -65°C to 200°C
- Collector-Emitter Saturation Voltage: -400mV at 150mA
- DC Current Gain: >50 at 500mA
- Transition Frequency: 200MHz
- Dimensions (Min. - Max.): A: 8.5 - 9.39 mm, B: 7.74 - 8.5 mm, Cc: 6.09 - 6.6 mm, D: 0.4 - 0.53 mm, E: - 0.88 mm, F: 2.41 - 2.66 mm, G: 4.82 - 5.33 mm, H: 0.71 - 0.86 mm, J: 0.73 - 1.02 mm, K: 12.7 mm, D L: 42° - 48°.
- Frequency Response: 200 MHz
- Input/Output Capacitance: Input capacitance approx. 30pF, Output capacitance approx. 8pF.
Buy the Multicomp Series PNP Transistor: 2N2905A
Order the Multicomp 2N2905A PNP silicon transistor online today for reliable switching and amplification. Its high voltage, current capacity, and fast switching make it suitable for signal processing, power management, and industrial applications. Compact TO-19 package ensures easy integration into various electronic devices, providing excellent performance across a wide temperature range from -65°C to 200°C. Whether for industrial, consumer, or portable electronics, this transistor guarantees high durability and efficiency. Purchase now for swift delivery and top-tier performance enhancement in your projects.
Buy Multicomp 2N2905A now and experience unmatched reliability and performance in switching and amplification applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2N2905A?
You can click on the BUY or RFQ button to purchase 2N2905A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2N2905A?
You can download the 2N2905A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2N2905A?
MULTICOMP PRO
