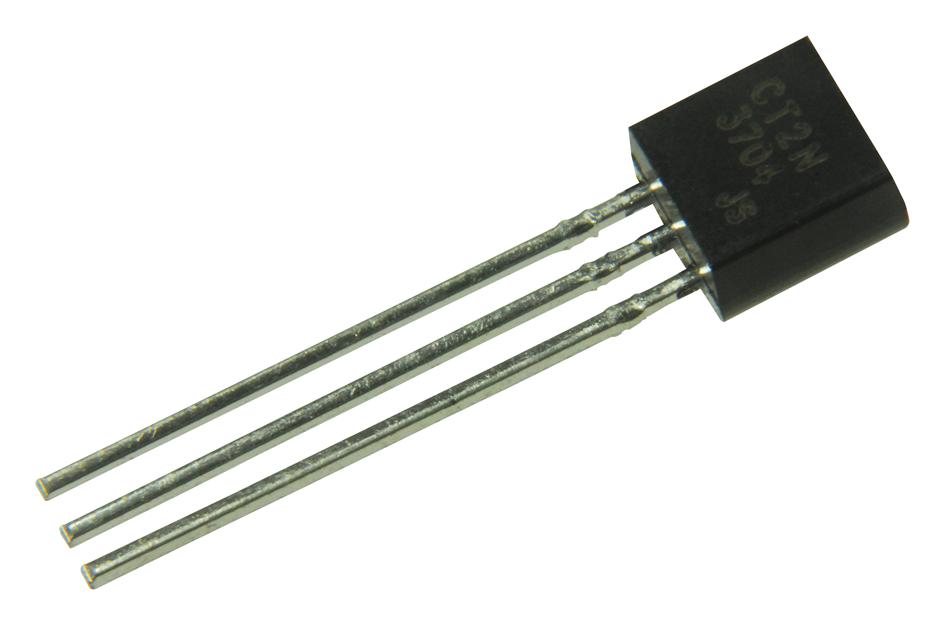

MULTICOMP PRO 2N3704 NPN Silicon Transistor
The MULTICOMP PRO 2N3704 is a versatile NPN silicon planar epitaxial transistor, widely utilized in electronic circuits for amplification, switching, and voltage regulation. With a maximum collector-emitter voltage of 30V and a continuous collector current of 600mA, this transistor offers a balance of performance and reliability. It is commonly found in applications such as motor drives, power amplifiers, and switching circuits. The 2N3704's robust construction and reliable operation make it a preferred choice for engineers and designers seeking a dependable transistor solution. Its TO-92 package simplifies integration into various circuit designs.
MULTICOMP PRO 2N3704 NPN Silicon Transistor Specifications:
- Collector Emitter Voltage: 30 V
- Collector Base Voltage: 50 V
- Emitter Base Voltage: 5 V
- Collector Current Continuous: 600 mA
- Power Dissipation: 625 mW
- Operating Junction Temperature Range: -55 to +150 °C
- Junction to Ambient Thermal Resistance: 200 °C/W
- Collector Emitter Voltage (Pulse): 30 V
- Collector Base Voltage (Pulse): 50 V
- Emitter to Base Voltage (Pulse): 5 V
- DC Current Gain (hFE): 100-300
- Collector Leakage Current: 0.1 µA
- Emitter Leakage Current: 0.1 µA
- Collector Emitter Saturation Voltage: 0.6 V
- Base Emitter On Voltage: 0.5-1 V
- Output Capacitance: 12 pF
- Transition Frequency: 100 MHz
- Package: TO-92
- Dimensions A: 4.32-5.33 mm
- Dimensions B: 4.45-5.2 mm
- Dimensions C: 3.18-4.19 mm
- Dimensions D: 0.41-0.55 mm
- Dimensions E: 0.35-0.5 mm
