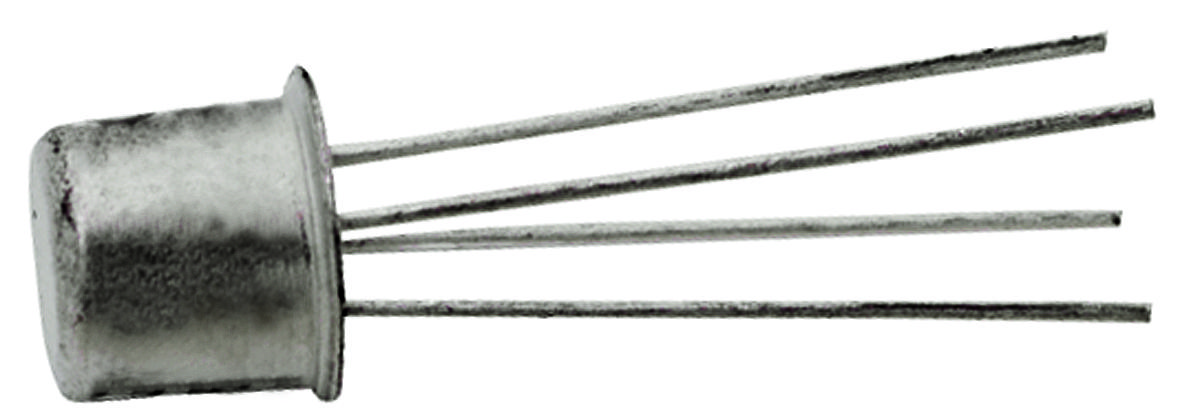

MULTICOMP-PRO 2N5179NRC NPN Bipolar Transistor
The MULTICOMP PRO 2N5179-NRC is an NPN bipolar transistor specifically engineered for low-noise tuned amplifier circuits. This versatile component offers a collector-emitter voltage of 12V and a DC current gain between 25 and 250, making it suitable for a wide range of applications including radio frequency circuits, low-noise amplifiers, and general-purpose amplification. Its robust design and reliable performance ensure consistent operation in various industrial and consumer electronics environments. The transistor is packaged in a TO-72 metal can, providing excellent thermal dissipation and protection. Purchase securely and efficiently to meet your project needs.
MULTICOMP-PRO 2N5179NRC NPN Bipolar Transistor Specifications:
- Collector-Base Voltage: 20 V
- Collector-Emitter Voltage: 12 V
- Emitter Base Voltage: 2.5 V
- Collector Current: 50 mA
- Power Dissipation at Ta= 25°C: 200 mW
- Power Dissipation at Tc= 25°C: 300 mW
- Operating and Storage Junction Temperature: -65 to +200 °C
- Junction to Case: 583 °C / W
- Junction to Ambient: 875 °C / W
- Collector Cut off Current Icbo: 0-20 nA at 150°C
- Collector Emitter Saturation Voltage VCE(Sat): ≤ 0.4 V at 10mA, 1mA
- Base Emitter Saturation Voltage VBE(Sat): ≤ 1 V at 10mA, 1mA
- DC Current Gain hFE: 25-250 at 3mA, 1V
- Forward Current Transfer Ratio hfe: 25-300 at 2mA, 6V, 1kHz
- Out-Put Capacitance Cob: ≤ 1 pF at 10V, 1MHz
- In-Put Capacitance Cib: ≤ 2 pF at 0.5V, 1MHz
- Collector Base Time Constant rbb’ Cb’ c: 3-14 ps at 2mA, Vce=V, 31.9MHz
- Small-Signal Power Gain Gp: ≥ 15 dB at 5mA, 12V, 200MHz
- Common Emitter Oscillator Power Output Po: ≥ 20 mW at 12mA, 10V, >500MHz
- Frequency ft: 900-2000 MHz at 5mA, 6V, 100MHz
