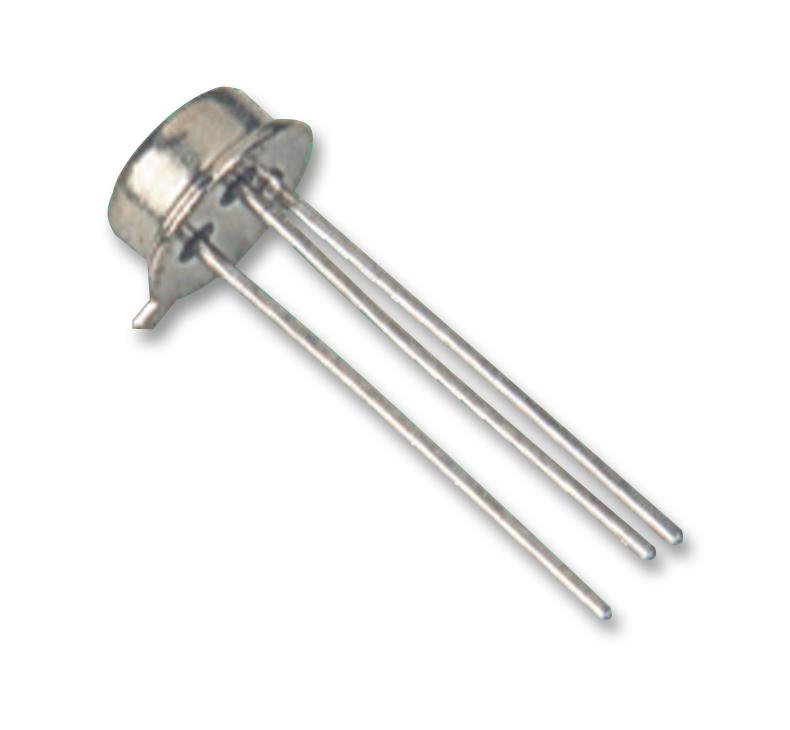

MULTICOMP PRO 2N5416 High Voltage Transistor
This PNP high voltage transistor is suitable for high-speed switching and linear amplification in military, industrial, and commercial equipment. Encased in a TO-39 metal can, it features a collector-emitter voltage of 300V and a collector-base voltage of 350V, with a maximum collector current of 1A. Its power dissipation at 25°C is 1W, with a junction to case thermal resistance of 17.5°C/W. The device exhibits a DC current gain between 30 and 120 and transition frequency above 15 MHz, making it ideal for high-voltage applications requiring reliable performance.
MULTICOMP PRO 2N5416 High Voltage Transistor Specifications:
- Collector-Base Voltage: 350 V
- Collector-Emitter Voltage: 300 V
- Emitter-Base Voltage: 6 V
- Collector Continuous Current: 1 A
- Power Dissipation at 25°C: 1 W
- Thermal Resistance Junction to Ambient: 150°C/W
- Thermal Resistance Junction to Case: 17.5°C/W
- Operating Temperature Range: -65°C to +200°C
- Breakdown Voltage: >300 V
- Collector Cutoff Current: <50 nA
- Emitter Cutoff Current: <20 nA
- Saturation Voltage Collector-Emitter: <2 V
- Saturation Voltage Base-Emitter: <1.5 V
- DC Current Gain: 30-120
- Transition Frequency: >15 MHz
- Input Capacitance: <75 pF
- Output Capacitance: <15 pF
- Package: TO-39 Metal Can
Buy the Buy Multicomp PNP High Voltage Transistor Part Number 2N5416 Online
Order the Multicomp PNP high voltage transistor 2N5416 online today to enhance your circuit designs with high voltage capabilities, fast switching, and robust durability. Perfect for industrial, military, and commercial applications, this component features a collector-emitter voltage of 300V, collector-base voltage of 350V, and a collector current of 1A. Its TO-39 metal can package provides excellent thermal performance and reliability. Secure quick delivery and ensure your project's success by purchasing this essential high-voltage transistor now.
Get Multicomp PNP High Voltage Transistor 2N5416 today—designed for high-speed switching, reliable performance, and industrial-grade durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2N5416?
You can click on the BUY or RFQ button to purchase 2N5416 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2N5416?
You can download the 2N5416 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2N5416?
MULTICOMP PRO
