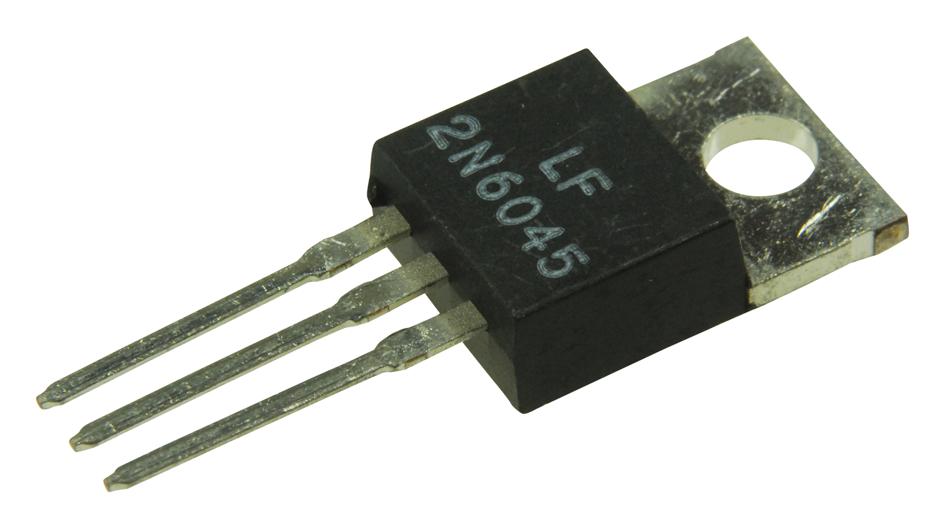

MULTICOMP PRO 2N6045 NPN Darlington Transistor
The 2N6045 is an NPN Darlington transistor engineered for industrial use, with a 100V minimum collector-emitter voltage and built-in base-emitter shunt resistors for reliable operation. It offers high DC current gain, collector-base voltage of 100V, and emitter-base voltage of 5V, making it ideal for high-voltage, high-current switching and amplification. This durable transistor has a collector current of 8A, a continuous current of 16A, and a total power dissipation of 75W, suited for demanding industrial applications requiring stable performance over a wide temperature range.
MULTICOMP PRO 2N6045 NPN Darlington Transistor Specifications:
- Collector-Emitter Voltage Vceo: 100 V
- Collector-Base Voltage VcB: 100 V
- Emitter-Base Voltage Ves: 5 V
- Collector Current: 8 A
- Continuous Collector Current: 16 A
- Base Current Ip: 120 mA
- Total Power Dissipation: 75 W at 25°C
- Operating Junction Temperature Range: -65 to +150 °C
- Storage Temperature Range: -65 to +150 °C
- Thermal Resistance, junction-to-case: 1.67 °C/W
- Thermal Resistance, junction-to-ambient: 57 °C/W
- Dimensions (millimeters): A: 16.51, B: 10.67, C: 4.83, D: 0.9, E: 1.4, F: 3.88, G: 2.79, H: 3.43, J: 0.58, K: 14.73, L: 4.07, M: 2.92, N: 31.24
Buy the Multicomp Series NPN Darlington Transistor: 2N6045
Buy the Multicomp Series 2N6045 NPN Darlington Transistor online today to upgrade your industrial electronic systems. Designed for high-current, high-voltage switching and amplification, this durable transistor features a collector-emitter voltage of 100V, collector current up to 8A, and a total power dissipation of 75W. Its robust construction includes built-in base-emitter shunt resistors, ensuring stable operation across a wide temperature range. Perfect for demanding industrial applications requiring reliability and performance, order now to experience seamless online purchasing and fast delivery.
Order your Multicomp Series 2N6045 NPN Darlington Transistor today and enhance your industrial switching and amplification projects with reliable, high-current performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2N6045?
You can click on the BUY or RFQ button to purchase 2N6045 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2N6045?
You can download the 2N6045 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2N6045?
MULTICOMP PRO
