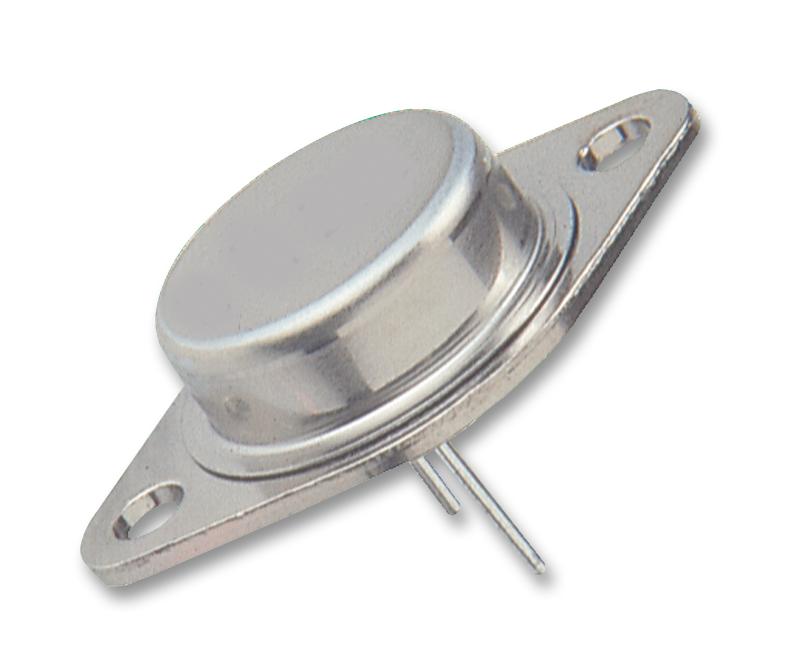

MULTICOMP PRO 2N6052 Power Transistor
The 2N6052 is a PNP silicon Darlington transistor designed for general-purpose amplifier and low-frequency switching applications. It features monolithic construction with built-in base-emitter shunt resistors, providing high DC current gain. With a collector-emitter sustaining voltage of -100V and emitter-to-base voltage of -5V, this device supports continuous collector current up to 12A and peak up to 20A. Its thermal resistance is 1.17°C/W, making it reliable for industrial and switching applications. Suitable for various industrial electronics, it ensures dependable performance under specified maximum ratings.
MULTICOMP PRO 2N6052 Power Transistor Specifications:
- Collector-Emitter Voltage: -100V
- Emitter-Base Voltage: -5V
- Collector Current: Continuous 12A, Peak 20A
- Power Dissipation: 150W at 25°C, derates above 25°C at 0.857W/°C
- Thermal Resistance Junction to Case: 1.17°C/W
- Operating Temperature Range: -65°C to +200°C
- Dimensions: Reference: 1.55 inches length, case size TO-3, pin configuration includes base, emitter, collector
- Material: Silicon, Pb-free device
- Maximum Ratings support high voltage, current, and power for industrial applications
- Device constructed with built-in base-emitter shunt resistors for stability
Buy the Buy MultiComp Transistor Part Number 2N6052 Online
Purchase the Power Transistor 2N6052 online for your industrial applications. With high current capacity and voltage ratings, it guarantees dependable switching and amplification. Ideal for low-frequency and amplifier projects, the device features monolithic construction, built-in resistors, and a thermal resistance of 1.17°C/W, ensuring efficient heat management. Its robust ratings support continuous current up to 12A and peak currents of 20A, making it suitable for reliable operations in demanding environments. Buy now to keep your projects moving smoothly with quality components.
Order your MultiComp Power Transistor 2N6052 today and enhance your industrial electronics with reliable switching and amplification performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2N6052?
You can click on the BUY or RFQ button to purchase 2N6052 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2N6052?
You can download the 2N6052 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2N6052?
MULTICOMP PRO
