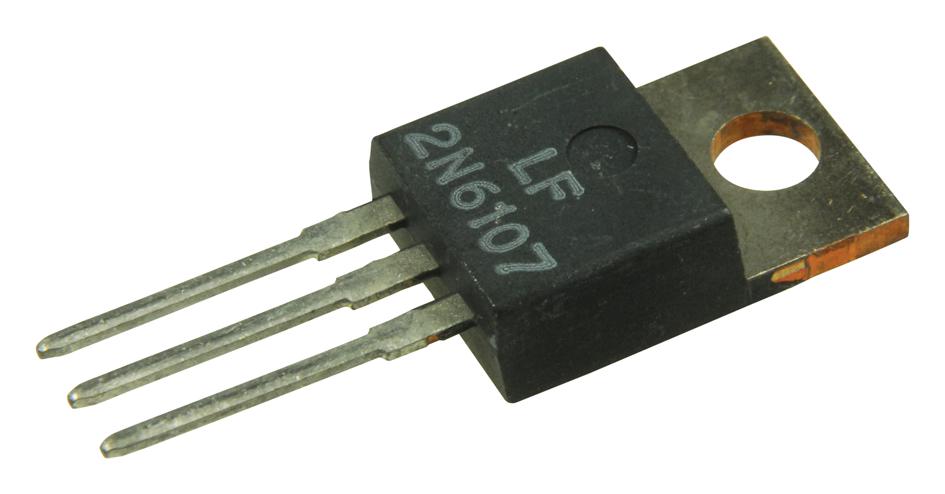

MULTICOMP PRO 2N6107 Power Transistor
The 2N6107 is a PNP silicon power transistor designed for general-purpose amplification and switching applications in industrial and power management systems. It offers high current gain bandwidth, collector-emitter voltage of 70V, and continuous collector current of 7A. This transistor features a TO-220 package, making it suitable for use in high-power switching, amplifiers, and industrial electronics with operating junction temperatures from -65°C to +150°C. Its robust voltage and current ratings ensure reliable performance in demanding environments, supported by features such as low saturation voltage and high setting temperature tolerance.
MULTICOMP PRO 2N6107 Power Transistor Specifications:
- Collector-Emitter Voltage Vceo: 70V
- Collector-Base Voltage VcBo: 80V
- Emitter-Base Voltage VEBO: 5V
- Continuous Collector Current Ic: 7A
- Base Current Ip: 3A
- Total Device Dissipation Po: 40W at 25°C
- Operating Junction Temperature Range: -65°C to +150°C
- Storage Temperature Range: -65°C to +150°C
- Collector-Emitter Saturation Voltage VcE(sat): 3.5V at Ic=7A, Ib=3A
- Base-Emitter On Voltage VBE(on): 3V at Ic=7A
- DC Current Gain hFE: Min. 23 at Vce=4V, Ic=7A
- Current Gain Bandwidth Product ft: Min. 10MHz at Ic=500mA
- Output Capacitance Cobo: Max 250pF at Vos=10V, f=0.1MHz
- Dimensions: Length approx. 16.5mm, width approx. 10.7mm, height approx. 4.83mm (varies per model)
Buy the Multicomp PNP Transistor 2N6107 – Reliable Power Switching for Industrial Applications
Experience reliable high-power switching with the multicomp PNP transistor. Designed for industrial applications, it offers a collector-emitter voltage of 70V and a continuous current of 7A, making it ideal for power amplification, switching, and industrial electronics. Its TO-220 package provides durability and ease of mounting. This transistor operates effectively across a temperature range from -65°C to +150°C, ensuring performance in demanding environments. Purchase online today and enhance your manufacturing and power management systems with trusted reliability and performance.
Buy multicomp PNP 2N6107 now and enjoy high-performance switching and amplification for industrial power management and automation systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2N6107?
You can click on the BUY or RFQ button to purchase 2N6107 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2N6107?
You can download the 2N6107 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2N6107?
MULTICOMP PRO
