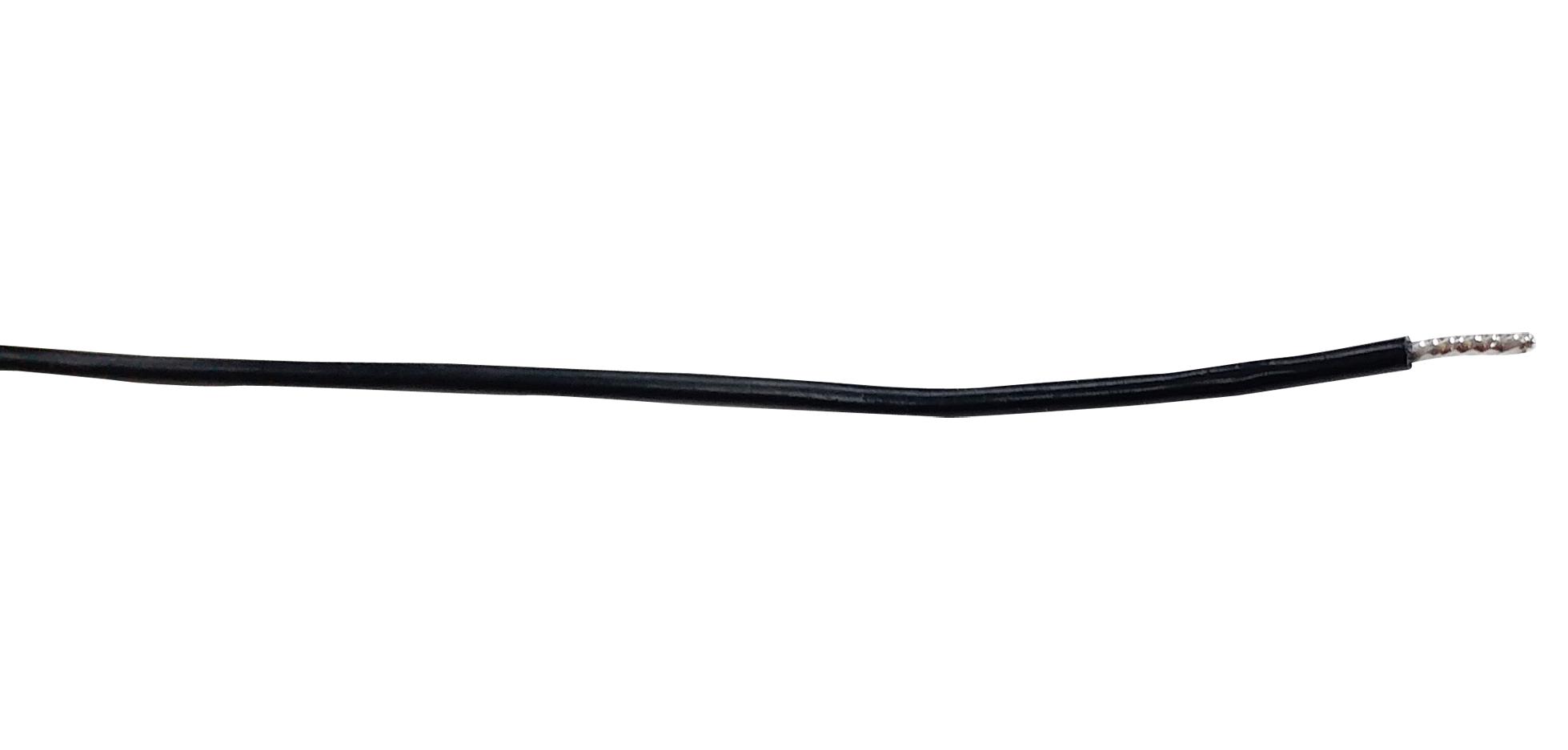

MULTICOMP-PRO PP002543 Stranded Hook-Up Wire
This UL1569 style stranded hook-up wire is constructed with stranded tinned copper conductors and insulated with PVC, rated for 105°C and 300V. Available in various gauges from 16 to 30 AWG, it features different strand counts and colors suitable for electronic and electrical applications. The wire is supplied on reels of 305 meters or per meter, making it ideal for versatile wiring needs. Its robust insulation and stranded conductor design ensure flexibility, durability, and reliable performance in control panels, instrumentation, and low-voltage wiring projects.
MULTICOMP-PRO PP002543 Stranded Hook-Up Wire Specifications:
- Conductor Material: Stranded Tinned Copper
- Insulator Material: PVC
- Rated Temperature: 105°C
- Rated Voltage: 300V
- Cable Length: 305m reel or per meter
- Conductor Size: 16 to 30 AWG
- Strand Count: 65/0.16, 34/0.18, 17/0.16, 11/0.16, 7/0.16, 7/0.127, 7/0.10
- Conductor Diameter: 1.49 mm to 0.31 mm depending on gauge
- Insulation Diameter: 2 mm to 1.2 mm depending on gauge
- Temperature Rating: 105°C
- Voltage Rating: 300V
- Color Options: Black, Brown, Red, Yellow, Green/Yellow, Blue, White, Orange, Grey
- RoHS Compliant: Yes
Buy the Buy UL1569 Stranded Hook-Up Wire Part Number PP002543 Online
Purchase UL1569 stranded hook-up wire online today and benefit from fast delivery, high-quality tinned copper conductors, and versatile gauge options. Designed with PVC insulation rated for 105°C and 300V, this wire is perfect for control panels, instrumentation, and low-voltage electrical wiring. Available in reels of 305 meters or by the meter, it offers excellent flexibility, durability, and reliable performance. Ensure your project’s success with high-quality wiring solutions that meet your electrical needs efficiently and effectively.
Order your UL1569 SeriesPP002543 stranded hook-up wire today and ensure dependable, flexible wiring for your electrical projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP002543?
You can click on the BUY or RFQ button to purchase PP002543 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002543?
You can download the PP002543 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP002543?
MULTICOMP-PRO
