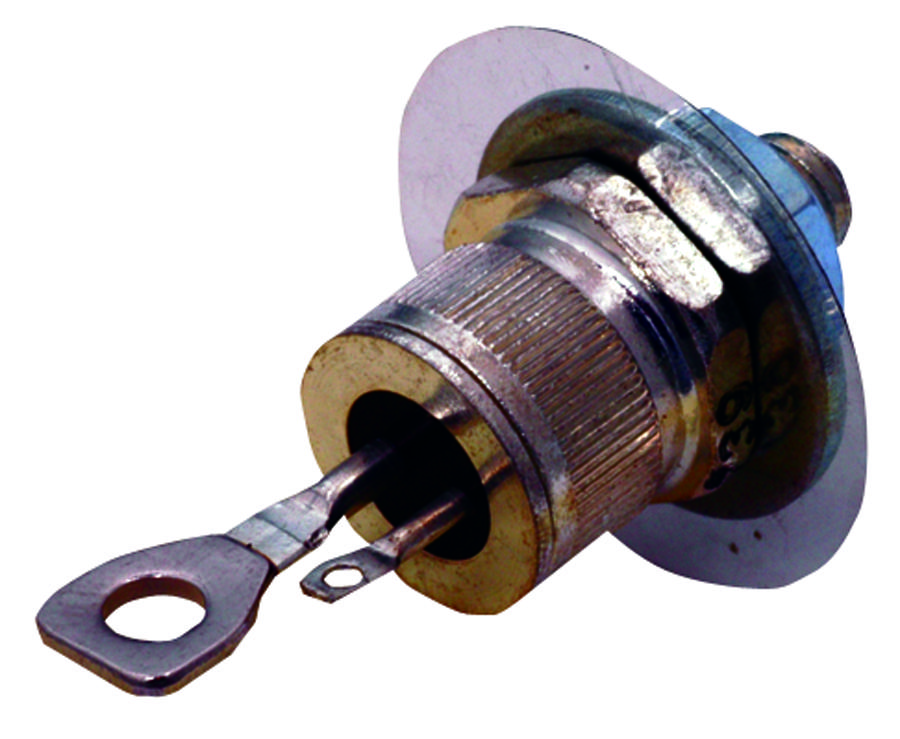

MULTICOMP PRO 2N690 Thyristor
The 2N690 is a 3-pin press-fit stud mount thyristor featuring glass passivated junctions and a center gate fire for improved parameter uniformity and stability. It is rated for a peak gate power of 5W and an average gate power of 0.5W. Suitable for industrial applications, this component offers reliable switching performance and enhanced stability.
MULTICOMP PRO 2N690 Thyristor Specifications:
- Peak Repetitive Off State Blocking Voltage Vero or Vorm: 600V
- Peak Non Repetitive Reverse Voltage Vesm or Vosm: 720V
- RMS On State Current ItRMs: 254A
- Average On State Current, (Tc = -40°C to +65°C): 16A
- Peak Non Repetitive Surge Current: 150A (one cycle 60Hz preceded and followed by rated current)
- Circuit Fusing Considerations (Ti = -40°C to 125°C, t= 1 to 8.3 ms): 93 A2s
- Peak Gate Power Pm SW: 5W
- Average Gate Power Porav: 0.5W
- Peak Forward Gate Voltage Votm: 10V
- Reverse Vom: 5V
- Stud Torque: 30 in/lb
- Operating Junction Temperature Range Ts: -65°C to +125°C
- Storage Temperature Range Tstg: -65°C to +150°C
- Peak Forward or Reverse Blocking Current Ipav, IRav at 600V (gate open, Tu=125°C): Max 25A
- Peak Forward or Reverse IRRM at 600V (gate open, Ts=25°C): Max 10A
- Gate Trigger Current Igt (Vak=12V, Ru=500Ω, To=-65°C): Max 80mA
- Gate Trigger Voltage Vgt (Vak=12V, RL=500Ω, To=-65°C): Max 3V
- Holding Current Ih (Vak=12V, To=25°C): Max 73mA
- Gate Controlled Turn On Time (Veo=600V, Rt=500Ω, Ts=125°C): 0.25 ms
- Dimensions: A 1.15 inches, B 0.114 inches, C 0.453 inches, D 1.603 inches, E 1.243 inches, F 0.562 inches
Buy the Farnell Series 2N690 Thyristor: 600V Peak Repetitive Off State Voltage
Purchase the Farnell Series 2N690 thyristor online today and enhance your industrial systems with this highly reliable component. Featuring a peak off state voltage of 600V, a surge current capacity of 150A, and a stable gate trigger, it ensures excellent performance in switching and control applications. Its robust construction includes glass passivated junctions for uniformity, making it suitable for demanding environments. Enjoy fast delivery, competitive pricing, and technical support when you buy this essential industrial thyristor online now for seamless project integration.
Order your Farnell Series 2N690 thyristor today and enjoy reliable switching performance for industrial and control applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2N690?
You can click on the BUY or RFQ button to purchase 2N690 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2N690?
You can download the 2N690 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2N690?
MULTICOMP PRO
