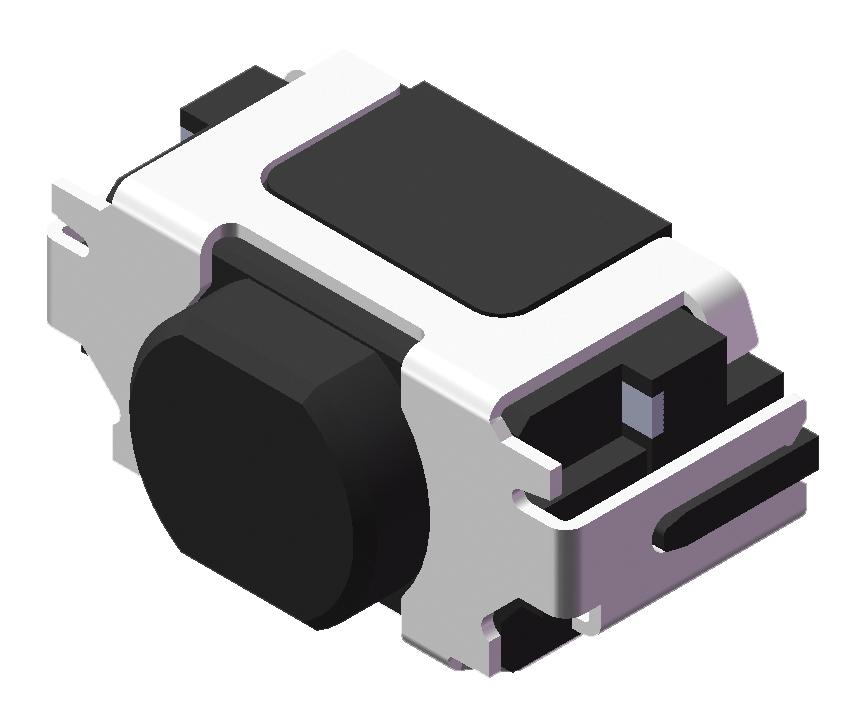

MULTICOMP PRO MP005530 Surface Mount Tact Switch
The surface mount tact switch is a compact, reliable electronic component designed for precise circuit control in various portable and consumer devices. It features a 4.5mm x 2.2mm size, with options including with or without a post, and operates at 12V DC with SPST configuration. The switch offers an operating force between 160 to 250 gf, a lifespan of 600,000 cycles, and a travel distance of 0.15mm. Suitable for smartphones, digital cameras, and portable audio devices, it complies with RoHS standards and endures temperatures from -30°C to +85°C.
MULTICOMP PRO MP005530 Surface Mount Tact Switch Specifications:
- Part Number: MP005530
- Type: Surface Mount Tact Switch
- Size: 4.5mm x 2.2mm
- Configuration: Without Post
- Contact Rating: 50mA 12V AC
- Contact Resistance: 500mΩ max.
- Insulation Resistance: 100MΩ minimum at 100V DC
- Dielectric Strength: 100V AC/1 minute
- Operating Force: 250gf ±80gf
- Travel: 0.15mm
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -40°C to +90°C
- Life Cycle: 600,000 cycles
- RoHS Compliant
Buy the Multicomp Pro MP005530 – Reliable Surface Mount Tact Switch for Industrial Applications
Order the Multicomp Pro surface mount tact switch MP005530 online today and ensure reliable performance for your electronic designs. This durable switch features a compact size of 4.5mm by 2.2mm, a high lifespan of 600,000 cycles, and is suitable for smartphones, digital cameras, and portable audio devices. With a contact rating of 12V DC, 50mA, and RoHS compliance, it guarantees safety and longevity in various applications. Easily integrate this high-quality component into your circuit for consistent operation and enhanced durability.
Buy Multicomp Pro MP005530 now and experience unmatched reliability and performance for your electronic projects.
