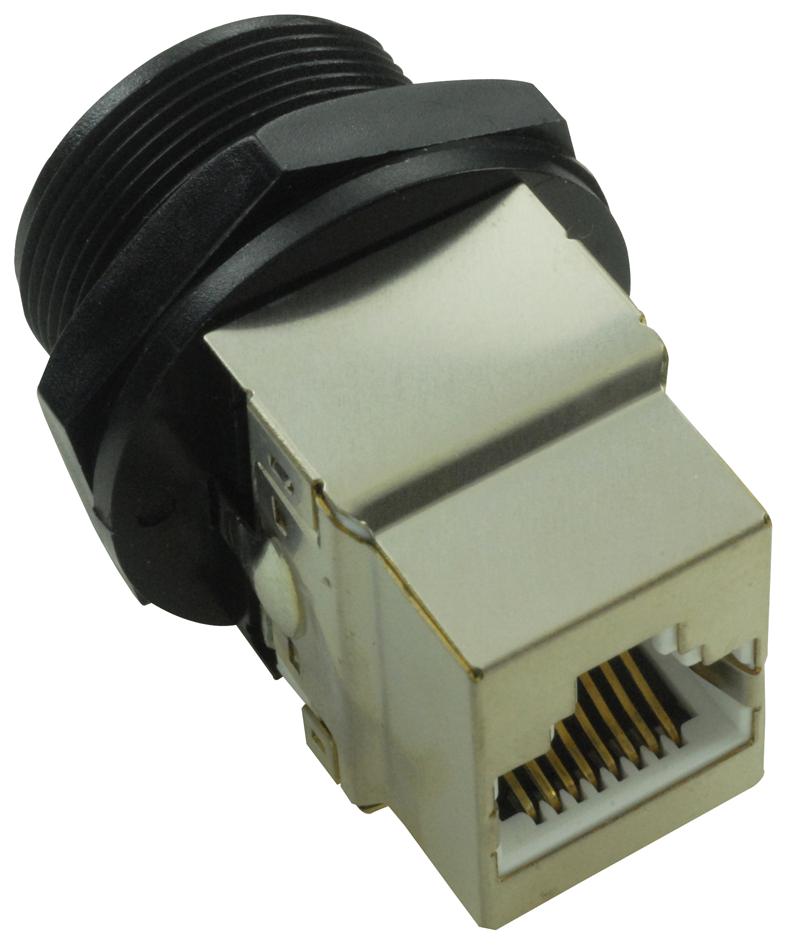

MULTICOMP PRO 2TJ3003W05100 RJ45 CAT5E STP Jack
The MULTICOMP PRO 2TJ3003-W05100 is a waterproof RJ45 CAT5E STP pass-through jack designed for reliable network connections in harsh environments. With an IP67 rating, it provides protection against water ingress, making it ideal for outdoor or industrial applications. The connector supports a rating of 125V 1.5A and offers low contact resistance. It is designed for panel thicknesses up to 3.5mm and conforms to hazardous substance-free specifications, ensuring environmental compliance. This jack is a robust and dependable solution for network connectivity where waterproofing is essential.
MULTICOMP PRO 2TJ3003W05100 RJ45 CAT5E STP Jack Specifications:
- Waterproof_Rating: IP67 (when properly mated)
- Waterproof_Immersion: Immersed in 1M water for 30 minutes
- Rating: 125V 1.5A
- Contact_Resistance: 100mΩ Max. (initial)
- Dielectric_Withstanding_Voltage: 500V AC for one minute
- Insulation_Resistance: 100mΩ Min. (measured by 500V DC)
- Panel_Thickness_Max: 3.5mm
- Material_Housing: PPE
- Material_Gasket: EPDM
- Material_Ground: C5210-EH, T = 0.25mm
- Ground_Plating: Nickel plating 60µ inches
Buy the 2TJ3003-W05100 MULTICOMP PRO RJ45 CAT5E STP Jack | myMectronic
Purchase the MULTICOMP PRO 2TJ3003-W05100 RJ45 connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2TJ3003W05100?
You can click on the BUY or RFQ button to purchase 2TJ3003W05100 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2TJ3003W05100?
You can download the 2TJ3003W05100 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2TJ3003W05100?
MULTICOMP PRO
