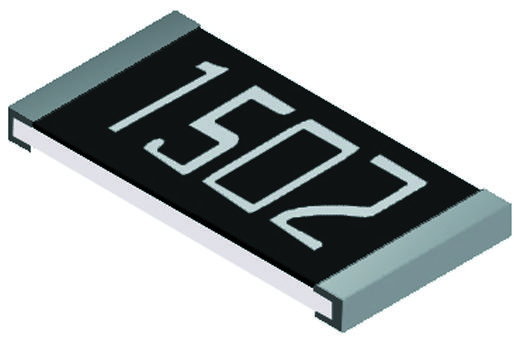

MULTICOMP PRO MCTF0805BTC1000 Thin Film Resistor
The MCTF series thin film NiCr passivated resistor features a wide resistance value range with very tight tolerances, from ±0.01% up to 1%. It is part of the Multicomp Pro product line, rated highly for quality and reliability. The component comes with a 12-month limited warranty. Designed for precision applications, this resistor offers excellent performance in a compact form factor, making it suitable for testing, measurement, medical, and communication equipment with tight TCR and resistance specifications.
MULTICOMP PRO MCTF0805BTC1000 Thin Film Resistor Specifications:
- Resistance Range: 4.70-1MQ
- Tolerance: 0.01% | 0.05% | 0.1% | 0.25% | 0.5%
- TCR: +5PPM/°C (typical)
- Power Rating at 70°C: 1/10W
- Max Operating Voltage: 100V
- Overload Voltage: 200V
- Temperature Range: -55°C to +155°C
- Construction: Alumina substrate, NiCr resistor layer, epoxy overcoat
- Dimensions (mm): Length 2.4, Width 1.2, Thickness 0.15
- RoHS Compliant
- Marking: Z 4992
Buy the Multicomp Series Thin Film NiCr Resistor: MCTF0805BTC1000
Purchase the Multicomp Series Thin Film NiCr Resistor online today and enjoy superior performance for critical measurement and precision applications. This resistor offers exceptionally tight tolerance as low as 0.01%, high stability with a TCR of just +5PPM/°C, and a broad resistance range from 4.70 ohms to 1 megaohm. Its compact design and RoHS compliance make it ideal for medical devices, communication modules, testing equipment, and automatic controllers. Get fast delivery and guaranteed quality when you buy online now.
Buy Multicomp Series Thin Film NiCr Resistor now and experience unmatched precision, reliability, and performance for your high-accuracy electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTF0805BTC1000?
You can click on the BUY or RFQ button to purchase MCTF0805BTC1000 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTF0805BTC1000?
You can download the MCTF0805BTC1000 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTF0805BTC1000?
MULTICOMP PRO
