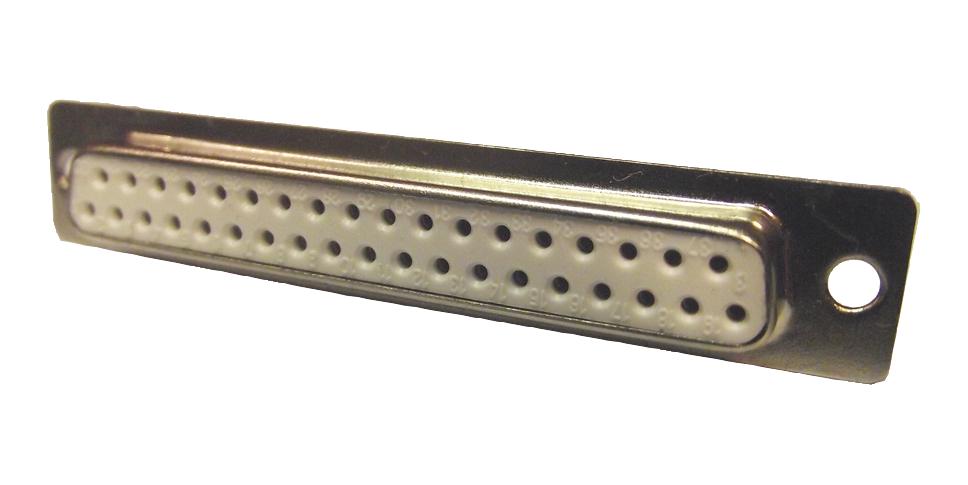

MULTICOMP PRO 550137SA02F1 D-Sub Female Connector
The 37-way 3A standard D-subminiature receptacle features gold-plated nickel undercoated copper alloy stamped contacts. This female connector from the 5501 series is equipped with a PBT UL94V-0 insulator and solder termination. It offers a maximum contact resistance of 30 milliohms, a minimum insulation resistance of 5000 megaohms, and a dielectric withstanding voltage of at least 1000 VAC for one minute. The operating temperature range spans from -40°C to 85°C, making it suitable for various applications. Multicomp Pro products, including this connector, are rated 4.6 out of 5 stars, with a 12-month limited warranty.
MULTICOMP PRO 550137SA02F1 D-Sub Female Connector Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 30mΩ Max
- Insulation Resistance: 5000MΩ Min
- Withstanding Voltage: 1000V AC/1 Minute
- Operating Temperature: -40°C to +85°C
- Insulator Material: PBT UL94V-0
- Contact Material: Copper alloy Nickel under coated, gold-plated
- Dimensions (A, B, C, D, E): vary per series (16.33mm to 54.84mm length, 7.9mm to 10.74mm diameter)
- Material: Nickel-plated metal shell, tin-plated rear shell
- RoHS Compliant: Yes
- Lead-Free: Yes
Buy the Multicomp 550137SA02F1 – Reliable D-Sub Female Connector for Industrial Applications
Enhance your electronic or industrial systems with the high-reliability D-Sub Female Connector from Multicomp. Featuring gold-plated contacts and robust PBT insulator, this connector supports a 3A current, up to 250V, and operates safely from -40°C to 85°C. Its solder termination ensures secure, durable connections ideal for various applications. With minimal contact resistance and excellent insulation resistance, it guarantees performance and longevity. Purchase online today to benefit from fast delivery, reliable quality, and a product designed to meet your professional standards.
Order your Multicomp Series550137SA02F1 high-quality solder D-sub female connector today and ensure dependable connections for your electronic or industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 550137SA02F1?
You can click on the BUY or RFQ button to purchase 550137SA02F1 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 550137SA02F1?
You can download the 550137SA02F1 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 550137SA02F1?
MULTICOMP PRO
