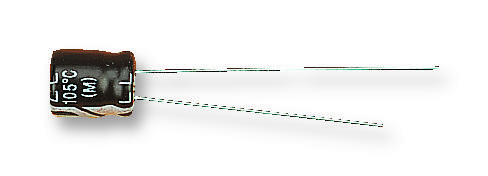

MULTICOMP PRO MCMHR25V107M8X7 Electrolytic Capacitor
The MCMHR Series electrolytic capacitor offers high capacitance in a compact, short-body design, ideal for high-density electronics such as office machines, audio devices, and miniaturized systems. Operating from -40°C to +105°C with voltage ratings from 6.3V to 683V, it features a capacitance range of 0.1pF to 470uF, with tolerance of +20%. It withstands high-temperature loading, maintains performance after storage, and is solvent-proof for circuit-board cleaning, making it suitable for demanding electronic applications.
MULTICOMP PRO MCMHR25V107M8X7 Electrolytic Capacitor Specifications:
- Operating Temperature Range: -40°C to +105°C
- Rated Working Voltage Range: 6.3V DC to 683V DC
- Capacitance Range: 0.1pF to 470uF
- Capacitance Tolerance: +20% (at+20°C,120 Hz)
- Leakage Current: | = 0.01CV or 3 (uA) after two minutes
- Dissipation Factor (Tan 8): Max. 0.24 at 63V, decreasing with voltage
- High Temperature Loading: Meets leakage and capacitance change limits after 1,000 hours at +105°C
- Shelf Life: Post 500 hours at +105°C storage, performs within initial limits
- Solvent Proof: Resistant to circuit-board cleaning in Freon TE, TES at 40°C, including ultrasonic and steam cleaning
Buy the multicomp Series MCMHR 25V107 Microfarad Capacitor: MCMHR25V107M8X7
Elevate your electronic projects with the highly reliable multicomp Series electrolytic capacitor. Designed for high-density and demanding environments, this capacitor with a capacitance of 100uF at 10V offers exceptional performance, durability, and temperature resilience from -40°C to +105°C. Its compact size and solvent-proof feature make it perfect for efficient circuit design, miniaturized devices, and high-temperature applications. Order online today to ensure your electronics operate smoothly with this high-quality, long-lasting capacitor.
Get multicomp Series MCMHR25V107M8X7 capacitor today—built for high-density, long-lasting electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCMHR25V107M8X7?
You can click on the BUY or RFQ button to purchase MCMHR25V107M8X7 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMHR25V107M8X7?
You can download the MCMHR25V107M8X7 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCMHR25V107M8X7?
MULTICOMP PRO
