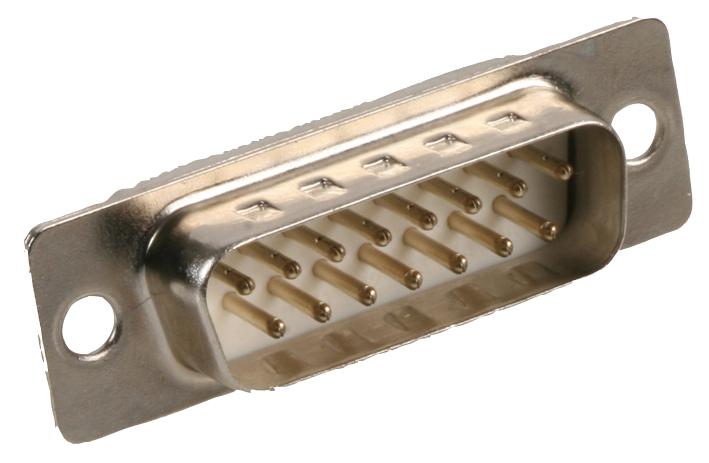

MULTICOMP PRO 550215PA01F1 D-Sub Connector
The 5502-15PA-01-F1 is a 15-pin male D-subminiature connector with gold-plated brass contacts, suitable for PCB mounting. It features a PBT insulator reinforced with 30% glass fiber and uses solder termination. This connector is designed to withstand a maximum contact resistance of 5 milliohms, minimum insulation resistance of 1000 megaohms, and a dielectric withstanding voltage of at least 1000 VAC for one minute. It operates within a temperature range of -40°C to 100°C. Manufactured as part of the 5502 series, it offers reliable electrical performance for various applications.
MULTICOMP PRO 550215PA01F1 D-Sub Connector Specifications:
- Voltage Rating: 350V AC
- Current Rating: 25A
- Dielectric Withstanding Voltage: 500V AC for 1 minute
- Insulation Resistance: Over 1,000 megaohms
- Contact Resistance: 5 milliohms maximum at 1A
- Operating Temperature: -40°C to +100°C
- Insulator Material: PBT + 30% glass fiber
- Pin Contacts: Brass gold plated
- Shell Material: Steel, SPCC nickel plated or tin plated
- Number of Ways: 15
- Dimensions: Lengths vary with model, 33.32 mm B, 39.14 mm C, 8.38 mm D, 125 mm E
- Type: Plug and socket combination
- Series: 5502
Buy the Multicomp Pro 5502-15PA-01-F1 – Reliable D-Sub PCB Connector for Industrial Applications
Purchase the D-Sub Connector online today for reliable PCB mounting and industrial-grade electrical connections. Featuring gold-plated brass contacts, high insulation resistance, and a robust PBT insulator, this connector ensures long-lasting performance within industrial environments. Suitable for applications requiring a dielectric withstand of 500V AC for 1 minute and operating seamlessly between -40°C and 100°C, it is ideal for electronics, automation, and manufacturing industries. Order now to ensure quality and durability in your projects, with fast delivery and excellent customer support.
Buy Multicomp Pro 5502-15PA-01-F1 now and experience unmatched reliability and performance in PCB connections and industrial electronics.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 550215PA01F1?
You can click on the BUY or RFQ button to purchase 550215PA01F1 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 550215PA01F1?
You can download the 550215PA01F1 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 550215PA01F1?
MULTICOMP PRO
