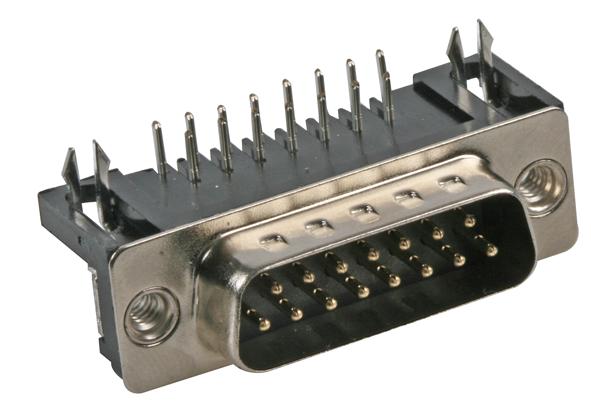

MULTICOMP PRO 5504F115P0203F1 D-Sub Connector
The 5504F1-15P-02-03-F1 is a 15-way, 5A right-angle D-subminiature male connector designed for PCB mounting applications. Constructed with copper alloy contacts with selective gold plating and nickel undercoating, the connector ensures high durability and reliable electrical performance. It features a black high-temperature plastic insulator made from UL94V-0 rated PBT with 30% glass reinforcement, and utilizes solder termination for secure mounting. Providing a contact resistance of 30mΩ, insulation resistance of 1000 MΩ, and withstand voltage of 1000 VAC for 1 minute, it operates reliably from -55°C to 105°C, suited for demanding electronic assemblies requiring durable and high-performance connections.
MULTICOMP PRO 5504F115P0203F1 D-Sub Connector Specifications:
- Number of positions: 15
- Current Rating: 5A
- Voltage Rating: 1000V AC for 1 minute
- Contact Resistance: 30mΩ max
- Insulation Resistance: 1000 MΩ min
- Temperature Range: -55°C to +105°C
- Insulator Material: High-temp plastic, UL94V-0, PBT with 30% glass reinforcement
- Contact Material: Copper alloy, nickel undercoated, gold plated
- Shell Material: Metal, tin plated
- Termination: Solder
- Footprint: 8.08mm
- Dimensions (mm): Length includes A, B, C values 55.42, 63.5, 69.32 respectively for 37 positions
- RoHS Compliant: Yes
Buy the multicomp Series 5504F1 15-Pin Right Angle D-Sub Connector: 5504F115P0203F1
Discover the high-quality 5504F1-15P-02-03-F1 right-angle PCB mount D-Sub connector, designed for robust electrical connections. Featuring gold-plated copper alloy contacts, UL94V-0 rated high-temperature plastic insulator, and solder terminals, it ensures long-lasting performance in demanding environments. With a contact resistance of 30mΩ, insulation resistance exceeding 1000MΩ, and a withstand voltage of 1000VAC for one minute, it operates reliably from -55°C to 105°C. Ideal for precise, stable, and durable PCB connections across various electronic assemblies.
Order your multicomp Series 5504F1 15-Pin Right Angle D-Sub Connector today and give your electronic projects the dependable and durable connections they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 5504F115P0203F1?
You can click on the BUY or RFQ button to purchase 5504F115P0203F1 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 5504F115P0203F1?
You can download the 5504F115P0203F1 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 5504F115P0203F1?
MULTICOMP PRO
