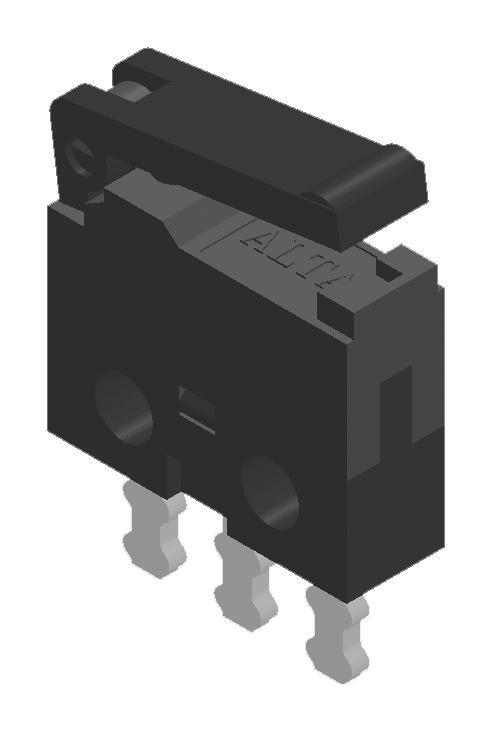

MULTICOMP PRO MP000794 Hinge Lever Microswitch
These through hole snap action microswitches offer reliable operation with a contact rating of 0.5A at 30V DC, suitable for small electronic and industrial applications such as mapping devices, portable audio equipment, and office automation. They feature multiple circuit options including SPDT, SPST-NC, and SPST-NO, with excellent durability of up to 100,000 mechanical cycles and 50,000 electrical cycles. Designed for RoHS compliance, they operate efficiently within temperatures from -40°C to +85°C, ensuring consistent performance in various environments. Compact, durable, and versatile, these switches are essential control components for precise switching needs.
MULTICOMP PRO MP000794 Hinge Lever Microswitch Specifications:
- Contact Rating: 0.5A, 30V DC
- Mechanical Durability: 100,000 cycles (60 operations/min)
- Electrical Durability: 50,000 cycles (20 operations/min)
- Contact Resistance: > 100mΩ max
- Insulation Resistance: 100MO min at 500V DC
- Dielectric Strength: 250V AC for 1 min between terminals and ground
- Operating Temperature: -40°C to +85°C
- Operating Force: 0.5N Max
- Release Force: 0.03N Min
- Over Travel: 0.3mm Min
- Movement Differential: 0.7mm Max
- Operating Position: 6.7mm +0.5mm
- Free Position: 8mm Max
- Pretravel: 1.8mm Max
- Terminal Type: Uneven Pitch, Short and Long, Left and Right Bend
- Part Numbers include MP000794, MP000793, MP000799, MP000798, MP000795, MP000800, MP000805, MP000806
Buy the Buy Multicomp Microswitch Part Number MP000794 Online
Order the versatile and durable Hinge Lever Microswitch from Multicomp online today. With a contact rating of 0.5A at 30V DC and up to 100,000 mechanical cycles, these switches are perfect for precise control in mapping devices, audio equipment, and office automation systems. Their RoHS compliance ensures environmentally friendly operation. Compact and reliable, they withstand temperatures from -40°C to +85°C, making them ideal for diverse industrial and electronic applications. Purchase now for quick delivery and assured quality.
Buy Multicomp MP000794 now and experience unmatched reliability and performance in control and automation applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000794?
You can click on the BUY or RFQ button to purchase MP000794 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000794?
You can download the MP000794 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000794?
MULTICOMP PRO
