MULTICOMP PRO 5504F125S0203F1 D-Sub Connector
The 5504F1-25S-02-03-F1 is a 25-position right-angle D-sub connector with gold-plated brass contacts ensuring reliable electrical performance. Its durable nickel-plated carbon steel shell provides mechanical protection, while the black glass-filled thermoplastic insulator offers insulation and thermal stability. Designed for solder termination, it supports a current rating of 5A and a voltage of 250VAC, with contact resistance of 20 milliohms, insulation resistance of 1000 megaohms, and dielectric withstand voltage of 1000VAC for one minute. Ideal for electronic assemblies requiring durability, precise signal transmission, and robust construction across industrial and communication equipment.
MULTICOMP PRO 5504F125S0203F1 D-Sub Connector Specifications:
- Material: Insulator — Glass-filled Thermoplastic, Contact — Brass (Pin), Phosphor Bronze (Socket), Metal Shell — Carbon Steel
- Shell Finish: Nickel Plated with optional Yellow Zinc Chromate Coating or Tin/Lead Plated
- Contact Finish: Mating Area — Gold Plated over Nickel, Termination Area — Tin/Lead over Nickel
- Electrical: Contact Resistance — 20 milliohms, Insulation Resistance — 1000 megaohms at 500V DC, Dielectric Withstanding Voltage — 1000VAC for 1 minute, Current Rating — 5A per contact, Voltage Rating — 250VAC
- Mechanical: Contact Insertion Force — max 540 grams, Withdrawal Force — min 60 grams, Durability — 125 cycles at 15K gold, 250 cycles at 30K gold
- Positions: 25, Dimensions: 53mm x 47.04mm x 38.3mm, Suitable for PCB mounting, Gold-plated contacts for enhanced connectivity, Suitable for industrial electronic applications

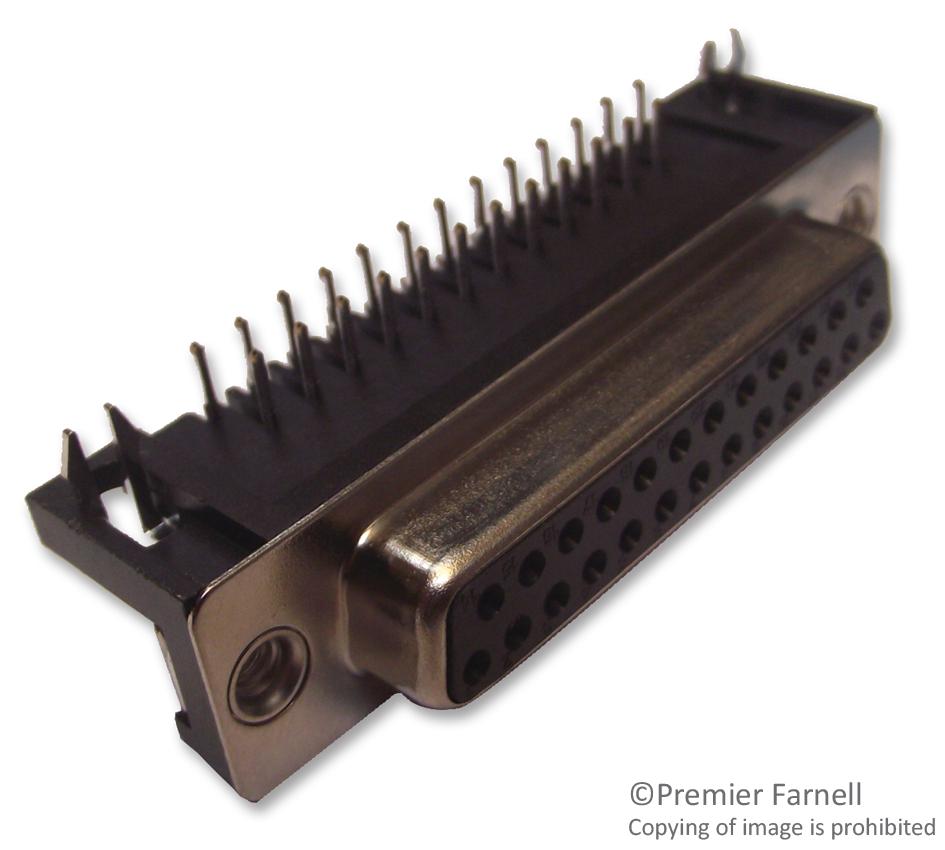

Buy the Buy multicomp Right Angle PCB Mount D-Sub Connector Part Number 5504F1-25S-02-03-F1 Online
Experience the ease of online shopping with the multicomp 5504F1-25S-02-03-F1. This high-quality 25-position right-angle D-sub connector features gold-plated brass contacts for dependable electrical connections, a sturdy nickel-plated carbon steel shell for durability, and a thermoplastic insulator for insulation and thermal stability. Its solder termination and rated 5A/250VAC support make it ideal for a wide range of electronic and industrial applications. Purchase securely online today and enjoy fast delivery and reliable performance for your electronics projects.
Buy multicomp 5504F1-25S-02-03-F1 now and experience unmatched durability and reliable connections for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 5504F125S0203F1?
You can click on the BUY or RFQ button to purchase 5504F125S0203F1 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 5504F125S0203F1?
You can download the 5504F125S0203F1 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 5504F125S0203F1?
MULTICOMP PRO
