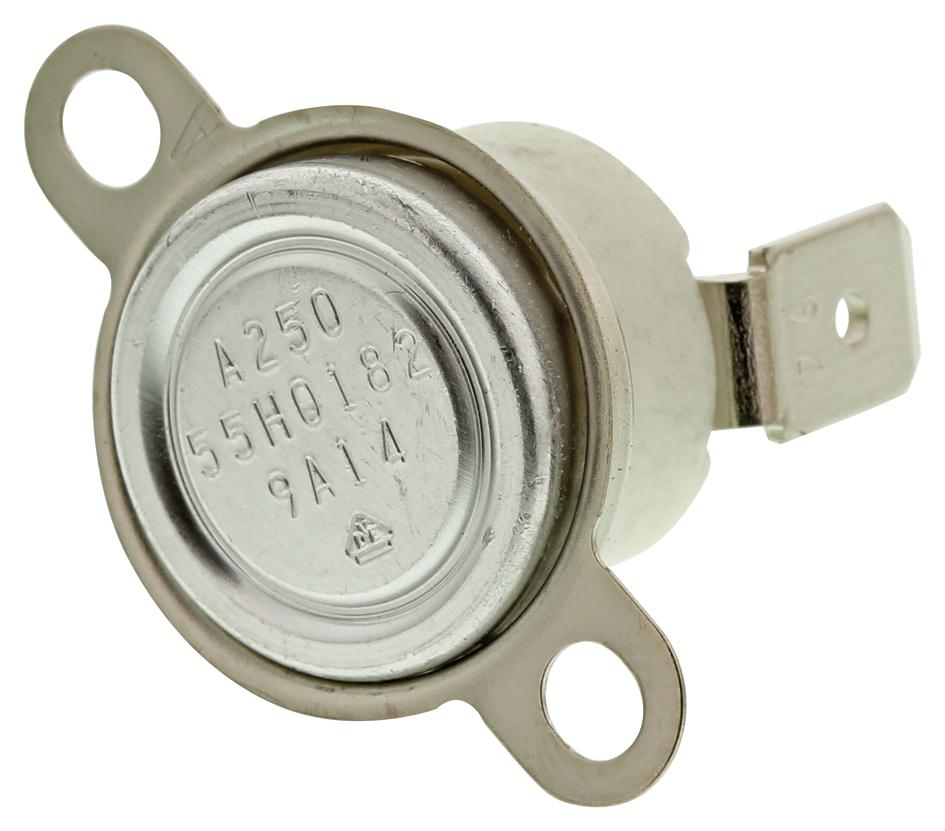

MULTICOMP PRO 55H12T944250200 Disc Type Thermostat
The MULTICOMP PRO 55H12T944(250/200) is a 1/2” disc type thermostat designed for applications requiring temperature control and automatic reset. It operates with SPST contacts, opening on temperature rise and closing on temperature fall. The thermostat is rated for 7A/250V AC and is constructed with materials including aluminum, copper, stainless steel, ceramic, nickel alloy, steel, and silver contacts. It meets DIN EN 60730-1, -2-9 standards and is suitable for various industrial and commercial applications where reliable temperature regulation is critical.
MULTICOMP PRO 55H12T944250200 Disc Type Thermostat Specifications:
- Operation: SPST Automatic reset
- Electrical_Rating: 7A / 250V AC
- Calibration_Method: Hot and cold air circulation system
- Temperature_Rating: Operating temperature +260°C (Max.)
- Insulation_Resistance: Not less than 1,000MΩ / DC500V
- Dielectric_Strength: Not less than 1,500V AC / 1min. or 1,800V AC / 1sec
- Materials_Cap: Aluminium, Copper, Stainless steel
- Materials_Case_Marm: Ceramic, Nickel alloy
- Materials_Terminals: Steel #250 Tab, Weld
- Materials_Bracket: Stainless steel
- Materials_Contacts: Silver
- Standard: DIN EN 60730-1, -2-9 VDE Licence No. 100896, 40004992
