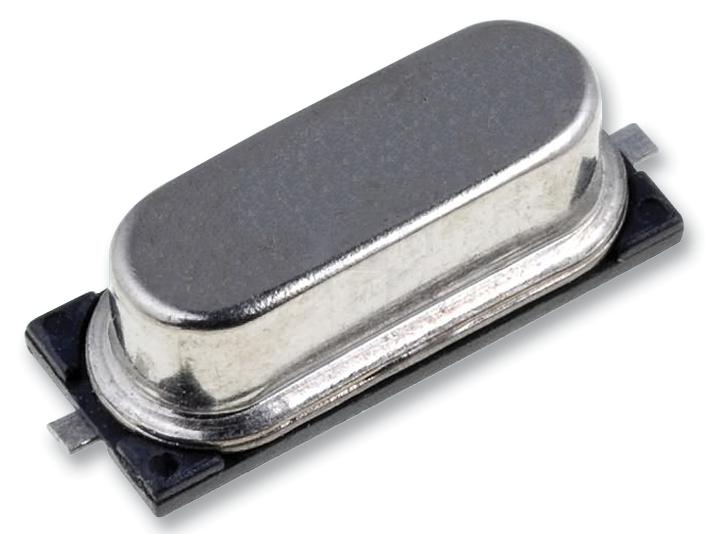

MULTICOMP-PRO HC49SM11059230506016ATF Quartz Crystal Oscillator
Multicomp Pro crystals are precision-engineered components suitable for clock and timing circuits in various electronic devices. They feature a low profile, surface-mount design with a maximum height of 4mm, making them ideal for applications with strict space constraints. These crystals operate within a frequency range of 10 to 70 MHz, offering excellent stability, low ESR, and reliable performance across temperature ranges from -20°C to +70°C. Designed with a stainless steel case, they ensure durability and resistance to vibration, making them perfect for industrial, communication, and microcontroller applications.
MULTICOMP-PRO HC49SM11059230506016ATF Quartz Crystal Oscillator Specifications:
- Nominal Frequency Range: 10 to 70 MHz
- Vibration Mode: Fundamental (AT), 3rd Overtone (AT)
- Frequency Tolerance at 25°C: +20, +30 or +50ppm (Options: +10ppm, +15ppm)
- Temperature Stability: +30 or +50 ppm
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -30°C to +80°C
- Load Capacitance: 8pF to 32pF or series
- Equivalent Series Resistance: As per ESR table
- Shunt Capacitance: 7pF max
- Drive Level: 100uW max
- Insulation Resistance: 500MQ minimum at 100V DC
- Aging: +5ppm per year
Buy the Multicomp Reliable Crystals for Industrial Applications
Purchase Multicomp Quartz Crystal Oscillators online today to enhance your electronic designs. These crystals feature a compact, low-profile 4mm height, operating within a frequency range of 10 to 70 MHz. They provide excellent stability, low ESR, and durability suitable for industrial, communication, and microcontroller projects. Supplied with a stainless steel case, these surface-mount crystals are ideal for space-restricted applications. Order now and ensure reliable timing in your electronic systems with high-performance, cost-effective components.
Order your Multicomp SeriesHC49SM crystal today and give your projects the dependable timing solutions they deserve with compact, space-efficient design.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO HC49SM11059230506016ATF?
You can click on the BUY or RFQ button to purchase HC49SM11059230506016ATF from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part HC49SM11059230506016ATF?
You can download the HC49SM11059230506016ATF datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of HC49SM11059230506016ATF?
MULTICOMP-PRO
