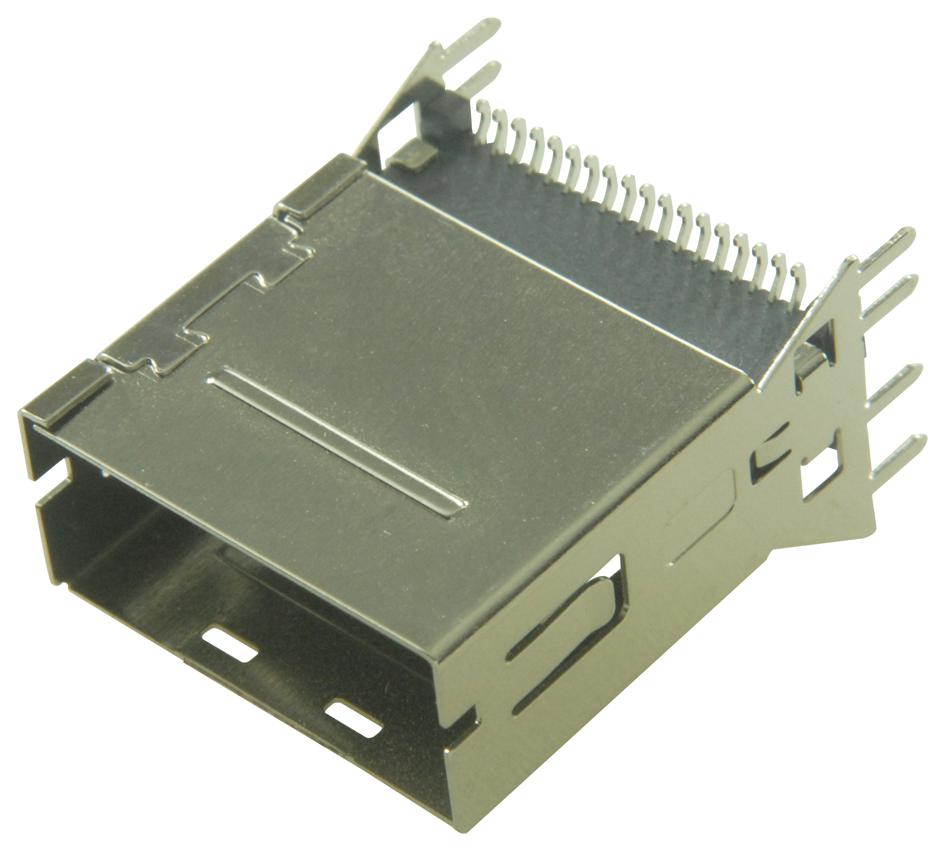

MULTICOMP PRO 61V036S321N0B Mini SAS Internal Connector
The MULTICOMP PRO 61V036S-321N0-B Mini SAS internal connector is a robust solution for connecting internal SAS devices. It utilizes a copper alloy shell with nickel plating and high-temperature thermoplastic housing, ensuring durability and performance. Gold-plated copper alloy contacts provide low contact resistance and reliable signal transfer. This connector is ideal for server, storage, and networking applications requiring high-speed data connectivity.
MULTICOMP PRO 61V036S321N0B Mini SAS Internal Connector Specifications:
- Current: 0.5A
- Voltage: 30V AC
- Contact Resistance: 80mΩ Max
- Mating Force: 55.5N Max
- Unmating Force: 49.0N Max
- Operating Temperature: -20°C to +85°C
- Shell Materials: Copper Alloy
- Shell Plating: Nickel
- Housing Materials: High Temperature Thermoplastic
- Contact Materials: Copper Alloy
- Contact Plating: Gold
- Description: Mini SAS Internal 36 Pin Vertical SMT Type
