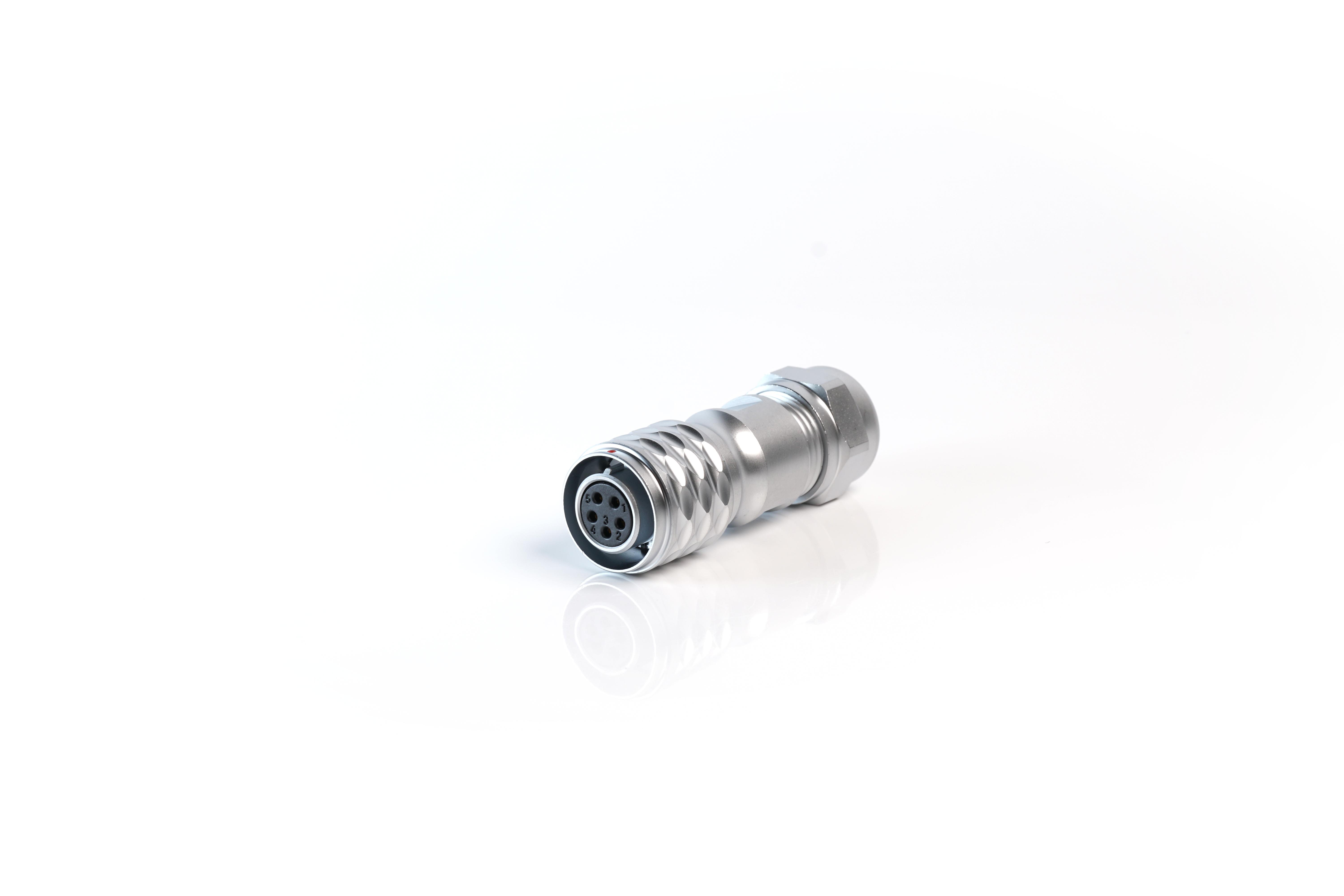

MULTICOMP PRO MP002737 Push-Pull Circular Connectors
The MP M12 push-pull connectors feature chrome-plated brass construction, ensuring durability and corrosion resistance in challenging environments. They are available in panel mount, cable mount, and inline configurations, enabling versatile cable-to-cable or cable-to-panel connections. The connectors employ a secure push-pull coupling mechanism for quick and reliable mating, with an IP67 weatherproof rating suitable for indoor and outdoor industrial uses. Designed with a 12mm diameter, they support solder terminations and come in variants for 2, 4, 5, and 7 poles, ideal for automation, process control, medical, and security applications.
MULTICOMP PRO MP002737 Push-Pull Circular Connectors Specifications:
- Material: Brass with chrome plating
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Coupling: Push-pull
- IP Rating: IP67
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Contact Resistance: 2.5 mΩ (contacts options vary)
- Rated Current: 13A (2-pole), 5A (4, 5, 7 poles)
- Rated Voltage: 250V (2-pole), 200V (4 poles), 180V (5 poles), 125V (7 poles)
- Test Voltage (AC, 1 min): 1500V (2-pole), 1500V (4 poles), 1000V (5, 7 poles)
- Number of Contacts: 2, 4, 5, 7
- Outer Diameter Range: 4mm to 6.5mm
- Panel Cutout: 3.5 mm max
- Connector Type: Cable mount, inline, rear panel mount
- Dimensions: Approximately 19mm diameter, various options for mounting
Buy the Buy Multicomp M12 Push-Pull Circular Connectors Part Number MP002737 Online
Purchase Multicomp M12 Push-Pull circular connectors online today for versatile, high-quality connections in industrial automation, process control, security, and outdoor applications. These durable connectors feature chrome-plated brass construction, IP67 weatherproofing, and a secure push-pull coupling mechanism for quick and reliable mating. Available in multiple configurations with 2, 4, 5, and 7 poles, supporting solder termination and rated for high current and voltage. Easy to install, withstand harsh environments, and ensure consistent connection performance, making them ideal for various industrial sectors.
Get Multicomp M12 Push-Pull connectors today—built for durability, quick coupling, and reliable performance in harsh environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002737?
You can click on the BUY or RFQ button to purchase MP002737 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002737?
You can download the MP002737 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002737?
MULTICOMP PRO
