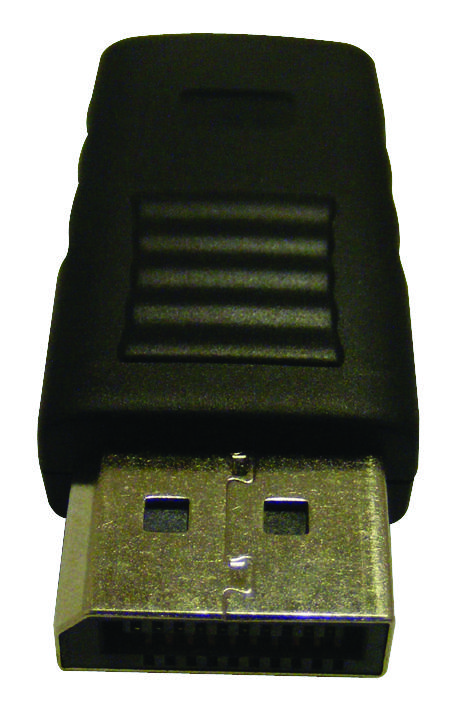

MULTICOMP PRO 62S020P301NE1B2P DisplayPort Connector
The 62S020P-301N-E1-B2P is a 20-position, dual-row, 0.5mm pitch DisplayPort plug with a black housing, designed for industrial, communication, and networking applications. It features gold-plated copper alloy contacts and solder termination, rated for 0.5A current and 40VAC voltage. With a contact resistance ca. 30 milliohms and minimum insulation resistance of 100 megaohms, it ensures reliable performance within -25°C to +85°C. Ideal for high-density connections, it offers robust electrical and mechanical characteristics for demanding electronic systems.
MULTICOMP PRO 62S020P301NE1B2P DisplayPort Connector Specifications:
- Connector Type: Display Port
- Series: 162
- Gender: Plug
- No. of Rows: 2
- No. of Contacts: 220
- Contact Termination: Solder
- Contact Plating: Gold
- Contact Material: Copper Alloy
- Lead Spacing: 0.5mm
- Material: Nickel Plated
- Current Rating: 0.5A
- Voltage Rating: 40V AC (rms)
- Withstanding Voltage: 500V AC for 1 minute
- Insulation Resistance: > 100MQ
- Max. Contact Resistance: 30mΩ
- Operating Temperature: -25°C to +85°C
- Dimensions: Length approximately 19.89mm, width 10.88mm, height 4.66mm, pitch 0.5mm
Buy the Multicomp Series 162 DisplayPort Plug: 62S020P301NE1B2P
Get the high-quality DisplayPort connector, 62S020P-301N-E1-B2P, from Multicomp Pro online today. Designed for robust industrial, networking, and communication systems, this 20-position dual-row plug features gold-plated copper alloy contacts, solder termination, and rated for 0.5A at 40VAC. Its compact dimensions and high insulation resistance ensure reliable, safe, and efficient connections in demanding environments. Purchase now to enhance your electronic projects with durable, high-performance plug connections, backed by quality assurance and fast delivery.
Order your Multicomp Series 162 DisplayPort plug, 62S020P301NE1B2P, today and equip your projects with reliable high-performance connectivity.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 62S020P301NE1B2P?
You can click on the BUY or RFQ button to purchase 62S020P301NE1B2P from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 62S020P301NE1B2P?
You can download the 62S020P301NE1B2P datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 62S020P301NE1B2P?
MULTICOMP PRO
