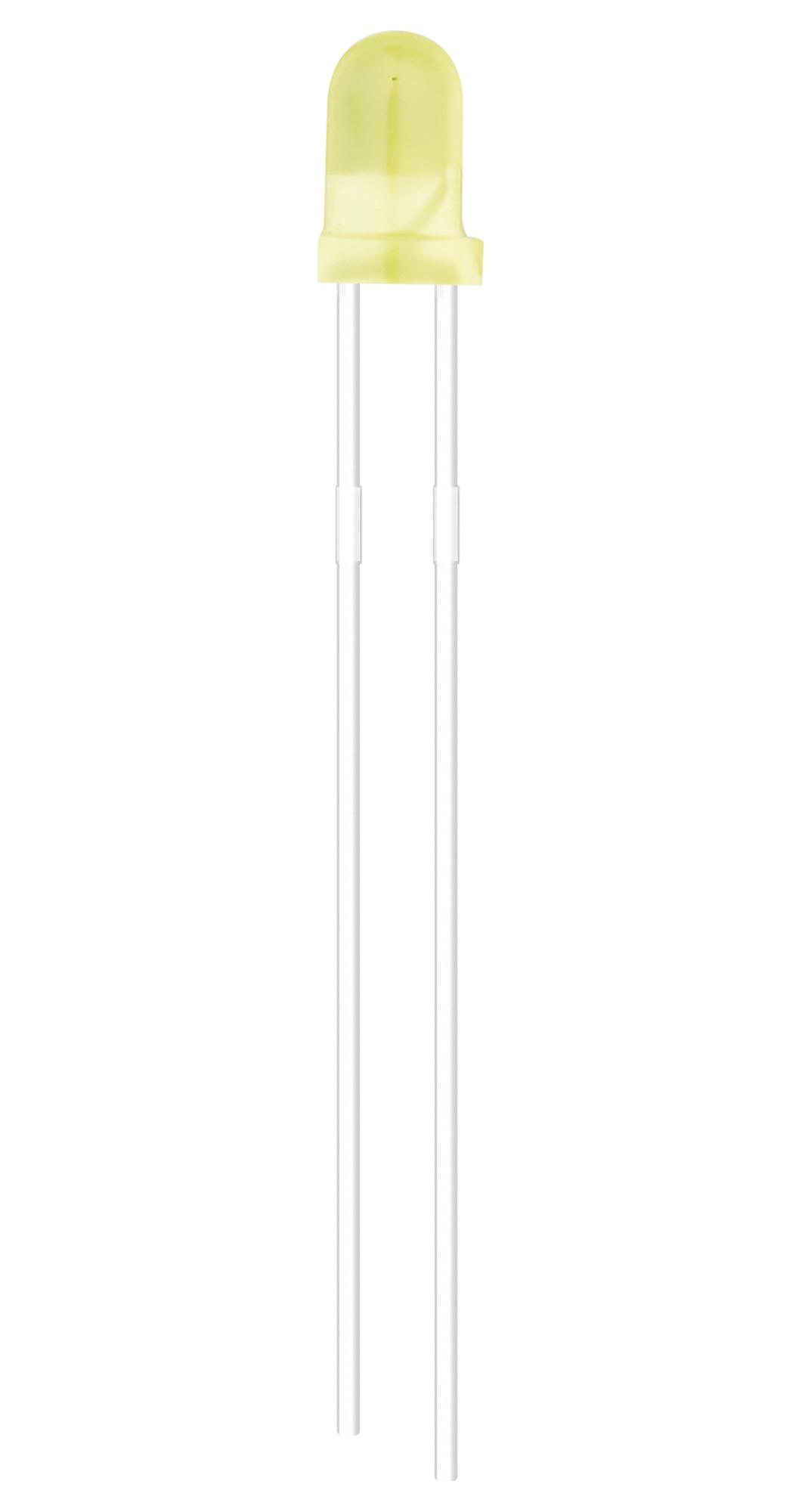

MULTICOMP PRO MP000448 Yellow LED Lamp
This 3mm round yellow LED lamp features a diffused lens with a viewing angle of 50 degrees and a peak wavelength of 587nm, making it ideal for indicator and display applications. It operates at a typical forward voltage of 2.1V and a recommended current of 20mA, with an intensity of up to 32 millicandelas. Crafted from GaAsP on GaP dice material, it is RoHS compliant and suitable for various electrical and optical uses. Its durable construction supports operating temperatures from -40°C to +85°C and features a lead soldering temperature of 260°C for 5 seconds.
MULTICOMP PRO MP000448 Yellow LED Lamp Specifications:
- Dice Material: GaAsP on GaP
- Emitted Colour: Yellow
- Lens Colour: Yellow Diffused
- Peak Wavelength: 587nm
- Viewing Angle: 50 Deg.
- Luminous Intensity: 32 millicandelas at 20mA
- Forward Voltage: 2.1V at 20mA
- Power Dissipation: 85 mW
- Peak Forward Current: 100 mA (Duty 1/10 at 1 kHz)
- Recommended Operating Current: 20 mA
- Reverse Voltage: 5 V
- Reverse Current: 210 µA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature Range: 260°C for 5 seconds
Buy the Buy multicomp LED Lamp Part Number MP000448 Online
Purchase the multicomp Yellow LED Lamp MP000448 online to enhance your electronic displays and indicator systems. This 3mm round LED features a diffused yellow lens with a 50° viewing angle and a peak wavelength of 587nm, offering bright and consistent illumination. Operating safely at 20mA with a maximum forward voltage of 2.6V, it is RoHS compliant and designed for long-lasting durability. Easy to solder with a maximum temperature of 260°C for 5 seconds, it is ideal for professional and hobbyist applications requiring high brightness and reliability.
Get multicomp MP000448 today—high-quality yellow indicator LED, designed for durability and reliable performance in various electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000448?
You can click on the BUY or RFQ button to purchase MP000448 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000448?
You can download the MP000448 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000448?
MULTICOMP PRO
