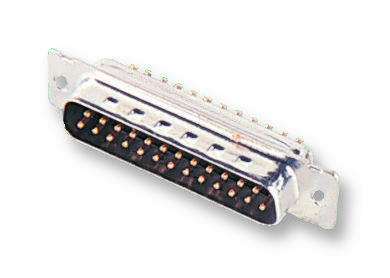

MULTICOMP PRO 698090 EMI/RFI Shielded D-Sub Connector
This EMI/RFI shielded D-Sub connector with solder bucket features tin and dimple shells, nickel-plated solder buckets, and gold-plated formed contacts. Made with glass-filled PBT insulators and steel tin-plated shells, it provides reliable electrical performance and durability. Designed for easy soldering, it offers a current rating of 5 Amps at 25°C, insulation resistance of at least 5000MΩ at 500V DC, and dielectric withstand voltage of AC 1000V for one minute. Suitable for applications needing EMI/RFI shielding, robust insulation, and high electrical connectivity, it is ideal for industrial, electronic, and communication equipment.
MULTICOMP PRO 698090 EMI/RFI Shielded D-Sub Connector Specifications:
- Current Rating: 5 Amps at 25°C
- Insulation Resistance: 5000MΩ minimum at 500V DC
- Dielectric Withstanding Voltage: AC 1000V minimum for 1 minute
- Contact Resistance: 15mΩ maximum in mated condition
- Operating Temperature: -55°C to +105°C
- Insulator Material: PBT with glass fiber reinforcement
- Contact Material: Brass with Gold plating over Nickel, Tin plated solder cup
- Shell Material: Steel, Tin plated
- Working Voltage: 250Vrms
- Dimensions are specified per part number with various sizes, e.g., length and width vary from approximately 8.31 mm to 63.05 mm depending on model
Buy the Multicomp Series EMI/RFI Shielded D-Sub Connector: 698090
Purchase the Multicomp Series EMI/RFI Shielded D-Sub connector online today. Featuring robust steel shells, gold-plated contacts, and glass-filled PBT insulators, it offers excellent EMI/RFI protection, high current capacity, and reliable insulation. Suitable for industrial and communication equipment, this connector ensures stable, noise-resistant connections in demanding environments. Its compact size and durable construction make it ideal for a variety of electronic applications requiring dependable signal integrity and shielding. Buy now to enhance your electronic assembly with quality components.
Order your Multicomp Series EMI/RFI Shielded D-Sub Connector today and ensure your electronic projects have reliable shielding and secure connections.
