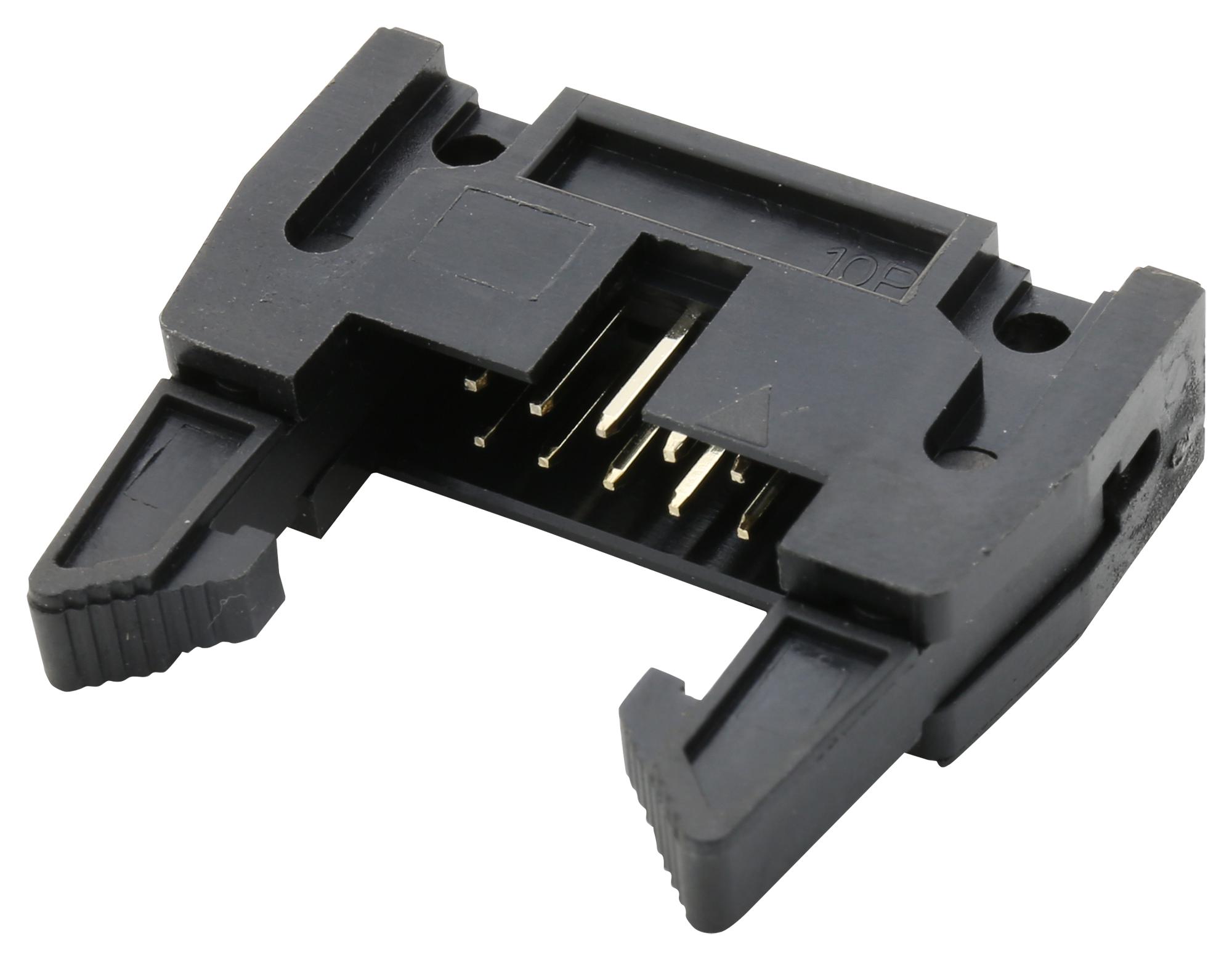

MULTICOMP PRO MC25410LLRADIP Shrouded Header
This 2.54mm shrouded header with ejector is a high-quality, double row, right angle through-hole connector ideal for PCB applications. It features a durable plastic housing made of UL94V-0 rated PBT, with copper alloy contacts that are gold plated for enhanced corrosion resistance. Designed for reliable electrical connections, it has a current rating of 8A AC/DC and a voltage rating of 250V AC/DC. The header supports operating temperatures from -40°C to +105°C, ensuring dependable performance in various environmental conditions. Suitable for a wide range of electronic assembly and industrial equipment.
MULTICOMP PRO MC25410LLRADIP Shrouded Header Specifications:
- Current Rating: 8A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Material: PBT (UL94V-0)
- Contact Material: Copper Alloy
- Plating: Gold
- Dimensions: Vary by model, e.g., 32.2mm x 10.16mm for 10 POS, 37.28mm x 15.24mm for 14 POS, up to 100.78mm x 78.74mm for 64 POS
- Type: Double row, right angle, through-hole connector with ejector
- Color: Black
- Connector Pitch: 2.54mm
Buy the Buy Multicomp Pro Shrouded Header Part Number MC25410LLRADIP Online
Experience secure, high-quality electronic connections with the Multicomp Pro Shrouded Header featuring 2.54mm pitch, durable gold-plated contacts, and a robust plastic housing. Easy to install, these headers support high current and voltage ratings, suitable for industrial equipment and PCB assemblies. Whether you need short or long ejector options, these connectors ensure dependable performance in demanding environments. Purchase online now to enhance your assembly with this reliable, RoHS-compliant connector that guarantees safety and longevity in your applications.
Get Multicomp Pro MC25410LLRADIP today—designed for reliable PCB connections with long-lasting durability and easy ejector removal.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC25410LLRADIP?
You can click on the BUY or RFQ button to purchase MC25410LLRADIP from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC25410LLRADIP?
You can download the MC25410LLRADIP datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC25410LLRADIP?
MULTICOMP PRO
