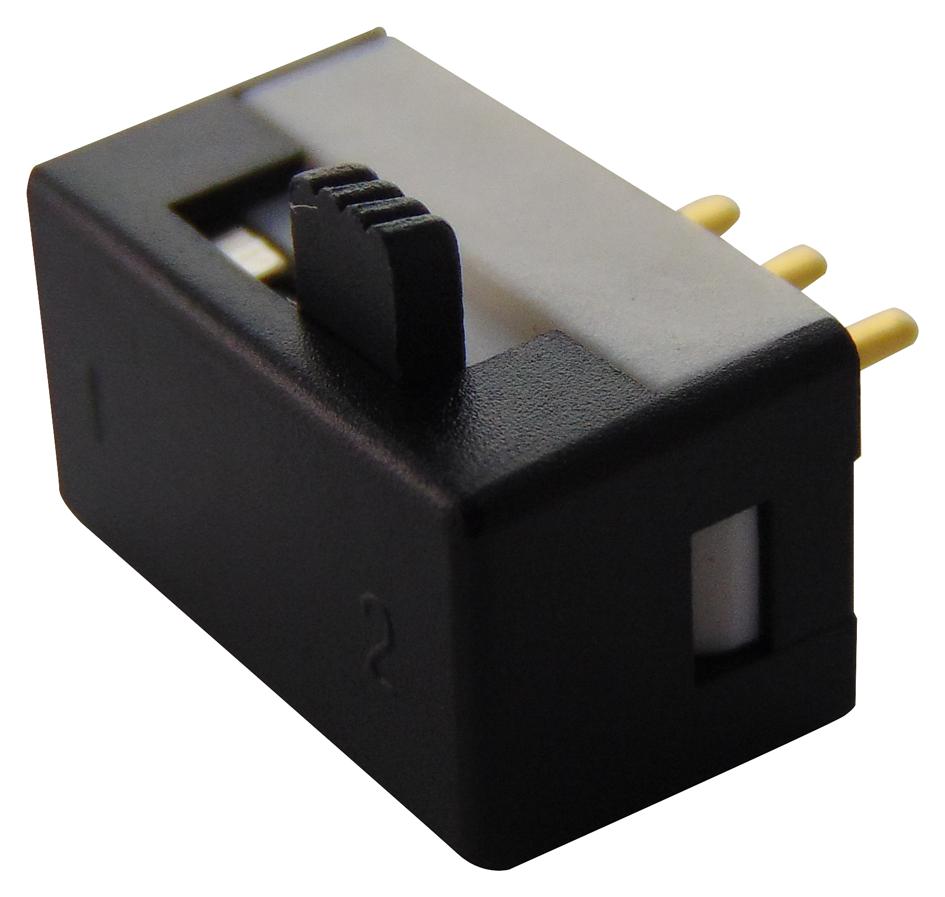

MULTICOMP PRO 6MS1S3M1RE Slide Switch SPDT
The MULTICOMP PRO 6MS1S3M1RE is a miniature slide switch ideal for applications requiring a compact and reliable switching solution. Constructed with nylon for the case, housing, and actuator, and featuring copper alloy contacts with gold plating, this switch ensures durability and excellent electrical performance. It's designed for easy integration into a wide range of electronic devices and control panels, offering a simple and effective way to manage power or signal routing. The switch's robust design and gold-plated contacts contribute to its long lifespan and reliable operation, making it suitable for both commercial and industrial applications.
MULTICOMP PRO 6MS1S3M1RE Slide Switch SPDT Specifications:
- Max. Contact Rating: 0.4 (VA) maximum at 20V maximum (AC or DC)
- Mechanical Life: 20,000 cycles
- Max. Initial Contact Resistance: 50mΩ
- Min. Insulation Resistance: 1,000MΩ
- Dielectric Strength: 1,000V RMS at sea level
- Operating Temperature: -40°C to +80°C
- Minimum Load: 10mA, 50mV
- Breaking Capacity: 100mA, 30V DC with resistive load
- Case Material: Nylon, white
- Housing Material: Nylon, black
- Actuator Material: Nylon, black
- Contacts / Terminals Material: Copper alloy, with gold plated
- Soldering Iron Temperature: 350°C approximately
- Soldering Time: 5 seconds
- Recommended Soldering Temperature: 260 ±5°C
- Soldering Duration: 5 ±1 seconds
- Pre-heat Temperature: 150°C
- Pre-heat Time: Minimum 120 seconds
- Soak Temperature: 180°C to 200°C
- Soak Time: Minimum 150 seconds
- Peak Temperature 1: 200°C to 235°C
- Peak Time 1: Minimum 30 seconds
- Peak Temperature 2: 235°C to 260°C
- Peak Time 2: Minimum 40 seconds
- Peak Temperature 3: 260°C
- Peak Time 3: Maximum 10 seconds
