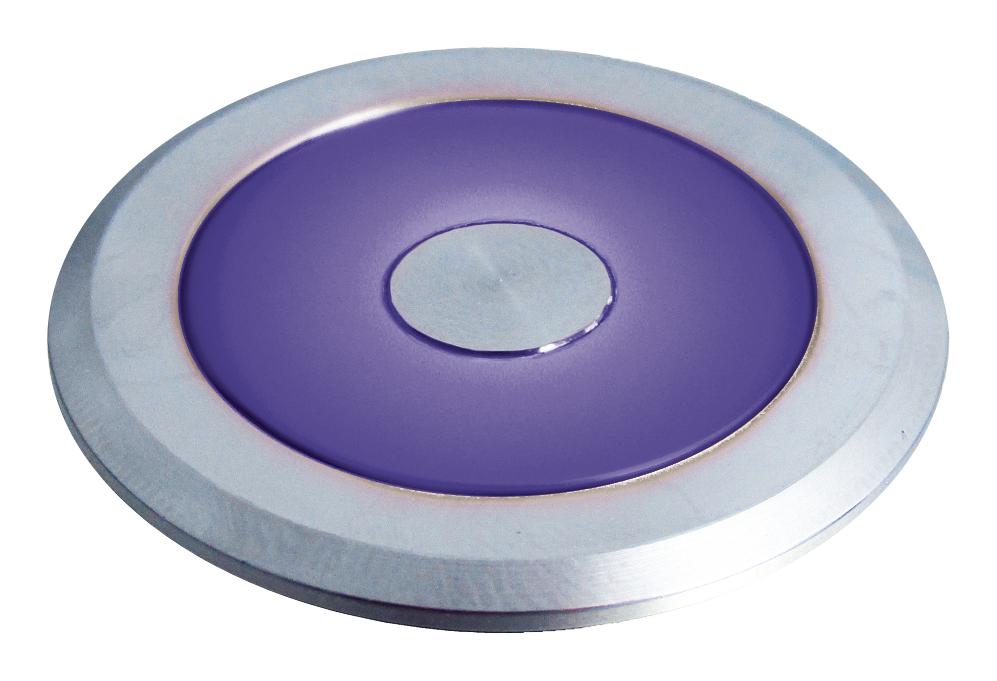

MULTICOMP PRO MC010986 Illuminated Vandal Switch
The Flush Illuminated Vandal Resistant Switch is a durable, metal-mounted switch designed for demanding industrial environments. It features an illuminated LED indicator in various colors, rated for 600V and 210A, with a IP65 protection rating. Its robust construction includes silver contacts and dielectric strength up to 2,000V AC between live parts. Suitable for mounting in 22mm or 30mm holes, it withstands vibration and shocks, with a mechanical lifespan of up to 1 million cycles. Ideal for control panels requiring high durability and clear LED signaling.
MULTICOMP PRO MC010986 Illuminated Vandal Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green, Red, Blue
- Material / Finish: Aluminium
- Dielectric Strength: 2000V AC between live parts and ground
- Insulation Resistance: 100MΩ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C
- Operating Temperature: 1°C to 55°C (No freezing)
- Vibration Resistance: 5 to 55Hz, 0.5mm amplitude
- Shock Resistance: 1000 m/s² damage limit
- Mechanical Life: 1,000,000 cycles (momentary), 100,000 cycles (maintained)
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
- Mounting Hole: 22mm / 30mm
- Protection Rating: IP65, suitable for industrial environments
Buy the Buy Multicomp Pro Flush Illuminated Vandal Switch Part Number MC010986 Online
Purchase the highly durable, flush-mounted illuminated vandal resistant switch online for your industrial control needs. Featuring metal bezel and multiple LED color options, it ensures clear signaling and robust performance in harsh environments. Rated for 600V and 210A, with IP65 protection, it withstands vibration, shocks, and extreme temperatures. Its long mechanical and electrical lifespan makes it an essential control component for factories, plants, and automation systems. Buy now for reliable, top-quality industrial switching solutions that offer long-lasting durability and safety.
Get Multicomp Pro Flush Illuminated Vandal Switch MC010986 today—built for robustness, long-lasting durability, and reliable industrial control.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC010986?
You can click on the BUY or RFQ button to purchase MC010986 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC010986?
You can download the MC010986 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC010986?
MULTICOMP PRO
