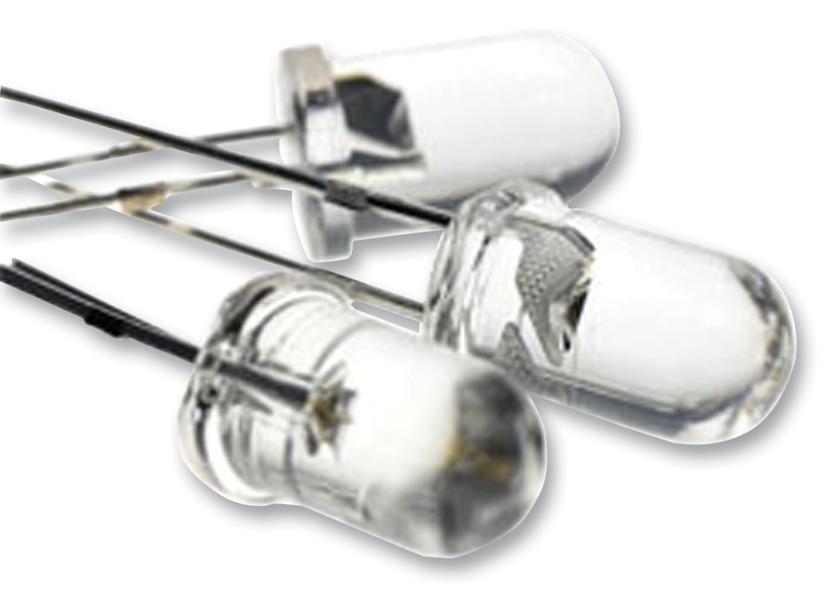

MULTICOMP PRO 7030090 Red LED Lamp
The 703-0090 is a 3mm diameter red round LED lamp featuring a red clear lens. Constructed with AlGaAs/GaAs chips and encapsulated in clear epoxy resin, it offers a luminous intensity of 100mcd, viewing angle of 35°, and a power dissipation of 66mW. This high-performance LED operates within a temperature range of -25°C to +85°C, with a forward voltage of 1.8 to 2.2V and peak wavelength of 660nm. Its compact design and reliable electrical characteristics make it ideal for indicator lights and display applications in various industrial settings.
MULTICOMP PRO 7030090 Red LED Lamp Specifications:
- Diameter: 3mm
- Color: Red
- Lens Material: Clear epoxy resin
- Chip Material: AlGaAs / GaAs
- Luminous Intensity: 100mcd
- Viewing Angle: 35°
- Peak Wavelength: 660 nm
- Forward Voltage: 1.8 - 2.2 V
- Power Dissipation: 66 mW
- Operating Temperature Range: -25°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Soldering Temperature (dip): 260°C for 5 sec
- Peak Current: 100 mA (1/10 duty cycle, 0.1 ms pulse)
Buy the Multicomp 703-0090 – Reliable Red LED Lamp for Industrial Applications
Enhance your electronic projects with the reliable 703-0090 red LED lamp. Its compact 3mm size, clear epoxy lens, and robust AlGaAs/GaAs chip ensure bright illumination and long-term durability. Ideal for indicator lights, display panels, and industrial applications, this LED offers a luminous intensity of 100mcd, a viewing angle of 35°, and a forward voltage of 1.8-2.2V. Easily soldered with a maximum temperature of 260°C, it’s the perfect component for professional and hobbyist electronics alike—order online for quick delivery and quality assurance.
Get Multicomp 703-0090 today—built for precision, long-lasting durability, and versatile indicator lighting solutions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 7030090?
You can click on the BUY or RFQ button to purchase 7030090 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 7030090?
You can download the 7030090 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 7030090?
MULTICOMP PRO
